Product Code: ZIP6

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 42
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Heavy duty cavity wall anchor for use in plasterboards, most hollow concrete blocks, cavity walls and ceilings. Pack includes both 40mm and 60mm screws for a wider variety of fixture thicknesses. NOTE: Nylon arms are for installation purposes only and once the fixing is in place, Zip-Fix becomes an all steel, non-flammable fixing.
• Drill Hole Dia. mm: 13.0
• Driver Bit Size: PZ3

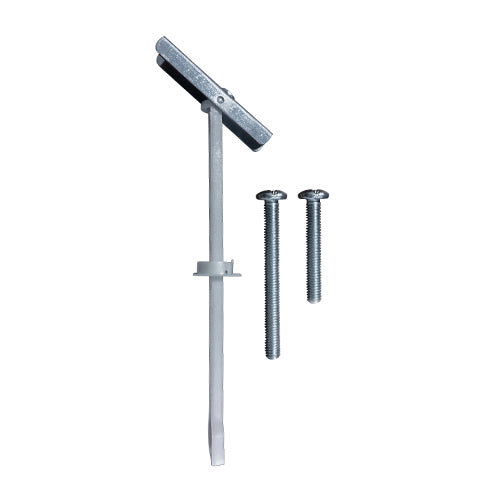

• Feature 1: Two sizes of zinc pan head machine screws (M6 x 40 and M6 x 60) for varying fixture thicknesses
• Feature 2: Rapid installation, just Zip & Fix
• Feature 3: Please note: The nylon arms are for installation purposes only. Once removed this fixing becomes all-metal and has an improved fire resistance
• Feature 4: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
• Finish: Zinc
• Fixture Hole Diameter mm: 7.0
• Head Type: Pan

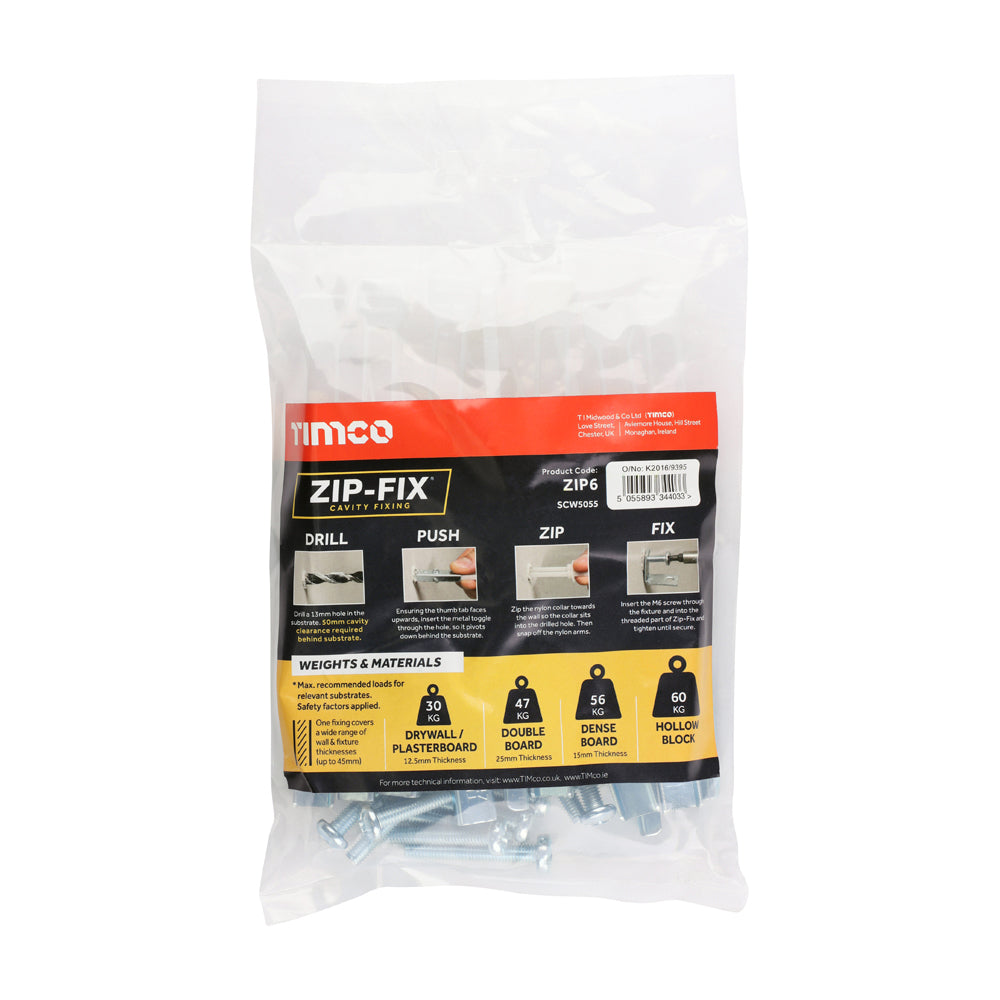

• Included Items: M6 x 40 Screws (Qty 10) ?M6 x 60 Screws (Qty 10)
• Material: Carbon Steel
• Max Fixture Thickness mm: 45
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 198 x 148 x 40
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Bag
• Pack Weight kg: 0.350
• Pallet Qty Packs: 1,260
• Product Code: ZIP6
• Recess Type: Pozi
• Screw Size mm: M6 x 40 & M6 x 60
• SKU Barcode: 5055893344033
• Substrates: Plasterboard, Block
• Thread Dia. mm: M6
• Thread Type: Metric
• Total Length mm: 147
