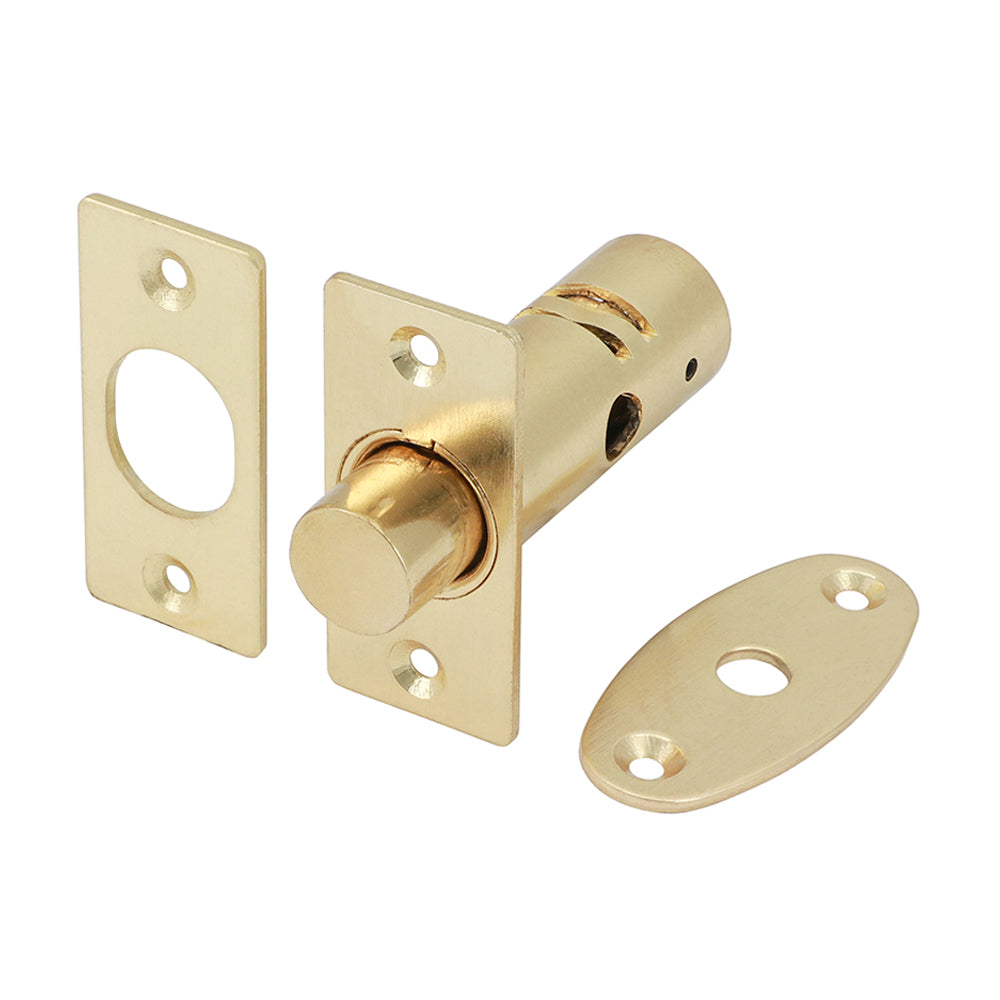

TIMCO Window Rack Bolts Electro Brass - 42mm

TIMCO Window Rack Bolts Electro Brass - 42mm

Product Code: 949101P

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 21
• Bolt Dia. mm: 13
• Bolt Throw mm: 11
• Brand: TIMCO
• Carton Qty Packs: 10
• Case Depth mm: 42
• Case Dia. mm: 16
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Window rack bolts are an ideal way to increase security on timber windows. They are morticed into the window and operated by a spline key that throws the bolt into the frame. For optimum security it is recommended that the bolts are fitted to the top and the bottom of the window.
• Faceplate Size H x W mm: 42 x 20
• Faceplate Type: Square
• Feature 1: Extra security
• Feature 2: 42mm length
• Feature 3: Used with spline key
• Feature 4: Fixings included
• Finish: Electro Brass
• Included Items: Key (Qty 1)
• Keep Size H x W mm: 42 x 20
• Material: Steel
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 6
• Pack Dimensions L x W x H mm: 159 x 87 x 24
• Pack Quantity: 2
• Pack Quantity Unit: Pieces
• Pack Type: TIMpac
• Pack Weight kg: 0.142
• Product Code: 949101P
• Screw Size imp.: 4 x 5/8
• Screw Size mm: 3.0 x 15
• SKU Barcode: 5056110885896
