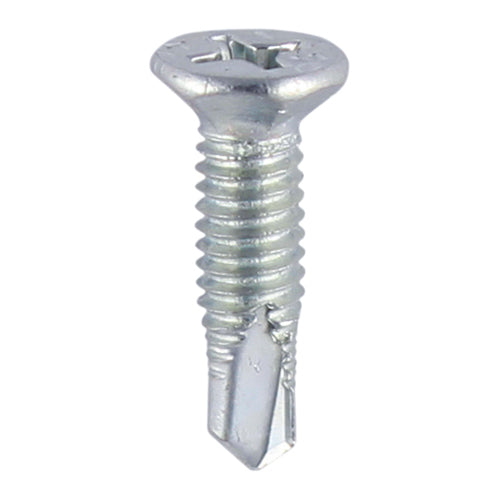

TIMCO Window Fabrication Screws Countersunk Facet PH Metric Thread Self-Drilling Point Zinc - M4 x 13

TIMCO Window Fabrication Screws Countersunk Facet PH Metric Thread Self-Drilling Point Zinc - M4 x 13

Product Code: 230Z

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines.
• Brand: TIMCO
• Carton Qty Packs: 15
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Frequently used with auto feed machines when ‘pinning’ steel reinforcement inside PVCu frames.
• Driver Bit Size: PH2
• Finish: Zinc
• Head Type: Countersunk Facet
• Length mm: 13
• Material: Carbon Steel
• Max Drilling Thickness mm: 2.5
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 135 x 90 x 60
• Pack Quantity: 1000
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.968
• Pallet Qty Packs: 540
• Point Type: Self-Drilling
• Product Code: 230Z
• Recess Type: Phillips
• Size mm: M4 x 13
• SKU Barcode: 5055017529124
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: M4
• Thread Type: Metric
