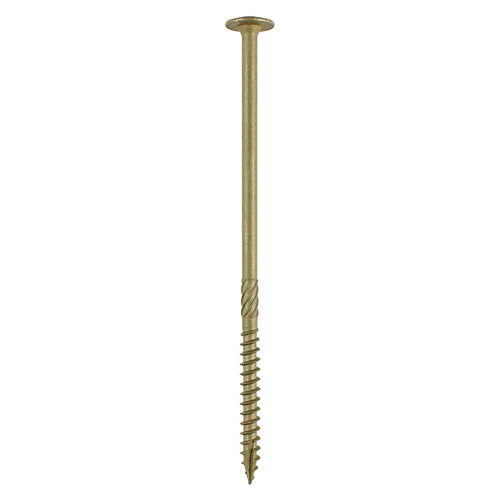

TIMCO Wafer Head Exterior Green Timber Screws - 6.7 x 150

TIMCO Wafer Head Exterior Green Timber Screws - 6.7 x 150

Product Code: 150INDEXWB

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 5
• CE Standard Web: BS EN 14592:2008
• Colour: Olive Green
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
• Diameter mm: 6.7
• Driver Bit Size: TX30
• Feature 1: Wafer head countersunk and TX30 recess
• Feature 2: Long lasting withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
• Feature 3: Helix shank for removing debris and to improve clamping
• Feature 4: 50° deep single thread to provide a secure fixing with high pull-out resistance
• Feature 5: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Feature 6: 25° sharp point and single lead for a fast start and improved thread acceptance
• Finish: Exterior (Green Organic)
• Fixed Washer Dia. mm: 12.00
• Head Dia. mm: 16.08
• Head Type: Wafer
• Included Items: TX30 S2 Bit (Qty 1)
• Inner Thread Dia. mm: 4.40
• Length mm: 150
• Lubrication: Wax
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 262 x 148 x 53
• Pack Quantity: 20
• Pack Quantity Unit: Pieces
• Pack Type: TIMbag
• Pack Weight kg: 0.518
• Pallet Qty Packs: 600
• Point Type: Single Slash
• Product Code: 150INDEXWB
• Recess Type: TX Drive
• Shank Type: Helix
• Size mm: 6.7 x 150
• SKU Barcode: 5055331824998
• Substrates: Hardwood, Softwood
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 6.7
• Thread Length mm: 52
• Thread Type: 50° Single Deep
