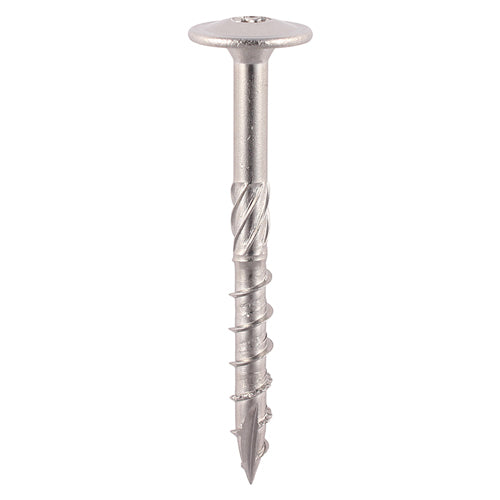

TIMCO Wafer Head A2 Stainless Steel Timber Screws - 8.0 x 125

TIMCO Wafer Head A2 Stainless Steel Timber Screws - 8.0 x 125

Product Code: 125INDEXWSST

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 33
• CE Standard Web: BS EN 14592:2008
• Colour: Silver
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
• Diameter mm: 8.0
• Driver Bit Size: TX40
• Feature 1: Wafer head countersunk and TX40 recess
• Feature 2: Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
• Feature 3: Helix shank for removing debris and to improve clamping
• Feature 4: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Feature 5: 25° sharp point and single lead for a fast start and improved thread acceptance
• Fixed Washer Dia. mm: 21.00
• Head Dia. mm: 20.84
• Head Type: Wafer
• Included Items: TX40 S2 Bit (Qty 1)
• Inner Thread Dia. mm: 5.60
• Length mm: 125
• Material: Austenitic Stainless Steel (A2-304)
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 58 x 58 x 138

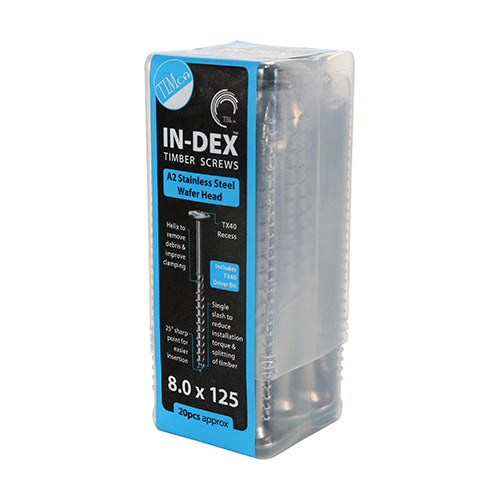

• Pack Quantity: 20
• Pack Quantity Unit: Pieces
• Pack Type: Tube
• Pack Weight kg: 0.682
• Pallet Qty Packs: 660
• Point Type: 25° Sharp with Single Slash
• Product Code: 125INDEXWSST
• Recess Type: TX Drive
• Shank Type: Helix
• Size mm: 8.0 x 125
• SKU Barcode: 5056110836294
• Substrates: Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar)
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 8.0
• Thread Length mm: 70
• Thread Type: Serrated
