TIMCO Twin-Threaded Round Head Silver Woodscrews - 10 x 3

TIMCO Twin-Threaded Round Head Silver Woodscrews - 10 x 3

Product Code: 00103CRWZ

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 16
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 1 - Clean, dry & low humidity environments

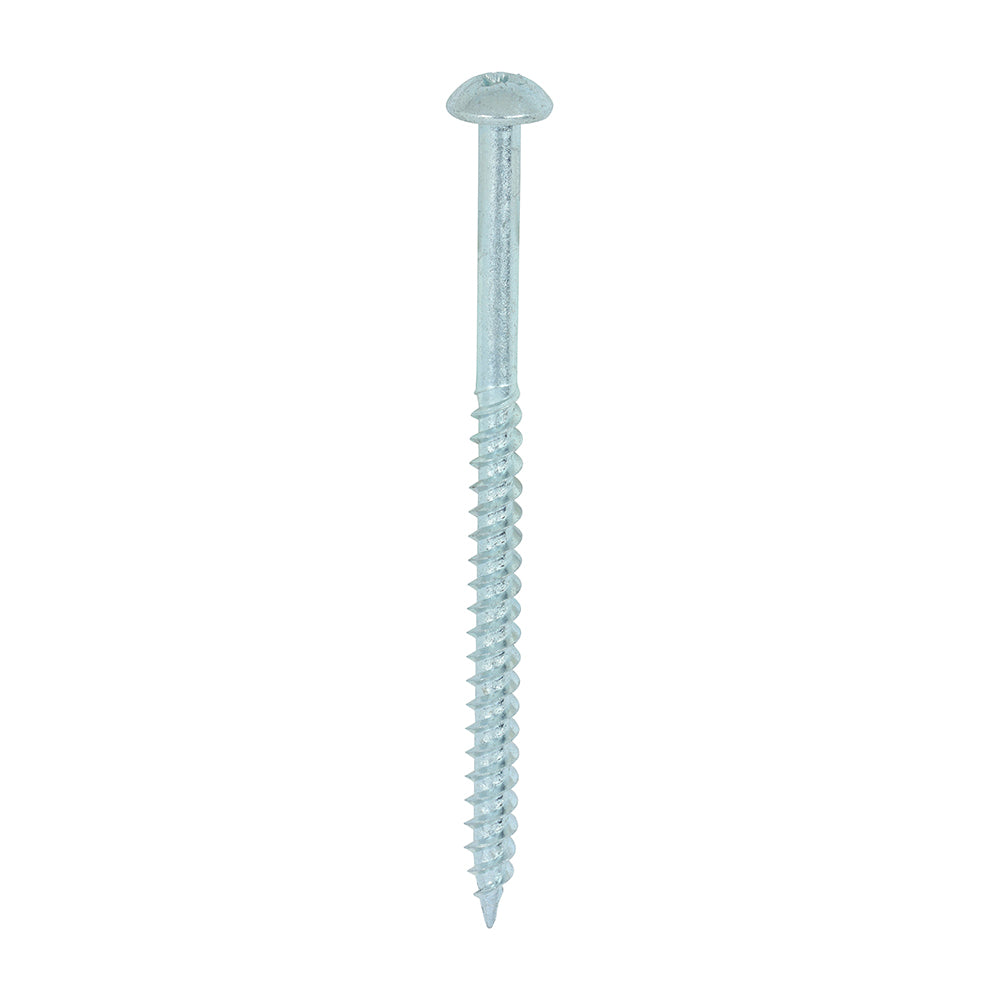

• Description: A traditional twin-thread woodscrew with single lead start for a fast installation. Roundhead screw used for clamping to flat surfaces or to achieve a high aesthetic finish. NOTE: Partially threaded.
• Diameter mm: 5.0
• Driver Bit Size: PZ2
• Feature 1: Partially threaded from 1 1/4” and above
• Feature 2: Made from C10-18 steel to ensure consistent quality
• Feature 3: 60° twin-threads with parallel shank for faster insertion and greater pull-out resistance
• Feature 4: Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Feature 5: 25° sharp point and single lead for a fast start and improved thread acceptance
• Finish: Zinc
• Gauge: 10
• Head Dia. mm: 9.18
• Head Type: Round
• Inner Thread Dia. mm: 3.25
• Length inch: 3
• Length mm: 80
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 138 x 96 x 94
• Pack Quantity: 200
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.44
• Pallet Qty Packs: 384
• Point Type: 25° Sharp
• Product Code: 00103CRWZ
• Recess Type: Pozi
• Size imp.: 10 x 3
• Size mm: 5.0 x 80
• SKU Barcode: 5055017518296
• Substrates: Softwood, Masonry (with plug)
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.0
• Thread Length mm: 52.8
• Thread Type: 60° Twin Threads
