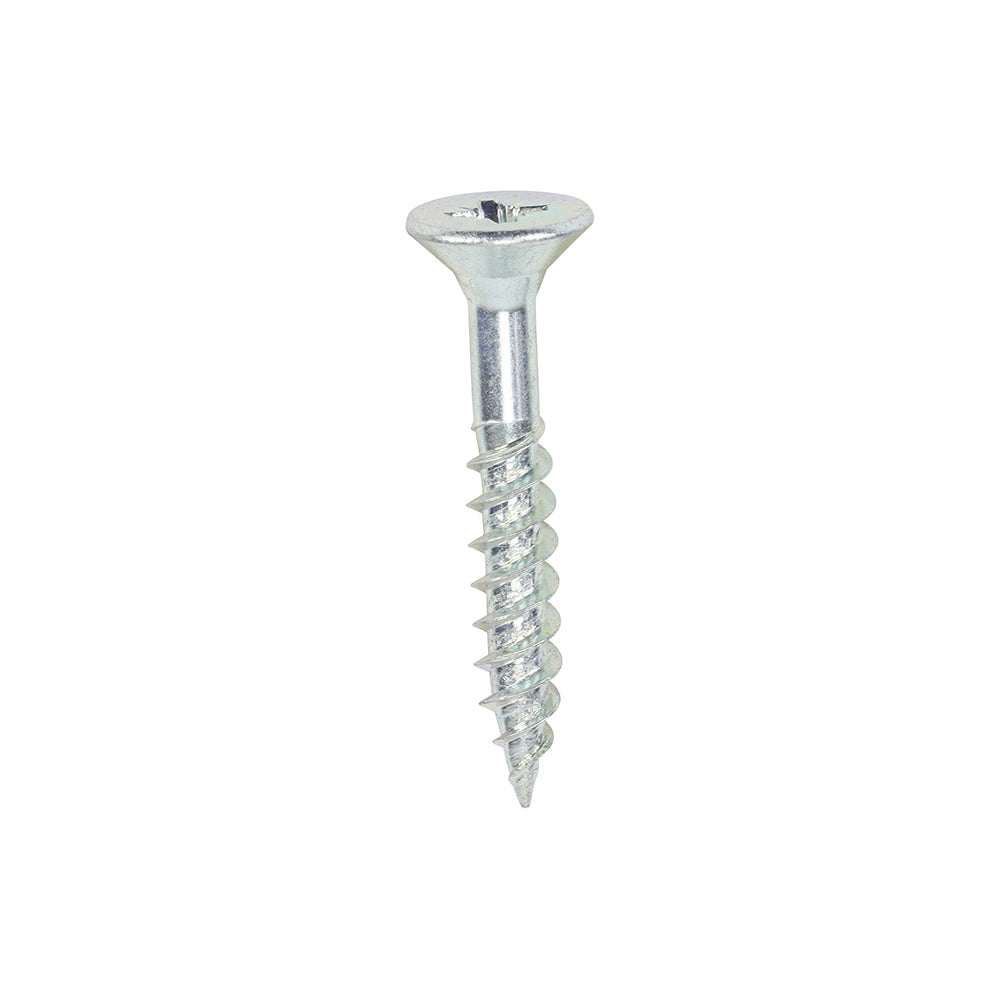

TIMCO Twin-Threaded Countersunk Silver Woodscrews - 10 x 1 1/4

TIMCO Twin-Threaded Countersunk Silver Woodscrews - 10 x 1 1/4

Product Code: 10114CWZ

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 50
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A traditional twin-thread woodscrew with single lead start for a fast installation. Mainly used in soft timber applications or masonry with a plastic plug. NOTE: Partially threaded.
• Diameter mm: 5.0
• Driver Bit Size: PZ2
• Feature 1: Double countersunk head reduces the likelihood of head shear and assists completion of countersinking
• Feature 2: Partially threaded from 1 1/4” and above
• Feature 3: Made from C10-18 steel to ensure consistent quality
• Feature 4: 60° twin-threads with parallel shank for faster insertion and greater pull-out resistance
• Feature 5: Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Feature 6: 25° sharp point and single lead for a fast start and improved thread acceptance
• Finish: Zinc
• Gauge: 10
• Head Dia. mm: 9.54
• Head Type: Double Countersunk
• Inner Thread Dia. mm: 3.25
• Length inch: 1
• Length mm: 30
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 94 x 72 x 58
• Pack Quantity: 200
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.56
• Pallet Qty Packs: 1,200
• Point Type: 25° Sharp
• Product Code: 10114CWZ
• Recess Type: Pozi
• Size imp.: 10 x 1
• Size mm: 5.0 x 30
• SKU Barcode: 5055017500321
• Substrates: Softwood, Masonry (with plug)
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.0
• Thread Length mm: 19.8
• Thread Type: 60° Twin Threads
