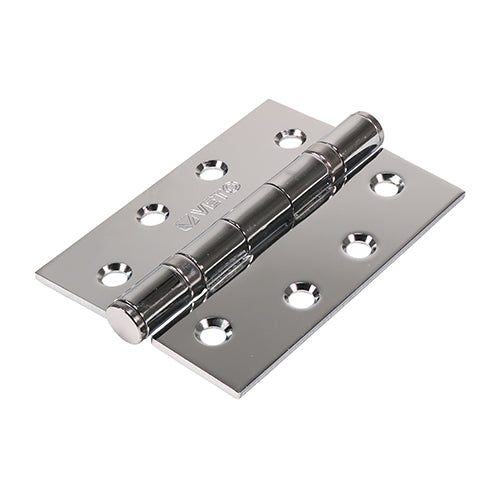

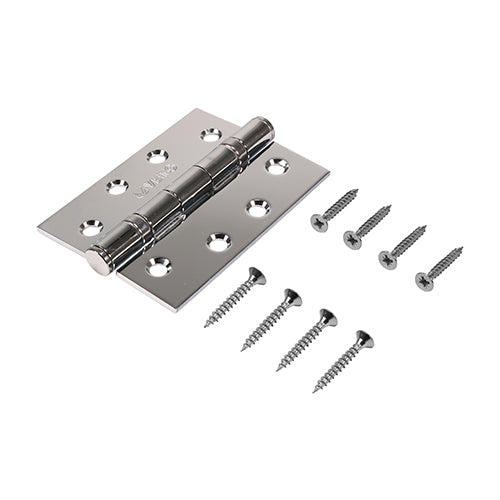

TIMCO Twin Ball Bearing Hinges - Steel - Polished Chrome - 102 x 76

TIMCO Twin Ball Bearing Hinges - Steel - Polished Chrome - 102 x 76

Product Code: 340555

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Bearing Type: Ball Bearing
• Brand: TIMCO
• Carton Qty Packs: 40
• Corner Type: Square
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Designed for use on medium duty doors in domestic applications.
• Feature 1: Two lubricated ball bearings prevent knuckle wear for long lasting performance
• Feature 2: Ball bearings provide a smooth door operation
• Feature 3: Button tip for improved aesthetics
• Feature 4: Manufactured from steel with a variety of plating finishes
• Finish: Polished Chrome
• Hole Dia. mm: 7.0
• Knuckle Dia. mm: 12.6
• Knuckle Type: Ball Bearing
• Length inch: 4
• Length mm: 102
• Material: Steel
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 16
• Offers: Clearance
• Open Width mm: 76
• Pack Dimensions L x W x H mm: 148 x 50 x 22
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Box
• Pack Weight kg: 0.480
• Pallet Qty Packs: 2,400
• Pin Material: Steel
• Product Code: 340555
• Rec Screw Dia. mm: 5.0
• Rec Screw Gauge imp.: 10
• Screw Size imp.: 10 x 1
• Screw Size mm: 5.0 x 30
• Screws Required Per Pair: 16
• Size imp.: 4
• Size L x W mm: 102 x 76
• SKU Barcode: 5056110826912
• Thickness mm: 2.7
