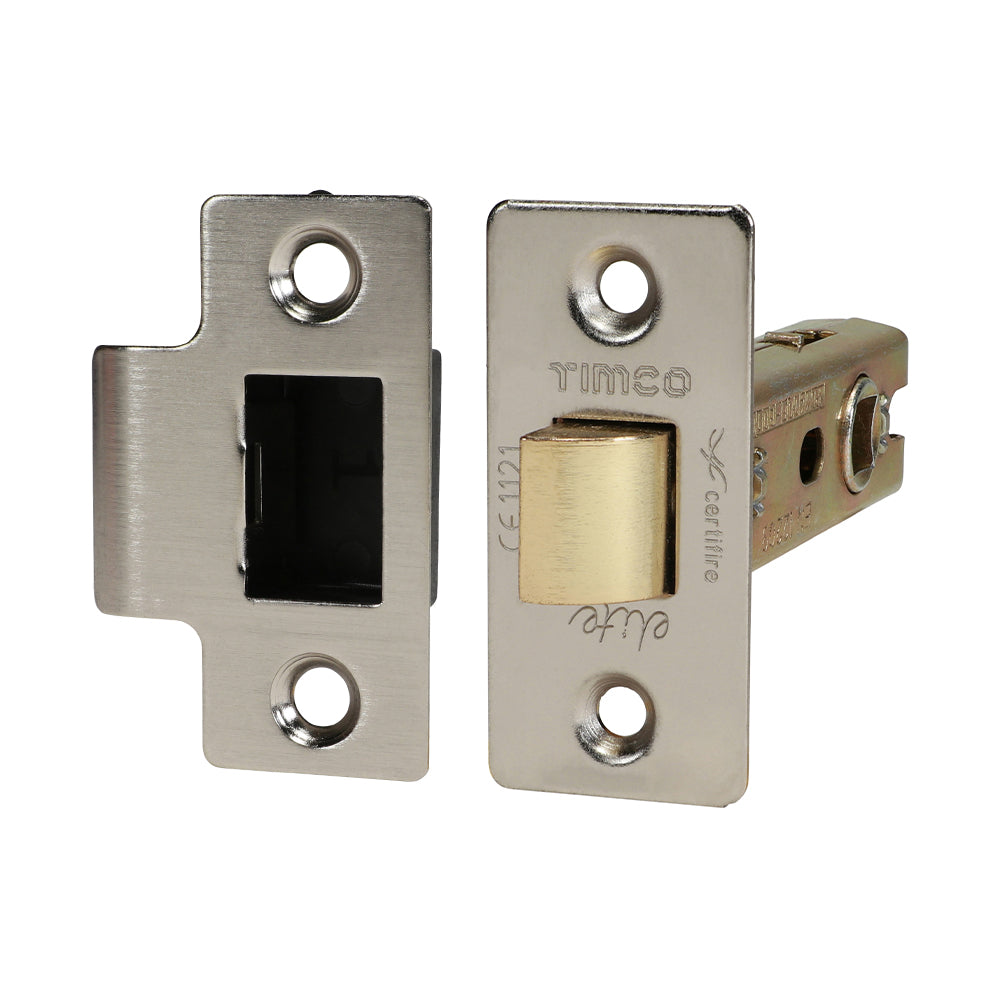

TIMCO Tubular Latch - Satin Nickel - 76mm

TIMCO Tubular Latch - Satin Nickel - 76mm

Product Code: 675783P

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 57.0
• Brand: TIMCO
• BS EN Classification: NPDM410F-B010
• Carton Qty Packs: 10
• CE Standard Web: BS EN 12209:2003
• Certifire Number: CF5531
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A medium duty tubular latch suitable for use in domestic and commercial applications. The latch should be used with sprung door furniture.
• Faceplate Size H x W mm: 58 x 27
• Faceplate Type: Square
• Feature 1: Suitable for 30 & 60 minute fire doors
• Feature 2: Bolt through
• Feature 3: Use with sprung furniture
• Feature 4: Complete with dust box and fixing screws
• Finish: Satin Nickel
• Fire Rating: 30 & 60 Minutes
• Keep Size H x W mm: 56 x 24
• Lock Case Depth mm: 76
• Lock Case Height mm: 21
• Lock Case Size H x D mm: 21 x 76
• Lock Case Width mm: 15
• Lock Follower Backset mm: 57.0
• Material: Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 235 x 116 x 28
• Pack Quantity: 1
• Pack Quantity Unit: Each

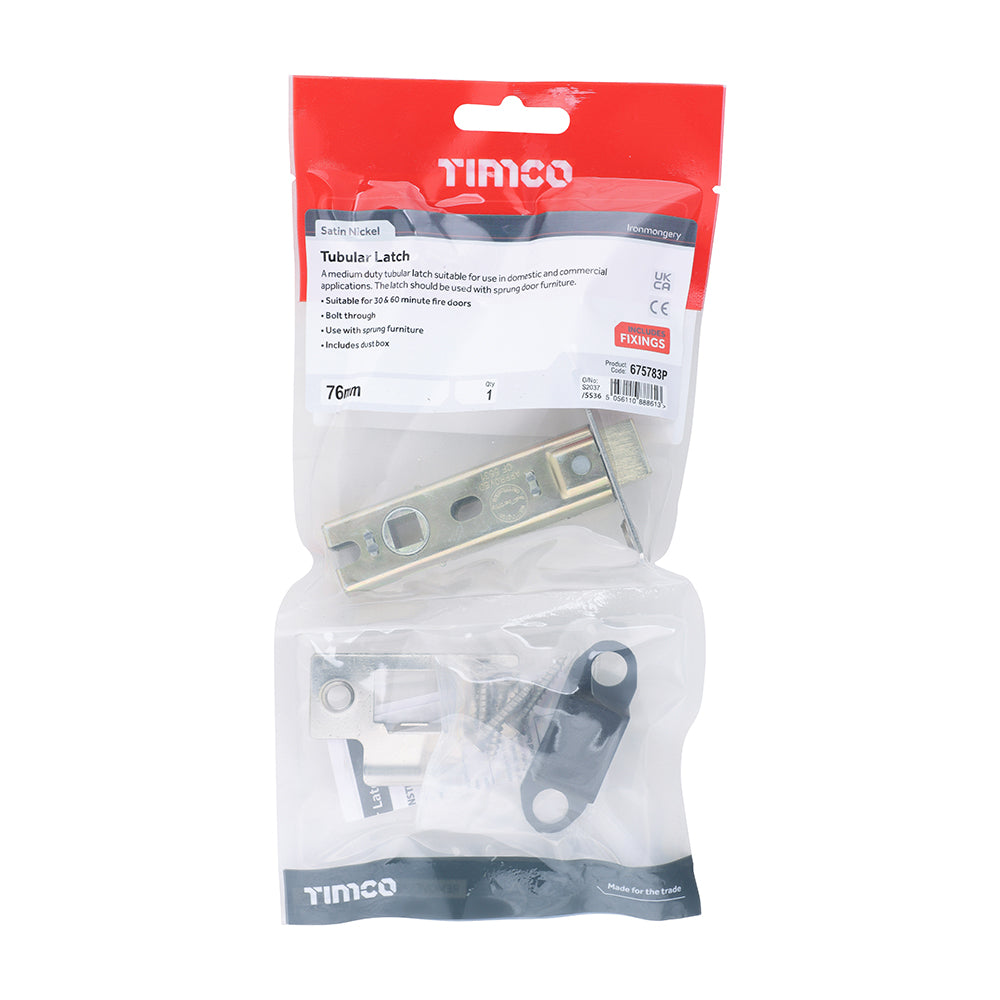

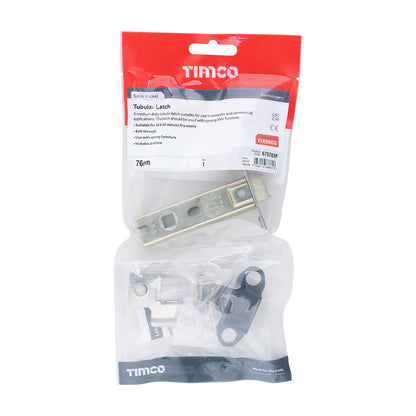

• Pack Type: TIMbag
• Pack Weight kg: 0.120
• Product Code: 675783P
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Size imp.: 3
• Size mm: 76 / 57
• SKU Barcode: 5056110888613
