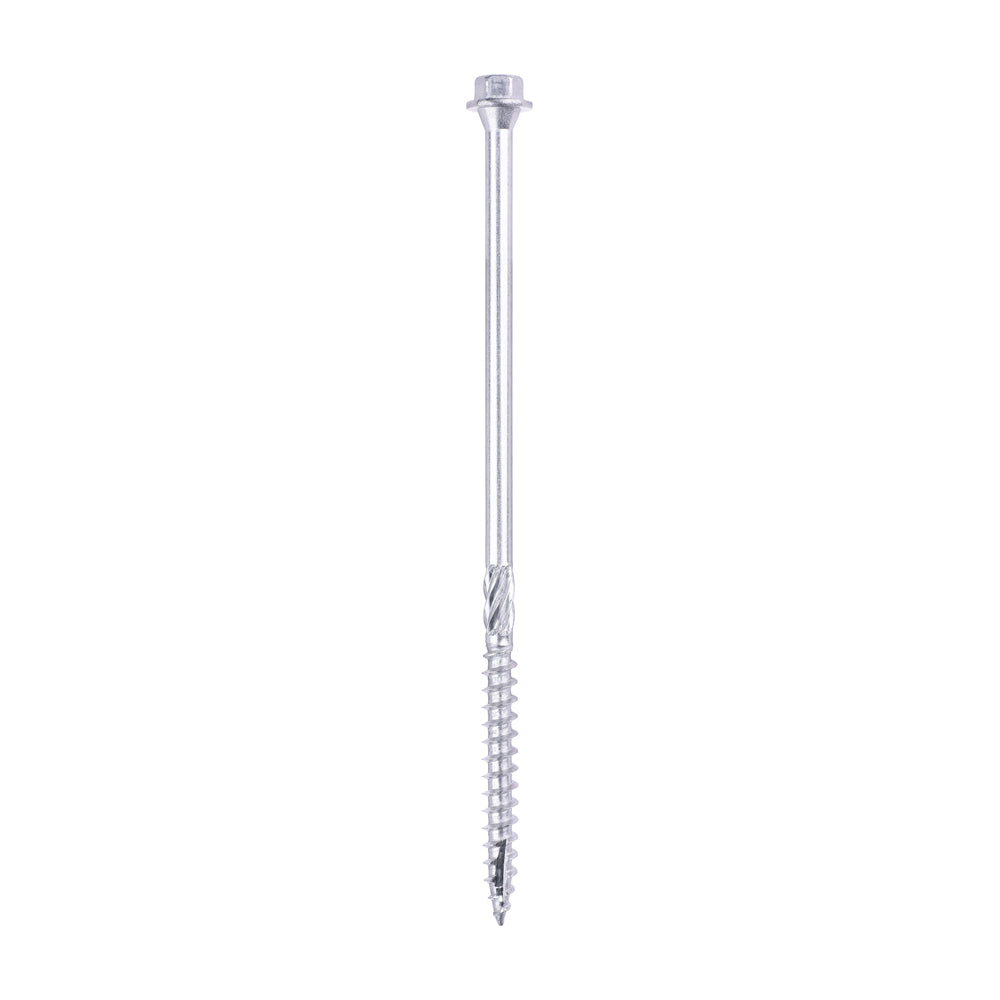

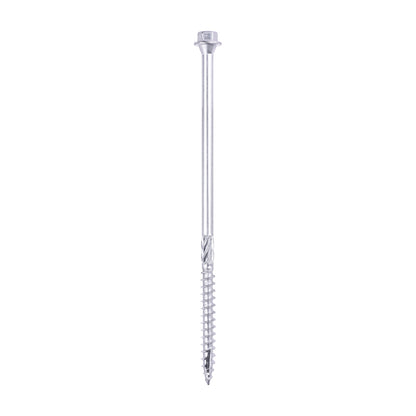

TIMCO Timber Screws Hex Flange Head A4 Stainless Steel - 6.7 x 150

TIMCO Timber Screws Hex Flange Head A4 Stainless Steel - 6.7 x 150

Product Code: 150INDEXSST

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 30
• CE Standard Web: BS EN 14592:2008
• Colour: Silver
• Corrosion Rating: 5 - Industrial & coastal areas with an aggressive salt atmosphere
• Description: Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Manufactured from A4 Stainless Steel for ultimate corrosion resistance making it ideal for external applications. Stainless steel must be used where there is corrosive environment and/or where the base material has inherent corrosive characteristics e.g. Green Oak.
• Diameter mm: 6.7
• Feature 1: Hex head countersunk with a fixed washer
• Feature 2: Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
• Feature 3: Helix shank for removing debris and to improve clamping
• Feature 4: 50° deep single thread to provide a secure fixing with high pull-out resistance
• Feature 5: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Feature 6: 25° sharp point and single lead for a fast start and improved thread acceptance
• Fixed Washer Dia. mm: 12.00
• Head Dia. mm: 16.08
• Head Type: Hex
• Inner Thread Dia. mm: 4.40
• Length mm: 150
• Material: Austenitic Stainless Steel (A4-316)
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 158 x 56 x 56

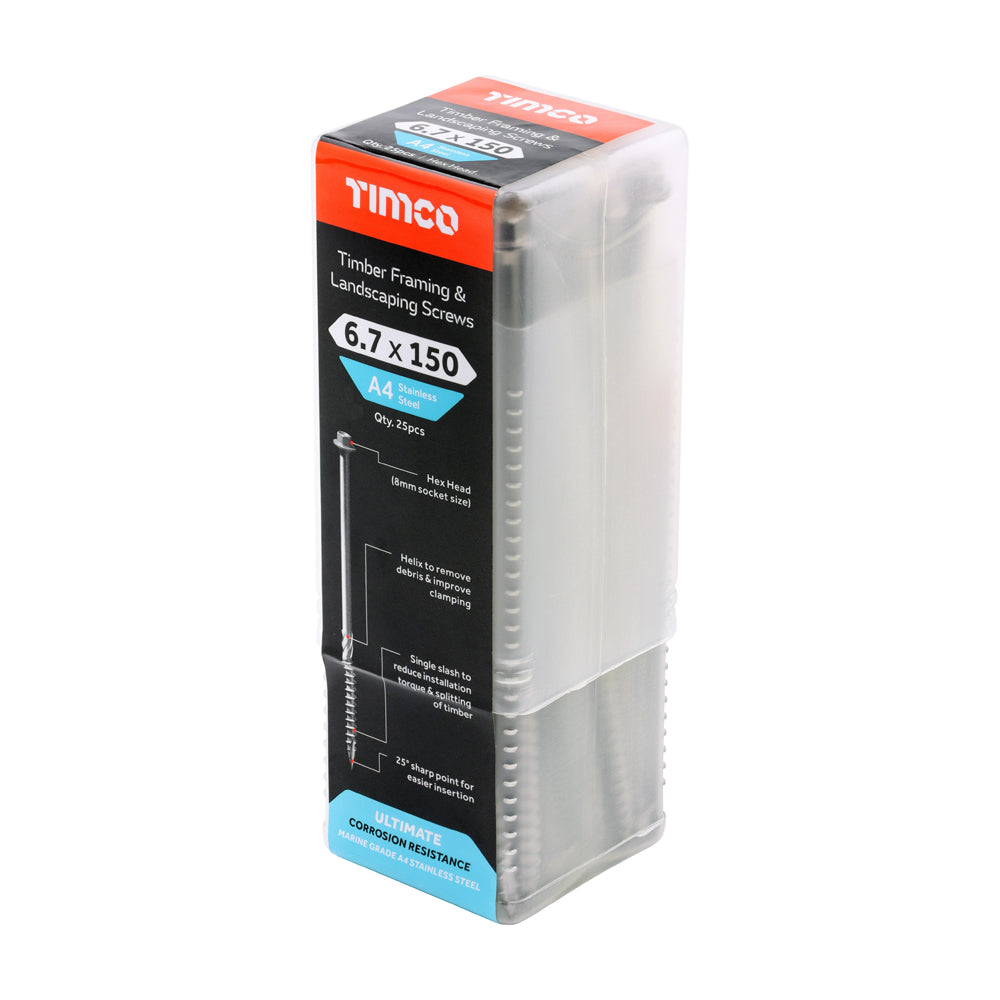

• Pack Quantity: 25
• Pack Quantity Unit: Pieces
• Pack Type: Tube
• Pack Weight kg: 0.680
• Pallet Qty Packs: 720
• Point Type: 25° Sharp with Single Slash
• Product Code: 150INDEXSST
• Recess Type: External Hex
• Shank Type: Helix
• Size mm: 6.7 x 150
• SKU Barcode: 5055017575541
• Socket Size mm: 8
• Substrates: Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar)
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 6.7
• Thread Length mm: 52
• Thread Type: 50° Single Deep
