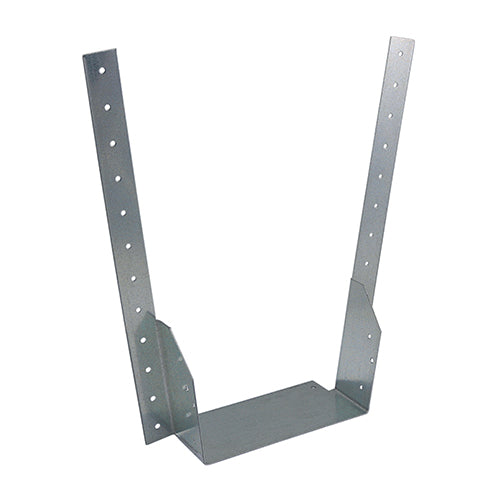

TIMCO Timber Hangers Standard Galvanised - 150 x 100 to 225 (Pack of 10)

TIMCO Timber Hangers Standard Galvanised - 150 x 100 to 225

Product Code: 150TH

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5268
• Bearing mm: 50
• Brand: TIMCO
• Carton Qty Packs: 50
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: The TIMCO Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
• Eurocode: 5
• Feature 1: Conforms to Eurocode 5 and service class 2
• Finish: Galvanised
• Joist Size W x H mm: 150 x 100 to 225
• Leg Length mm: 300
• Material: Carbon Steel
• MOQ: 10
• MOQ Increment: 10
• No. of Nail Holes 3.75mm: 32
• Pack Dimensions L x W x H mm: 50 x 150 x 300
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.250
• Product Code: 150TH
• Safe Working Load Long Term kN: 6.43
• Safe Working Load Medium Term kN: 7.35
• Safe Working Load Short Term kN: 7.72
• Service Class: 2
• SKU Barcode: 5022456314611
• Thickness mm: 1.0
• Type: Standard
• Width mm: 150
