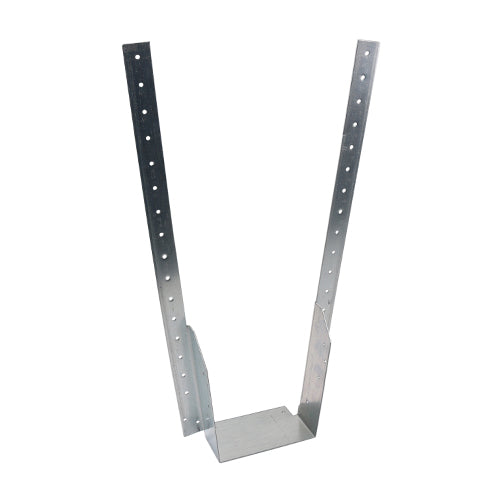

TIMCO Timber Hangers Long Leg Galvanised - 125 x 150 to 250 (Pack of 10)

TIMCO Timber Hangers Long Leg Galvanised - 125 x 150 to 250

Product Code: 125450LTH

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5268
• Bearing mm: 50
• Brand: TIMCO
• Carton Qty Packs: 50
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Specifically designed for deeper timber to timber applications. Ideal for loft conversions and “under-slung” floor joist applications where the hanger extends below the supporting beam. They have increase leg lengths so that all widths can take up to a 250mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
• Eurocode: 5
• Feature 1: Conforms to Eurocode 5 and service class 2
• Finish: Galvanised
• Joist Size W x H mm: 125 x 150 to 250
• Leg Length mm: 450
• Material: Carbon Steel
• MOQ: 10
• MOQ Increment: 10
• No. of Nail Holes 3.75mm: 46
• Pack Dimensions L x W x H mm: 50 x 125 x 450
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.500
• Product Code: 125450LTH
• Safe Working Load Long Term kN: 11.68
• Safe Working Load Medium Term kN: 13.35
• Safe Working Load Short Term kN: 14.02
• Service Class: 2
• SKU Barcode: 5022456318145
• Thickness mm: 1.2
• Type: Long Leg
• Width mm: 125
