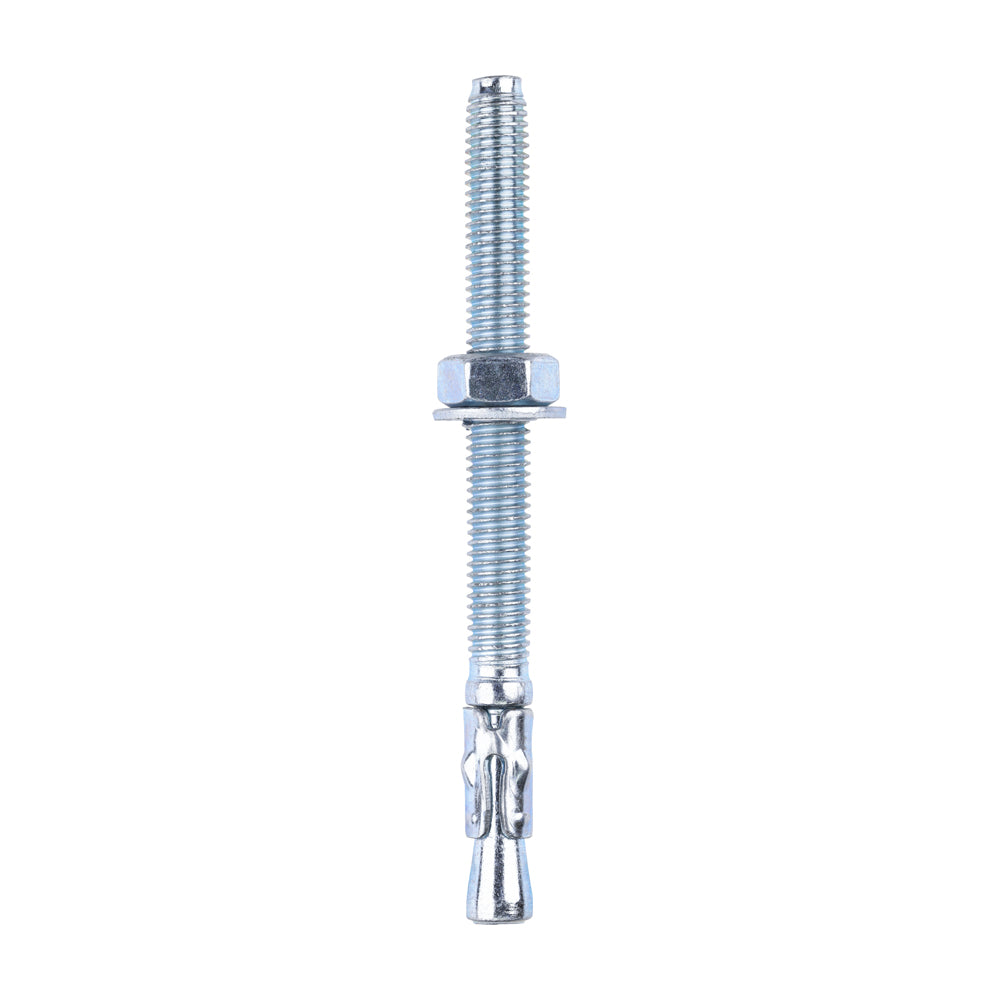

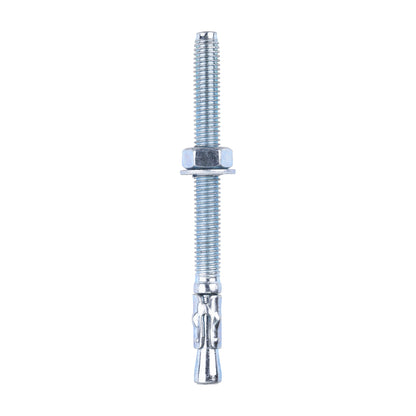

TIMCO Throughbolts Silver - M8 x 100

TIMCO Throughbolts Silver - M8 x 100

Product Code: 08100TB

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• Centre Spacing mm: 110
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
• DIN Standard: DIN 934, DIN 125-A
• Drill Hole Dia. mm: 8.0
• Feature 1: Chamfered head design to prevent damage to thread during installation
• Feature 2: Zinc plated and passivated (3-5 microns)
• Feature 3: Manufactured from cold formed carbon steel (grade 5.8)
• Feature 4: Special expansion clip for rapid installation
• Finish: Zinc
• Fixture Hole Diameter mm: 9.0
• Head Type: Chamfered
• Included Items: M8 Hex Full Nuts & Form A Washers
• Length mm: 100
• Material: Carbon Steel
• Max Fixture Thickness mm: 45
• Min Drill Hole Depth mm: 45
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M8
• Nut Socket Size mm: 13
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 135 x 90 x 90
• Pack Quantity: 50
• Pack Quantity Unit: Pieces

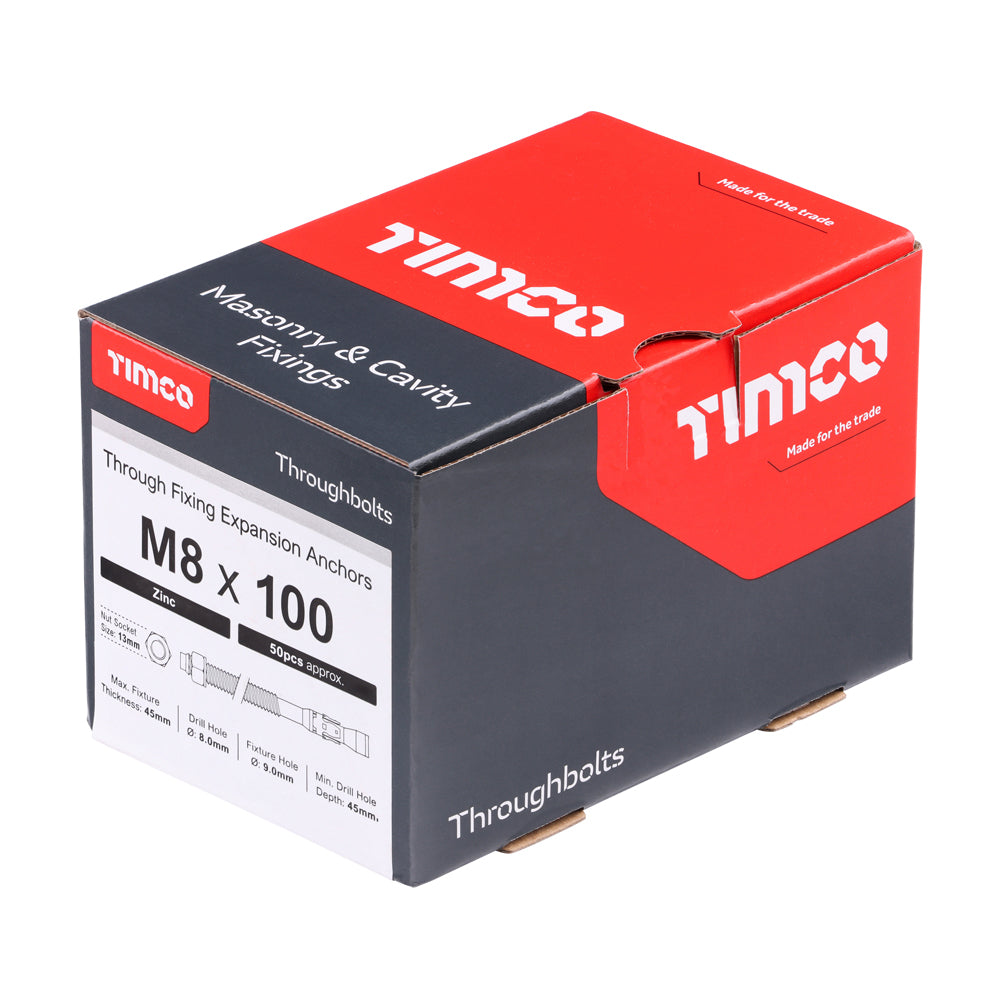

• Pack Type: Box
• Pack Weight kg: 1.957
• Pallet Qty Packs: 384
• Product Code: 08100TB
• Size Thread Dia. x L mm: M8 x 100
• SKU Barcode: 5055017560714
• Substrates: Concrete
• Thread Coverage: Fully Threaded
• Thread Dia. mm: M8
• Thread Type: Metric
• Washer Size mm: M8 x 17
• Washer Type: Form A
