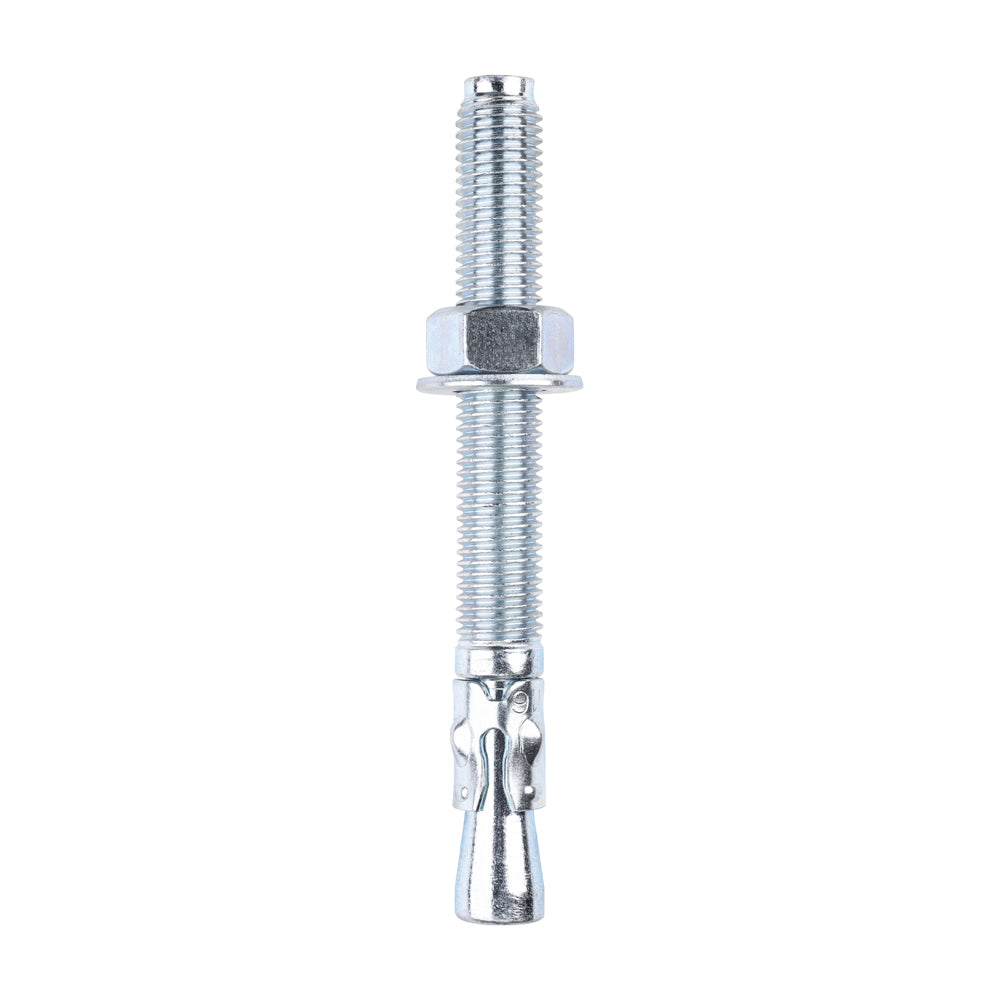

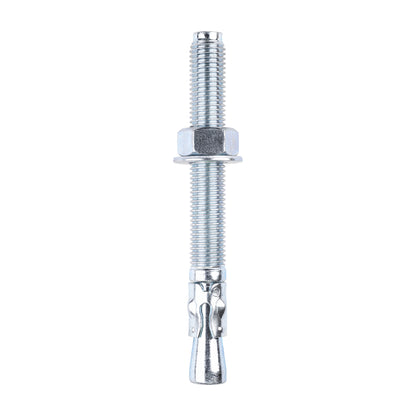

TIMCO Throughbolts Silver - M16 x 150

TIMCO Throughbolts Silver - M16 x 150

Product Code: 16150TB

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 6
• Centre Spacing mm: 200
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
• DIN Standard: DIN 934, DIN 125-A
• Drill Hole Dia. mm: 16.0
• Feature 1: Chamfered head design to prevent damage to thread during installation
• Feature 2: Zinc plated and passivated (3-5 microns)
• Feature 3: Manufactured from cold formed carbon steel (grade 5.8)
• Feature 4: Special expansion clip for rapid installation
• Finish: Zinc
• Fixture Hole Diameter mm: 18.0
• Head Type: Chamfered
• Included Items: M16 Hex Full Nuts & Form A Washers
• Length mm: 150
• Material: Carbon Steel
• Max Fixture Thickness mm: 45
• Min Drill Hole Depth mm: 75
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M16
• Nut Socket Size mm: 24
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 162 x 140 x 84
• Pack Quantity: 15
• Pack Quantity Unit: Pieces

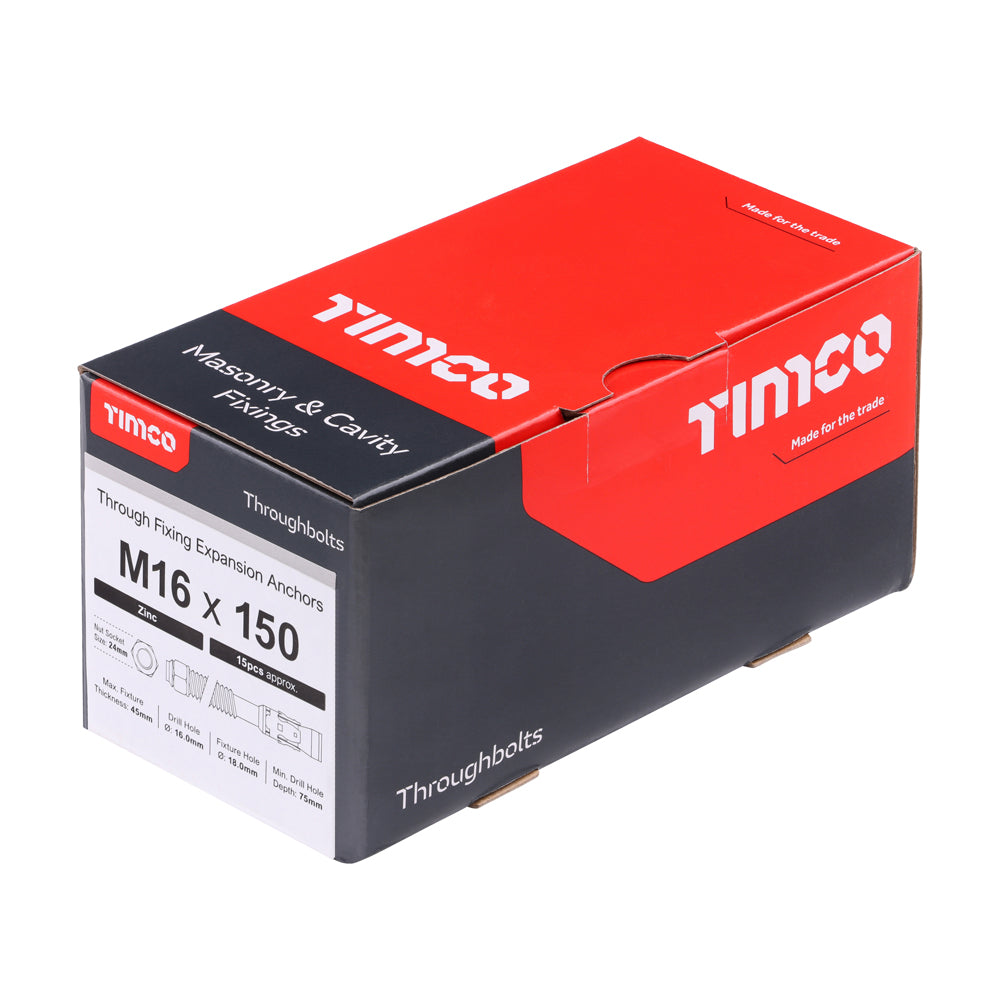

• Pack Type: Box
• Pack Weight kg: 3.610
• Pallet Qty Packs: 192
• Product Code: 16150TB
• Size Thread Dia. x L mm: M16 x 150
• SKU Barcode: 5055331820471
• Substrates: Concrete
• Thread Coverage: Fully Threaded
• Thread Dia. mm: M16
• Thread Type: Metric
• Washer Size mm: M16 x 30
• Washer Type: Form A
