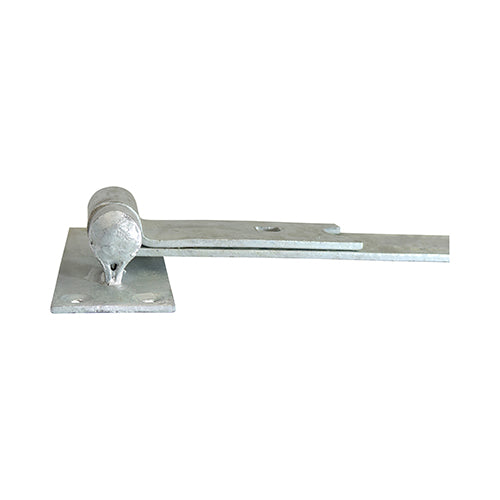

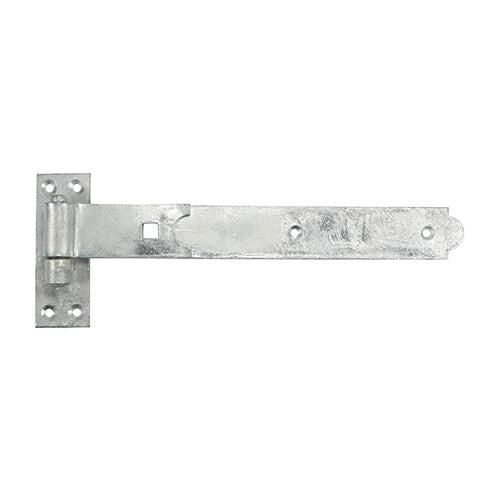

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 350mm

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 350mm

Product Code: HBS350G

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Band Length inch: 14
• Band Length mm: 350
• Band Thickness mm: 4.8
• Band Width mm: 40
• Brand: TIMCO
• Carriage Bolt Size mm: M10 x 100
• Carton Qty Packs: 5 Pairs
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 6.0 x 40
• Description: The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
• Finish: Hot Dipped Galvanised
• Hook Plate Size L x W mm: 115 x 40
• Included Items: M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 12)
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Bolt Holes: 2
• No. of Carriage Bolts: 2
• No. of CSK Screws: 12
• No. of Nuts: 2
• No. of Screw Holes: 12
• No. of Washers: 2
• Nut Size mm: M10
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 152 x 30 x 457
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Plain Bag
• Pack Weight kg: 1.820
• Pallet Qty Packs: 250 Pairs
• Pin Dia. inch:
• Pin Dia. mm: 12.0
• Product Code: HBS350G
• Rec Screw Dia. mm: 6.0
• Rec Screw Gauge imp.: 12
• SKU Barcode: 5055893360118
• To Fit Carriage Bolt Dia. mm: M10
• To Suit Gate Width mm: 700 - 1050
• Type: Straight
• Washer Size mm: M10
