TIMCO Stella-Fix Universal Cavity & Wall Anchors - M5 x 90

TIMCO Stella-Fix Universal Cavity & Wall Anchors - M5 x 90

Product Code: STBLACK90

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Board Thickness mm: 18 - 30
• Brand: TIMCO
• Carton Qty Packs: 10
• Colour: Black
• Corrosion Rating: 1 - Clean, dry & low humidity environments

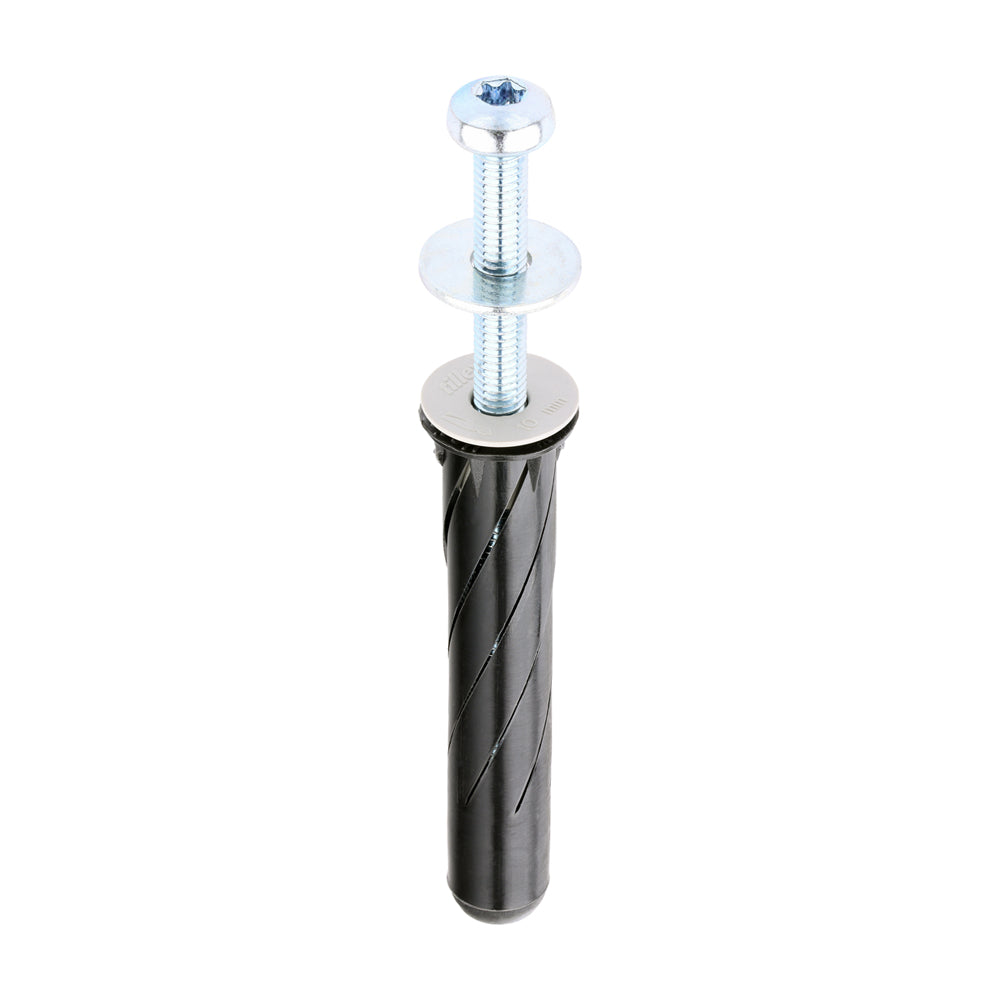

• Description: A highly effective universal anchor for fixing heavy loads to plasterboard cavities and solid materials.
• Drill Hole Dia. mm: 10.0
• Driver Bit Size: TX25
• Feature 1: Zinc & clear machine screws
• Feature 2: TX25 Drive recess allows simple installation with a screw driver
• Feature 3: Strengthened nylon plug with captivated steel threaded nut
• Feature 4: Perfect for double board
• Head Type: Pan
• Material: Nylon
• Max Fixture Thickness mm: 38
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 112 x 78 x 136
• Pack Quantity: 25
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.498
• Pallet Qty Packs: 800
• Plug Dia. mm: 10
• Plug Length mm: 59
• Plug Size mm: 10 x 59
• Point Type: B Point
• Product Code: STBLACK90
• Recess Type: TX Drive
• Screw Size mm: M5 x 90
• SKU Barcode: 5055893366042
• Substrates: Double Board, Concrete, Block
• Temperature Resistant °C: -40ºC to +80ºC
• Thread Dia. mm: M5
• Thread Type: Metric
