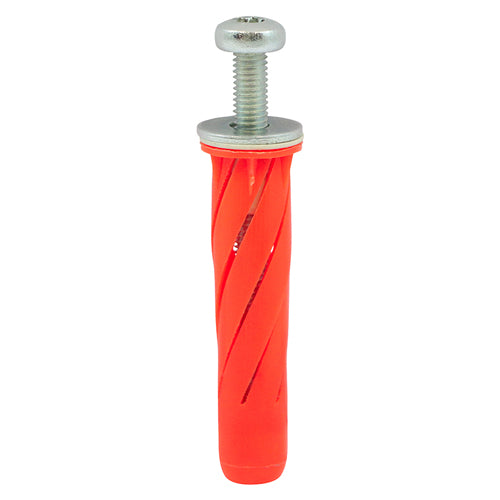

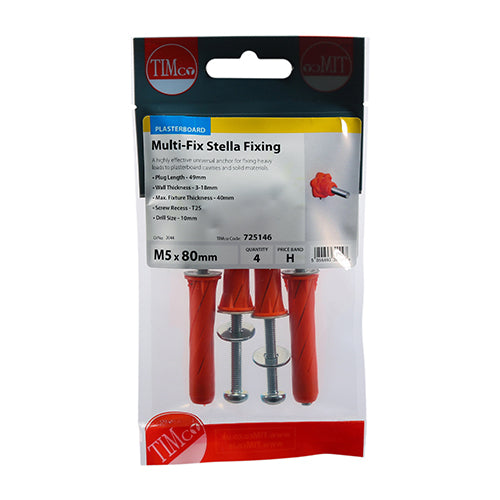

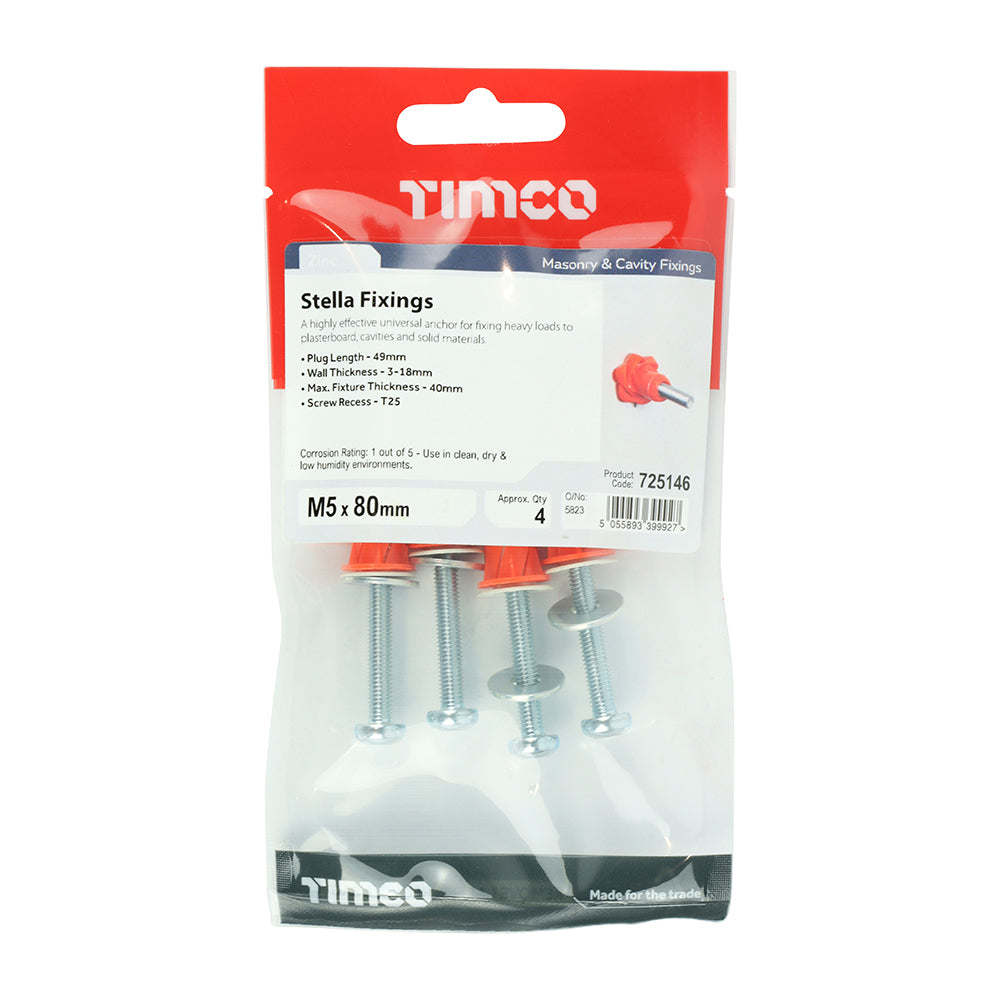

TIMCO Stella-Fix Universal Cavity & Wall Anchors - M5 x 80

TIMCO Stella-Fix Universal Cavity & Wall Anchors - M5 x 80

Product Code: 725146

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Board Thickness mm: 3 - 18
• Brand: TIMCO
• Carton Qty Packs: 5
• Colour: Red
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A highly effective universal anchor for fixing heavy loads to plasterboard, cavities and solid materials.
• Drill Hole Dia. mm: 10.0
• Driver Bit Size: TX25
• Feature 1: Zinc & clear machine screws
• Feature 2: TX25 Drive recess allows simple installation with a screw driver
• Feature 3: Strengthened nylon plug with captivated steel threaded nut
• Feature 4: Perfect for single board
• Head Type: Pan
• Material: Nylon
• Max Fixture Thickness mm: 40
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 15 x 90 x 163
• Pack Quantity: 4
• Pack Quantity Unit: Pieces
• Pack Type: TIMpac
• Pack Weight kg: 0.067
• Plug Dia. mm: 10
• Plug Length mm: 49
• Plug Size mm: 10 x 49
• Point Type: B Point
• Product Code: 725146
• Recess Type: TX Drive
• Screw Size mm: M5 x 80
• SKU Barcode: 5055893399927
• Substrates: Plasterboard, Dense Board, Concrete, Block
• Temperature Resistant °C: -40ºC to +80ºC
• Thread Coverage: Fully Threaded
• Thread Dia. mm: M5
• Thread Type: Metric
