TIMCO Standard Double Strap Gate Hinge Set Hot Dipped Galvanised - 600mm

TIMCO Standard Double Strap Gate Hinge Set Hot Dipped Galvanised - 600mm

Product Code: SFH600G

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Bottom Strap L inch: 6
• Bottom Strap L mm: 150
• Brand: TIMCO
• Carriage Bolt Size mm: M10 x 95
• Carton Qty Packs: 4

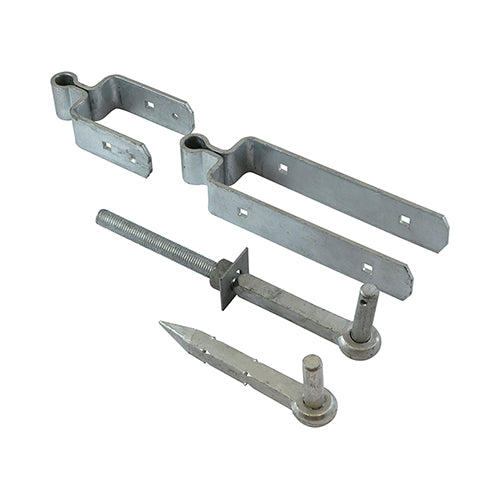

• Contents: 600mm Top Strap (Qty 1) ?150mm Bottom Strap (Qty 1) ?215mm Hook to Drive (Qty 1) ?M20 x 350 Hook to Bolt (Qty 1) ?Carriage Bolts M10 x 95mm (Qty 4) ?M10 Full Hex Nuts (Qty 4) ?M10 Washers (Qty 4) ?6.0 x 40mm TIMco Exterior Woodscrews (Qty 2)
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 6.0 x 40
• Description: Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
• Feature 1: Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Feature 2: Hooks to drive are barbed, preventing the gate from working loose
• Finish: Hot Dipped Galvanised
• Hook to Bolt Dia. x L mm: M20 x 350
• Hook to Drive Size mm: 215 x 22
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Carriage Bolts: 4
• No. of CSK Screws: 2
• No. of Nuts: 4
• No. of Screw Holes: 2
• No. of Washers: 4
• Nut Size mm: M10
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 178 x 30 x 610
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Plain Bag
• Pack Weight kg: 6.080
• Pallet Qty Packs: 100
• Pin Dia. inch:
• Pin Dia. mm: 19.0
• Product Code: SFH600G
• SKU Barcode: 5055893361214
• Strap Thickness mm: 6.0
• To Fit Carriage Bolt Dia. mm: M10
• To Suit Gate Thickness inch: 3
• To Suit Gate Thickness mm: 75
• To Suit Gate Width ft: 9 - 12
• To Suit Gate Width mm: 2700 - 3600
• Top Strap L inch: 24
• Top Strap L mm: 600
• Type: Standard
• Washer Size mm: M10
• Washer Type: Form A
