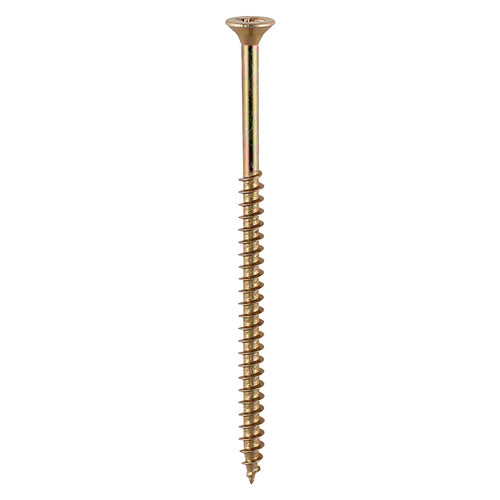

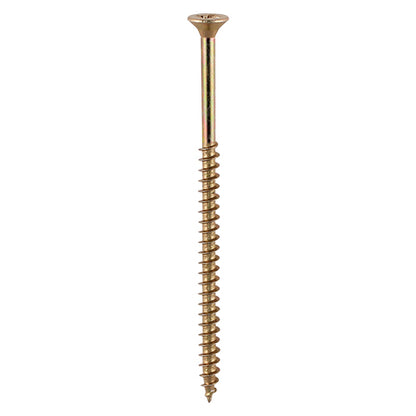

TIMCO Solo Countersunk Gold Woodscrews - 5.0 x 100

TIMCO Solo Countersunk Gold Woodscrews - 5.0 x 100

Product Code: 50100STUBY

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 4
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
• Diameter mm: 5.0
• Driver Bit Size: PZ2
• Feature 1: Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Feature 2: Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• Feature 3: 40° deep single thread to provide a secure fixing with high pull-out resistance
• Feature 4: 25° sharp point and single lead for a fast start and improved thread acceptance
• Feature 5: All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
• Finish: Zinc & Yellow
• Gauge: 10
• Head Dia. mm: 9.74
• Head Type: Double Countersunk
• Included Items: PZ2 S2 Bits (Qty 2)
• Inner Thread Dia. mm: 3.10
• Length inch: 4
• Length mm: 100
• Lubrication: Wax
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1

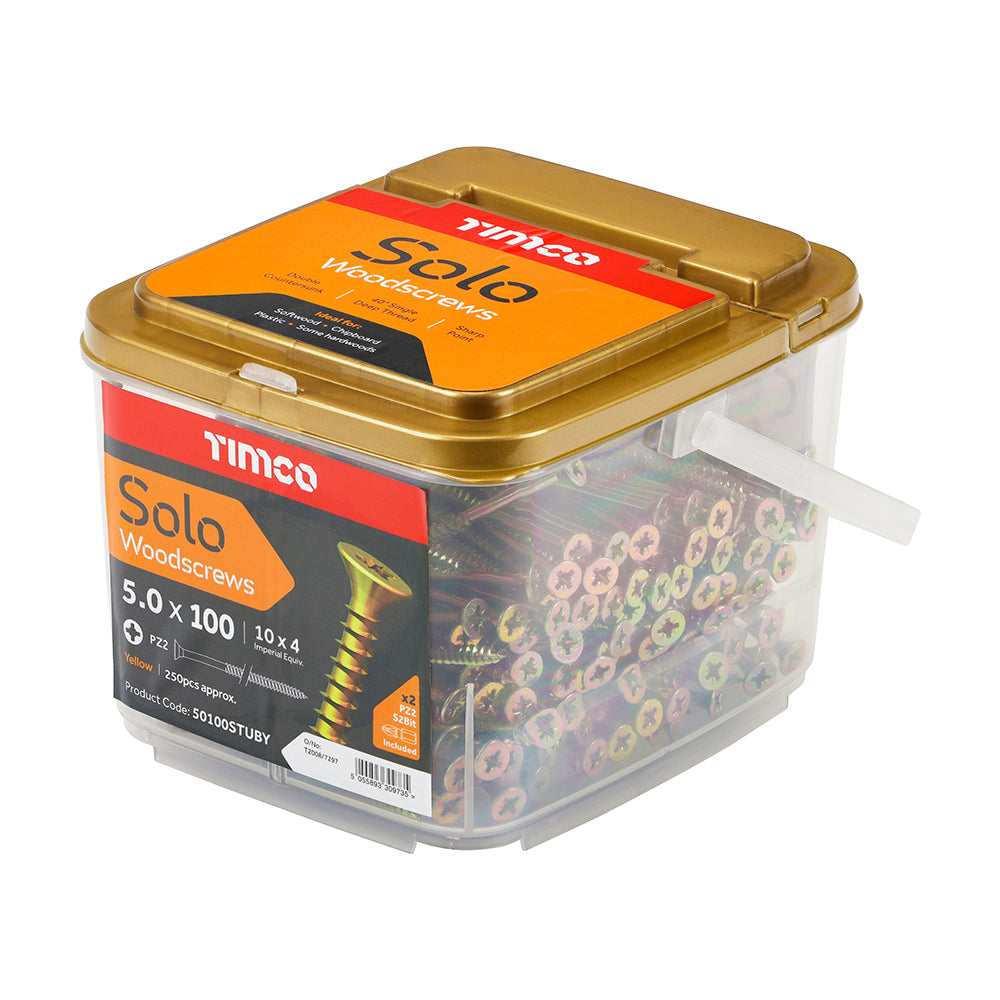

• Pack Dimensions L x W x H mm: 164 x 140 x 118
• Pack Quantity: 250
• Pack Quantity Unit: Pieces
• Pack Type: Tub
• Pack Weight kg: 2.126
• Pallet Qty Packs: 180
• Point Type: 25° Sharp
• Product Code: 50100STUBY
• Recess Type: Pozi
• Size imp.: 10 x 4
• Size mm: 5.0 x 100
• SKU Barcode: 5055893309735
• Substrates: Softwood, Chipboard, MDF, Masonry (with plug)
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.0
• Thread Length mm: 70
• Thread Type: 40° Single Deep
