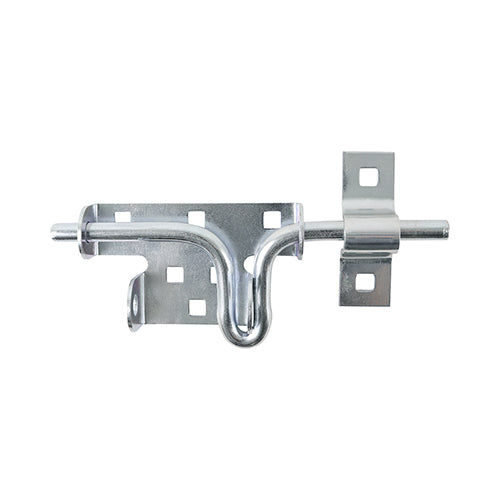

TIMCO Slide Action Padbolt Silver - 7.2"

TIMCO Slide Action Padbolt Silver - 7.2"

Product Code: 287585

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Bolt Dia. mm: 9.0
• Bolt Length inch: 7
• Bolt Length mm: 185
• Bolt Throw mm: 60
• Brand: TIMCO
• Carriage Bolt Size mm: M6 x 50
• Carton Qty Packs: 10
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Slide action padbolts are ideal for securing flush fitting gates and doors in domestic and light commercial applications when the bolt is exposed externally. They are pad-lockable and fixed with eight carriage bolts to prevent the bolt being wrenched from the door. Fixings included.
• Finish: Zinc
• Included Items: M6 x 50mm Carriage Bolts (Qty 8) ?M6 Hex Full Nuts (Qty 8) ?M6 Washers (Qty 8)
• Material: Carbon Steel
• Max Padlock Shackle Diameter mm: 8.0
• MOQ: 1
• MOQ Increment: 1
• No. of Bolt Holes: 8
• No. of Carriage Bolts: 8
• No. of Nuts: 8
• No. of Washers: 8
• Nut Size mm: M6
• Nut Type: Hex Full
• Offers: Clearance
• Pack Dimensions L x W x H mm: 20 x 160 x 290
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: TIMbag
• Pack Weight kg: 0.420
• Plate Size L x W mm: 105 x 72
• Product Code: 287585
• SKU Barcode: 5055893395042
• Staple Keep Size L x W mm: 76 x 25
• To Fit Carriage Bolt Dia. mm: M6
• Washer Size mm: M6
