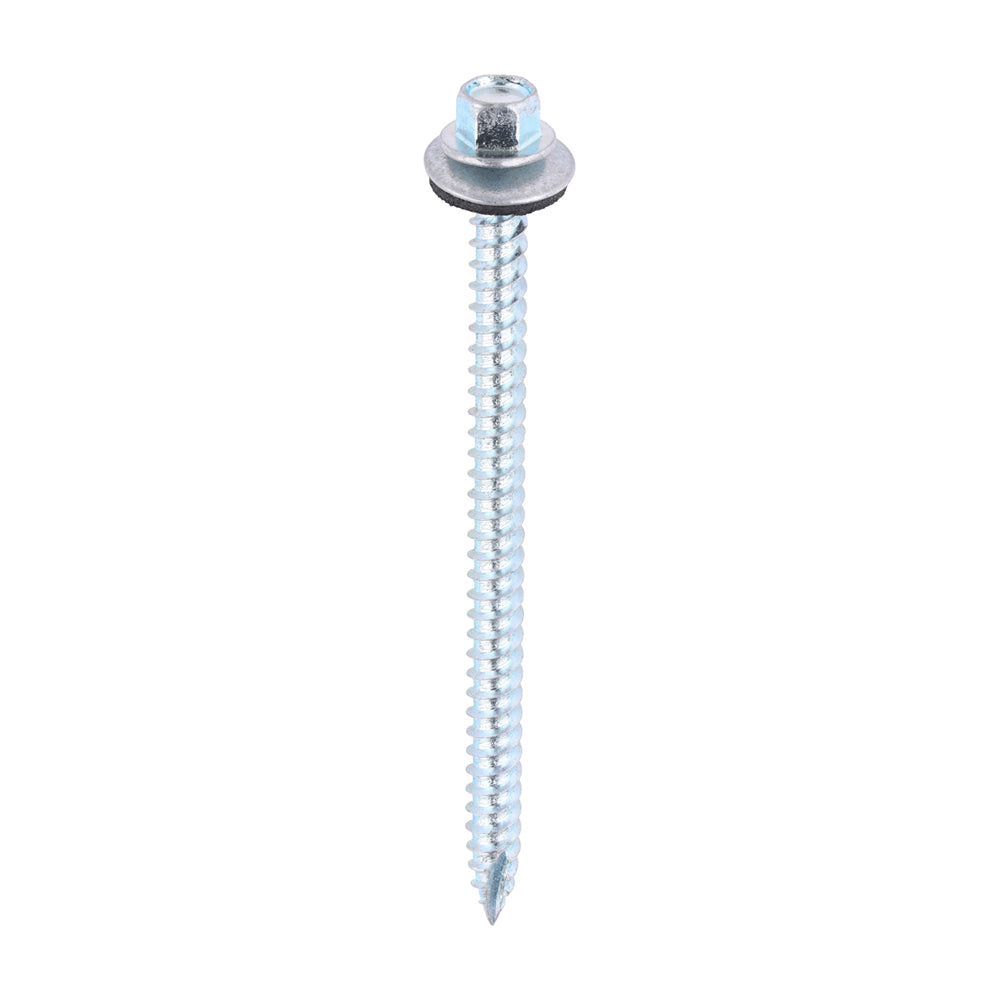

TIMCO Slash Point Sheet Metal to Timber Screws Silver with EPDM Washer - 6.3 x 100

TIMCO Slash Point Sheet Metal to Timber Screws Silver with EPDM Washer - 6.3 x 100

Product Code: ZDS100W16

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Designed to attach sheet metal (max 0.8mm) to timber. Once installed the EPDM washer prevents water ingress. Exterior plating gives a reliable and durable corrosion resistant coating which resists over 1,000 hours salt-spray.
• Diameter mm: 6.3
• Effective Thread Length mm: 97
• EPDM Washer mm: 16
• Feature 1: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Finish: Zinc
• Fixed Washer Dia. mm: 13.00
• Head Height mm: 6.30
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 100
• Material: Case & Core Hardened Carbon Steel
• Max Fixture Thickness mm: 57.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 215 x 196 x 56
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Bag
• Pack Weight kg: 1.948
• Pallet Qty Packs: 288
• Point Type: Single Slash
• Product Code: ZDS100W16
• Rec RPM: 1,000 - 1,800
• Size mm: 6.3 x 100
• SKU Barcode: 5055893325933
• Socket Size mm: 8
• Substrates: Steel, Timber
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.3
• Thread Type: 60° Single Deep
• Type: For Timber
