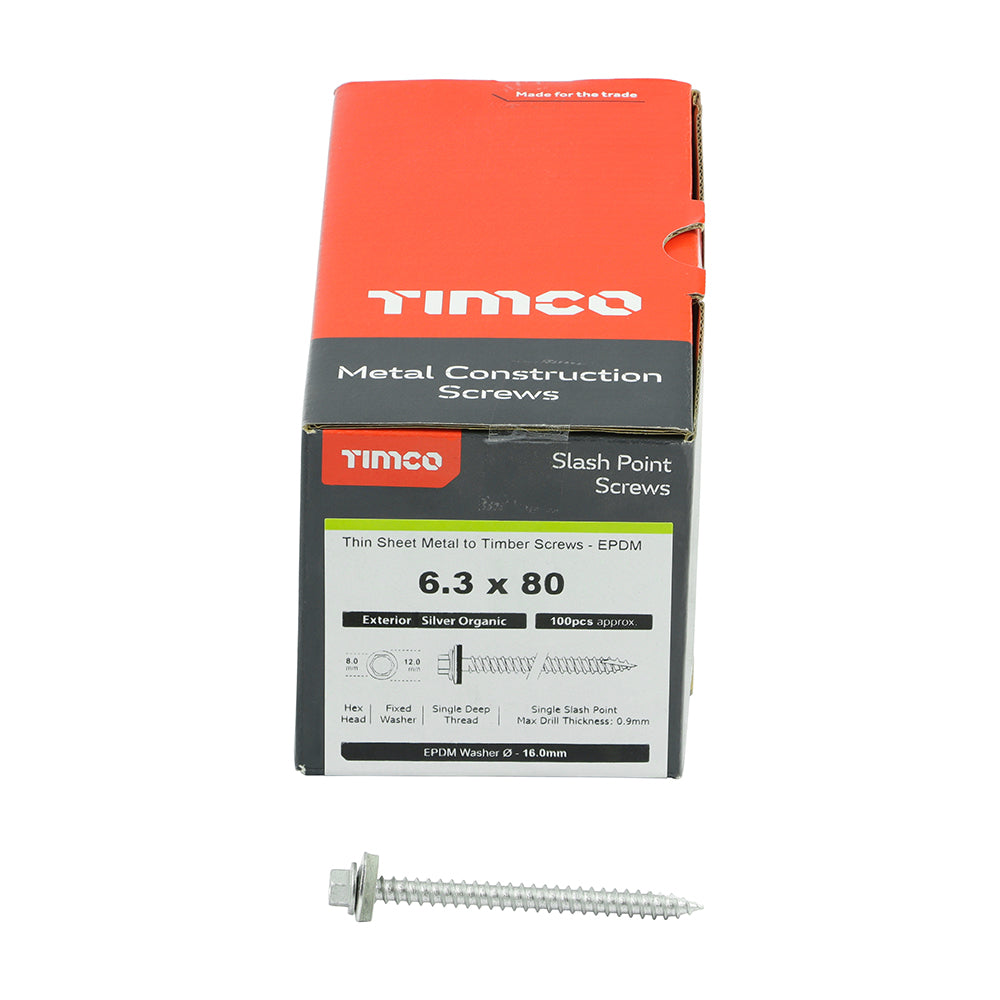

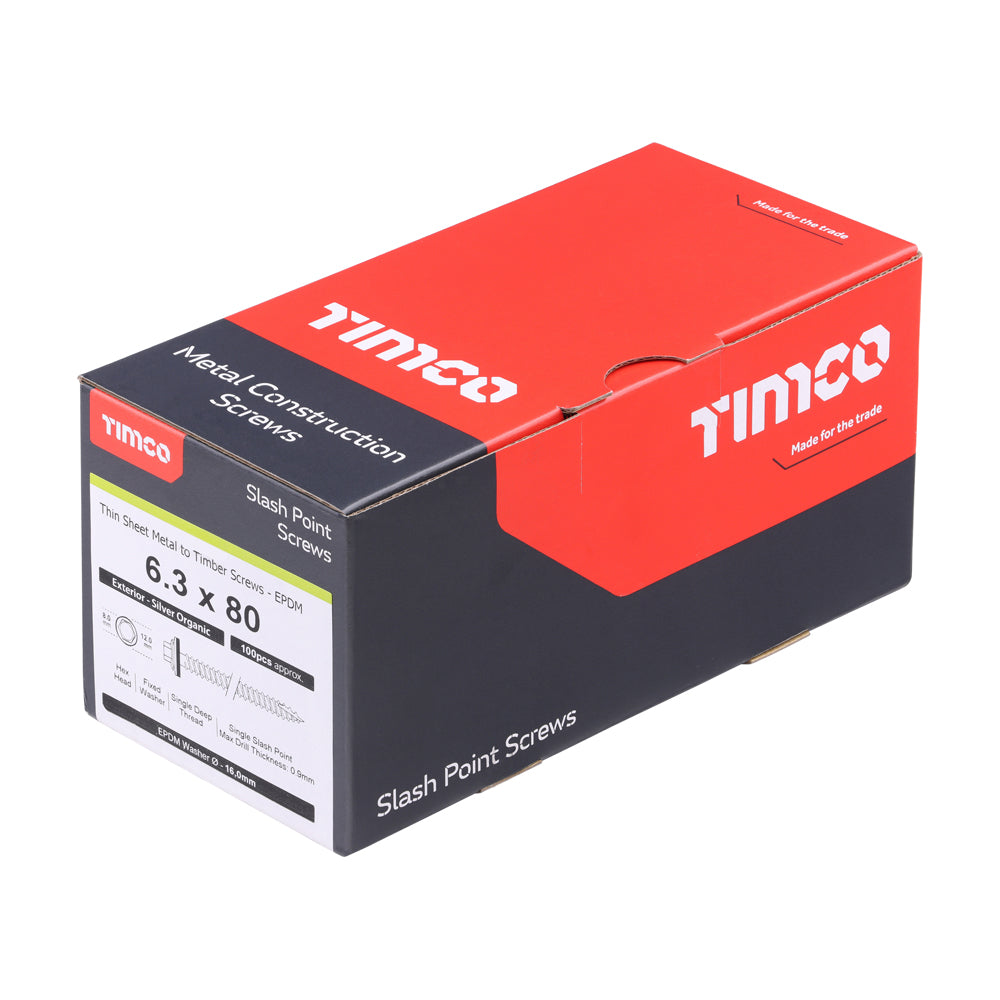

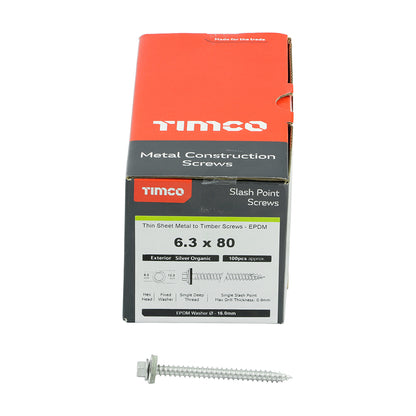

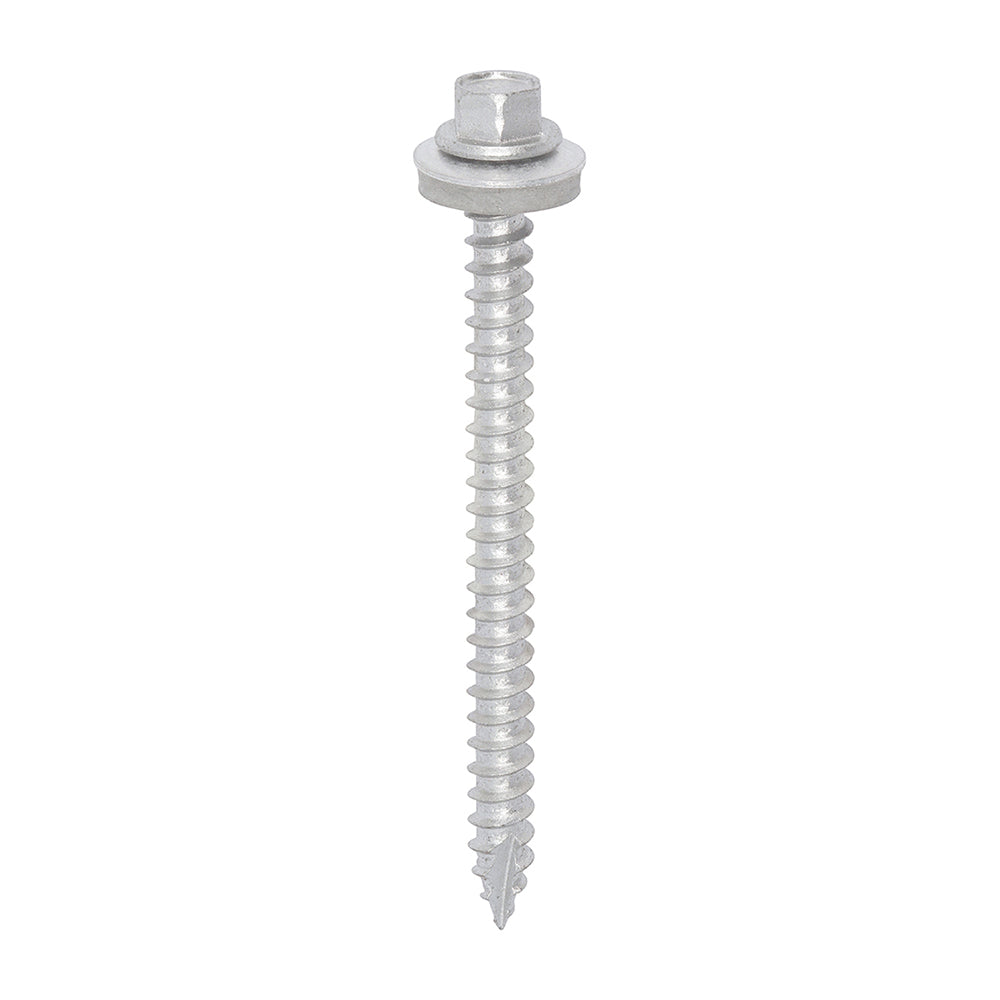

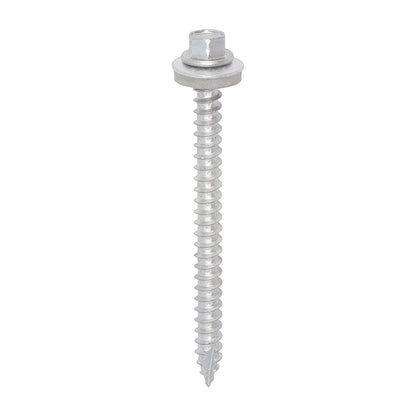

TIMCO Slash Point Sheet Metal to Timber Screws Exterior Silver with EPDM Washer - 6.3 x 80

TIMCO Slash Point Sheet Metal to Timber Screws Exterior Silver with EPDM Washer - 6.3 x 80

Product Code: DS80W16B

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 12
• Colour: Silver
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Designed to attach sheet metal (max 0.8mm) to timber. Once installed the EPDM washer prevents water ingress. Exterior plating gives a reliable and durable corrosion resistant coating which resists over 500 hours salt-spray.
• Diameter mm: 6.3
• Effective Thread Length mm: 77
• EPDM Washer mm: 16
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Feature 2: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.70
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 81
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 0.9
• Max Fixture Thickness mm: 37.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 194 x 92 x 92
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.600
• Pallet Qty Packs: 288
• Point Type: Single Slash
• Product Code: DS80W16B
• Rec RPM: 1,000 - 1,800
• Size mm: 6.3 x 80
• SKU Barcode: 5055331815262
• Socket Size mm: 8
• Substrates: Steel, Timber
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.3
• Thread Type: 60° Single Deep
• Type: For Timber
