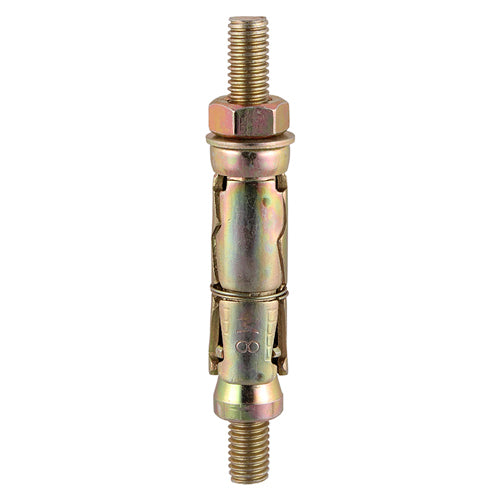

TIMCO Shield Anchors Projecting Bolt Gold - M8:25P

TIMCO Shield Anchors Projecting Bolt Gold - M8:25P

Product Code: 0825PSH

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 6
• Centre Spacing mm: 150
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: The projecting stud allows the fixture to be positioned into place and then fastened secure.
• Drill Hole Dia. mm: 14.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Stud grade 5.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 10.0
• Included Items: M8 Form A Washers (Qty 50) ?M8 Hex Full Nuts (Qty 50)
• Material: Carbon Steel
• Max Fixture Thickness mm: 25
• Min Drill Hole Depth mm: 60
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M8
• Nut Socket Size mm: 13
• Pack Dimensions L x W x H mm: 184 x 96 x 92
• Pack Quantity: 50
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 2.750
• Pallet Qty Packs: 240
• Point Type: B Point
• Product Code: 0825PSH
• Shield Length mm: 50
• SKU Barcode: 5055017563722
• Stud Length mm: 85
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M8
• Thread Type: Metric
• Type: Projecting
• Washer Size mm: M8
