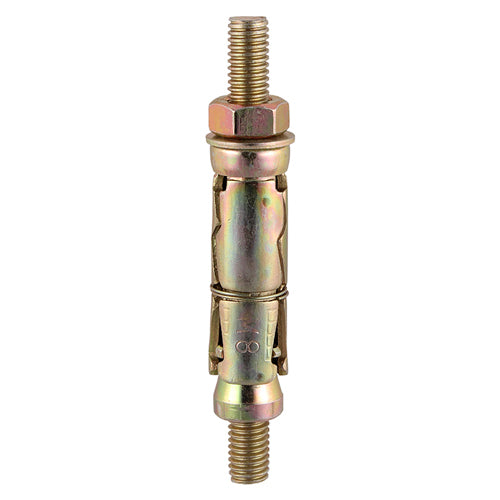

TIMCO Shield Anchors Projecting Bolt Gold - M12:75P

TIMCO Shield Anchors Projecting Bolt Gold - M12:75P

Product Code: 1275PSH

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• Centre Spacing mm: 225
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: The projecting stud allows the fixture to be positioned into place and then fastened secure.
• Drill Hole Dia. mm: 20.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Stud grade 5.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 14.0
• Included Items: M12 Form A Washers (Qty 10) ?M12 Hex Full Nuts (Qty 10)
• Material: Carbon Steel
• Max Fixture Thickness mm: 75
• Min Drill Hole Depth mm: 85
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M12
• Nut Socket Size mm: 19
• Pack Dimensions L x W x H mm: 204 x 90 x 74
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.982
• Pallet Qty Packs: 320
• Point Type: B Point
• Product Code: 1275PSH
• Shield Length mm: 75
• SKU Barcode: 5055017563791
• Stud Length mm: 165
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M12
• Thread Type: Metric
• Type: Projecting
• Washer Size mm: M12
