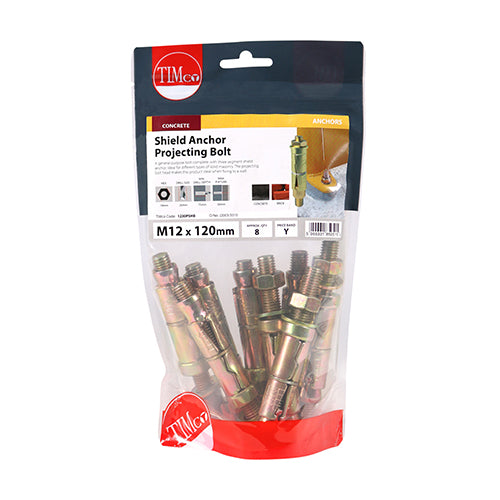

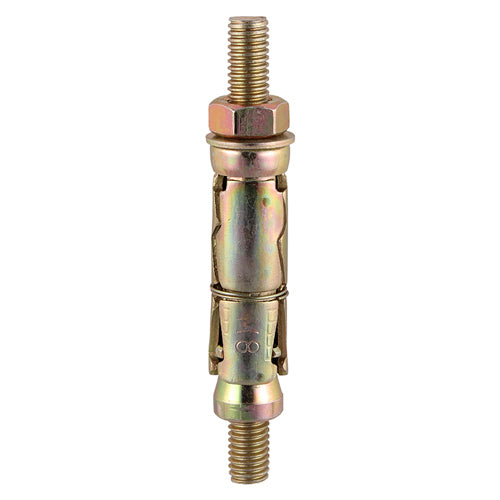

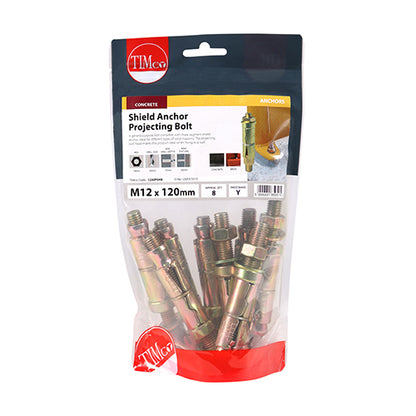

TIMCO Shield Anchors Projecting Bolt Gold - M12:30P (M12 x 120)

TIMCO Shield Anchors Projecting Bolt Gold - M12:30P (M12 x 120)

Product Code: 1230PSHB

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 5
• Centre Spacing mm: 225
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: The projecting stud allows the fixture to be positioned into place and then fastened secure.
• Drill Hole Dia. mm: 20.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Stud grade 5.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 14.0
• Material: Carbon Steel
• Max Fixture Thickness mm: 30
• Min Drill Hole Depth mm: 85
• MOQ: 1
• MOQ Increment: 1
• Nut Socket Size mm: 19
• Pack Dimensions L x W x H mm: 265 x 152 x 50
• Pack Quantity: 8
• Pack Quantity Unit: Pieces
• Pack Type: TIMbag
• Pack Weight kg: 1.310
• Pallet Qty Packs: 500
• Point Type: B Point
• Product Code: 1230PSHB
• Shield Length mm: 75
• Size Thread Dia. x L mm: M12 x 120
• SKU Barcode: 5055331850515
• Stud Length mm: 120
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M12
• Thread Type: Metric
• Type: Projecting
