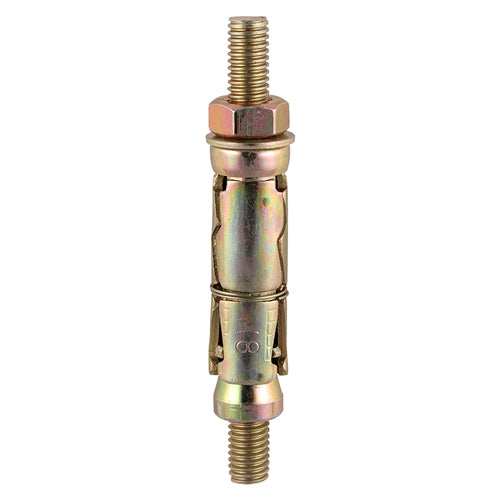

TIMCO Shield Anchors Projecting Bolt Gold - M10:60P

TIMCO Shield Anchors Projecting Bolt Gold - M10:60P

Product Code: 1060PSH

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• Centre Spacing mm: 180
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: The projecting stud allows the fixture to be positioned into place and then fastened secure.
• Drill Hole Dia. mm: 16.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Stud grade 5.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 12.0
• Included Items: M10 Form A Washers (Qty 50) ?M10 Hex Full Nuts (Qty 25)
• Material: Carbon Steel
• Max Fixture Thickness mm: 60
• Min Drill Hole Depth mm: 70
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M10
• Nut Socket Size mm: 17
• Pack Dimensions L x W x H mm: 138 x 98 x 92
• Pack Quantity: 25
• Pack Quantity Unit: Pieces

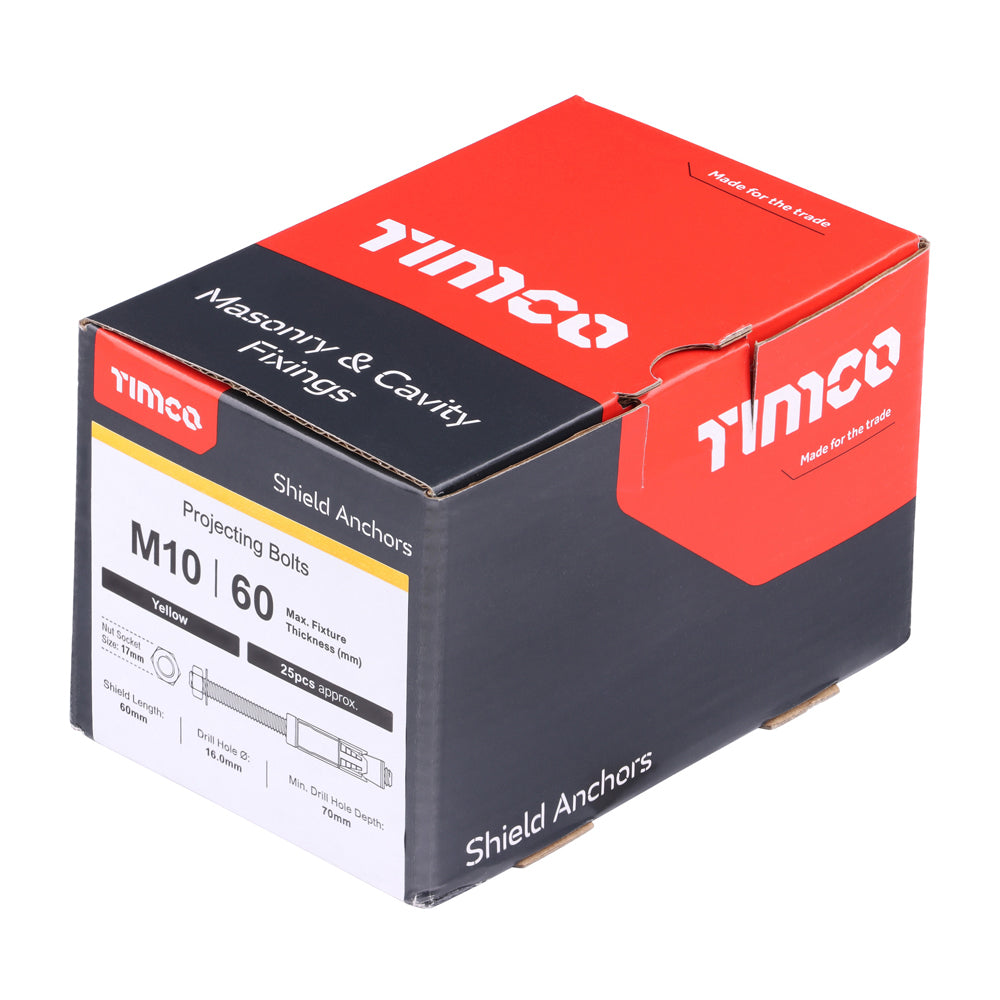

• Pack Type: Box
• Pack Weight kg: 2.760
• Pallet Qty Packs: 256
• Point Type: B Point
• Product Code: 1060PSH
• Shield Length mm: 60
• SKU Barcode: 5055017563760
• Stud Length mm: 130
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M10
• Thread Type: Metric
• Type: Projecting
• Washer Size mm: M10
