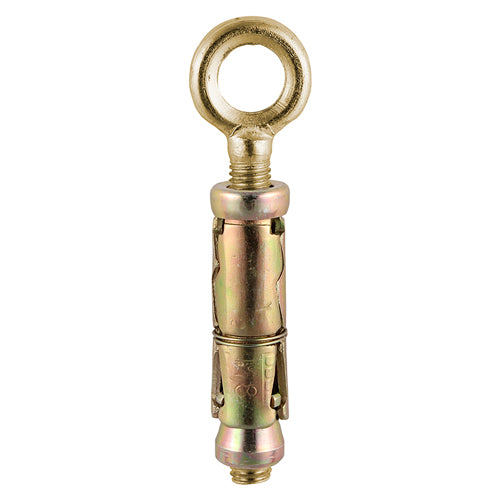

TIMCO Shield Anchors - M10 (2pcs)

TIMCO Shield Anchors - M10

Product Code: 10EYEP

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 10
• Centre Spacing mm: 180
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A useful threaded eye bolt for attaching ropes or cables, complete with three segment shield anchors. Manufactured using a forging process for extra strength.
• Drill Hole Dia. mm: 16.0
• Eye Dia. mm: 12.0
• Eye Length mm: 105
• Feature 1: Zinc and yellow passivated for improved corrosion resistance
• Feature 2: Nut and washer included
• Feature 3: Forged eye grade 4.8
• Finish: Zinc & Yellow
• Included Items: M10 Hex Full Nuts & Form A Washers
• Material: Carbon Steel
• Min Drill Hole Depth mm: 70
• Min Embedment Depth mm: 60
• Min Structure Thickness mm: 120
• MOQ: 1
• MOQ Increment: 1
• Nut Socket Size mm: 17
• Pack Dimensions L x W x H mm: 15 x 90 x 163
• Pack Quantity: 2
• Pack Quantity Unit: Pieces
• Pack Type: TIMpac
• Pack Weight kg: 0.215
• Point Type: B Point
• Product Code: 10EYEP
• Shield Length mm: 60
• SKU Barcode: 5056110830247
• Substrates: Concrete, Brick
• Thread Dia. mm: M10
• Thread Length mm: 73
• Thread Type: Metric
