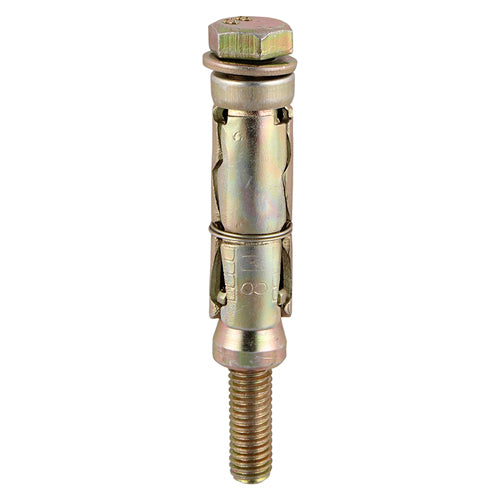

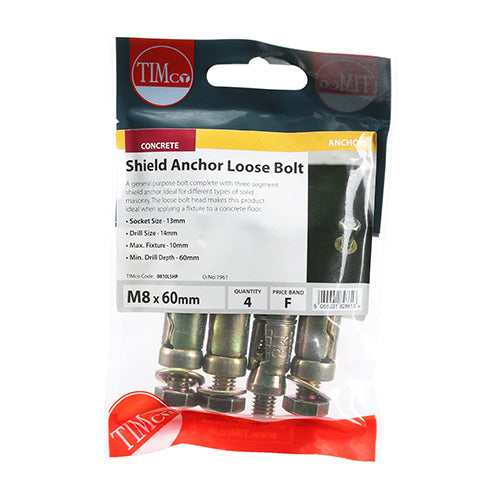

TIMCO Shield Anchors Loose Bolt Gold - M8:10L (M8 x 60)

TIMCO Shield Anchors Loose Bolt Gold - M8:10L (M8 x 60)

Product Code: 0810LSHP

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Bolt Length mm: 60
• Brand: TIMCO
• Carton Qty Packs: 10
• Centre Spacing mm: 150
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Ideal for fixing through the fixture once the shield has been installed into substrate.
• Drill Hole Dia. mm: 14.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Bolt grade 8.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 10.0
• Material: Carbon Steel
• Max Fixture Thickness mm: 10
• Min Drill Hole Depth mm: 60
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 15 x 90 x 133
• Pack Quantity: 4
• Pack Quantity Unit: Pieces
• Pack Type: TIMpac
• Pack Weight kg: 0.200
• Pallet Qty Packs: 3000
• Point Type: B Point
• Product Code: 0810LSHP
• Shield Length mm: 50
• Size Thread Dia. x L mm: M8 x 60
• SKU Barcode: 5055331828613
• Socket Size mm: 13
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M8
• Thread Type: Metric
• Type: Loose
