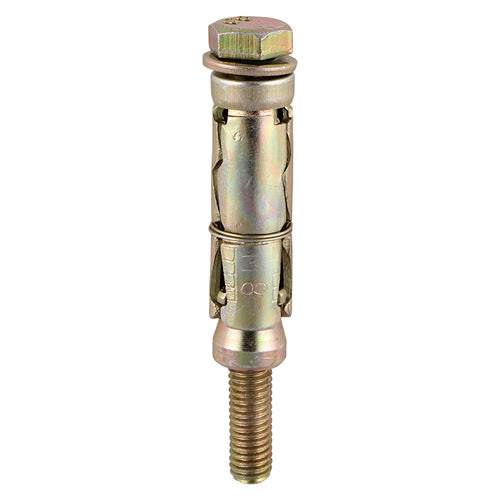

TIMCO Shield Anchors Loose Bolt Gold - M6:10L

TIMCO Shield Anchors Loose Bolt Gold - M6:10L

Product Code: 0610LSH

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Bolt Length mm: 50
• Brand: TIMCO
• Carton Qty Packs: 8
• Centre Spacing mm: 135
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Ideal for fixing through the fixture once the shield has been installed into substrate.
• Drill Hole Dia. mm: 12.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Bolt grade 8.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 8.0
• Included Items: M6 Form A Washers (Qty 100)
• Material: Carbon Steel
• Max Fixture Thickness mm: 10
• Min Drill Hole Depth mm: 55
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 232 x 96 x 68
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 2.760
• Pallet Qty Packs: 208
• Point Type: B Point
• Product Code: 0610LSH
• Shield Length mm: 45
• SKU Barcode: 5055017564071
• Socket Size mm: 10
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M6
• Thread Type: Metric
• Type: Loose
• Washer Size mm: M6
