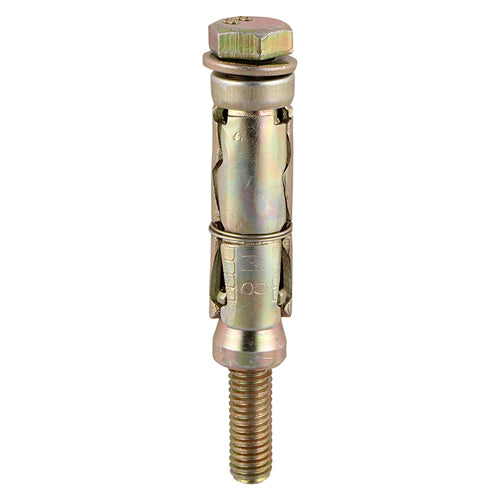

TIMCO Shield Anchors Loose Bolt Gold - M12:60L

TIMCO Shield Anchors Loose Bolt Gold - M12:60L

Product Code: 1260LSH

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Bolt Length mm: 140
• Brand: TIMCO
• Carton Qty Packs: 12
• Centre Spacing mm: 225
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Ideal for fixing through the fixture once the shield has been installed into substrate.
• Drill Hole Dia. mm: 20.0
• Feature 1: Compatible with most types of metric threaded components
• Feature 2: A three segmented expansion anchor used in concrete, brick or stone
• Feature 3: Torque controlled
• Feature 4: Bolt grade 8.8
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 14.0
• Included Items: M12 Form A Washers (Qty 10)
• Material: Carbon Steel
• Max Fixture Thickness mm: 60
• Min Drill Hole Depth mm: 85
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 204 x 90 x 74
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.846
• Pallet Qty Packs: 288
• Point Type: B Point
• Product Code: 1260LSH
• Shield Length mm: 75
• SKU Barcode: 5055017564200
• Socket Size mm: 19
• Substrates: Concrete, Stone, Brick
• Thread Dia. mm: M12
• Thread Type: Metric
• Type: Loose
• Washer Size mm: M12
