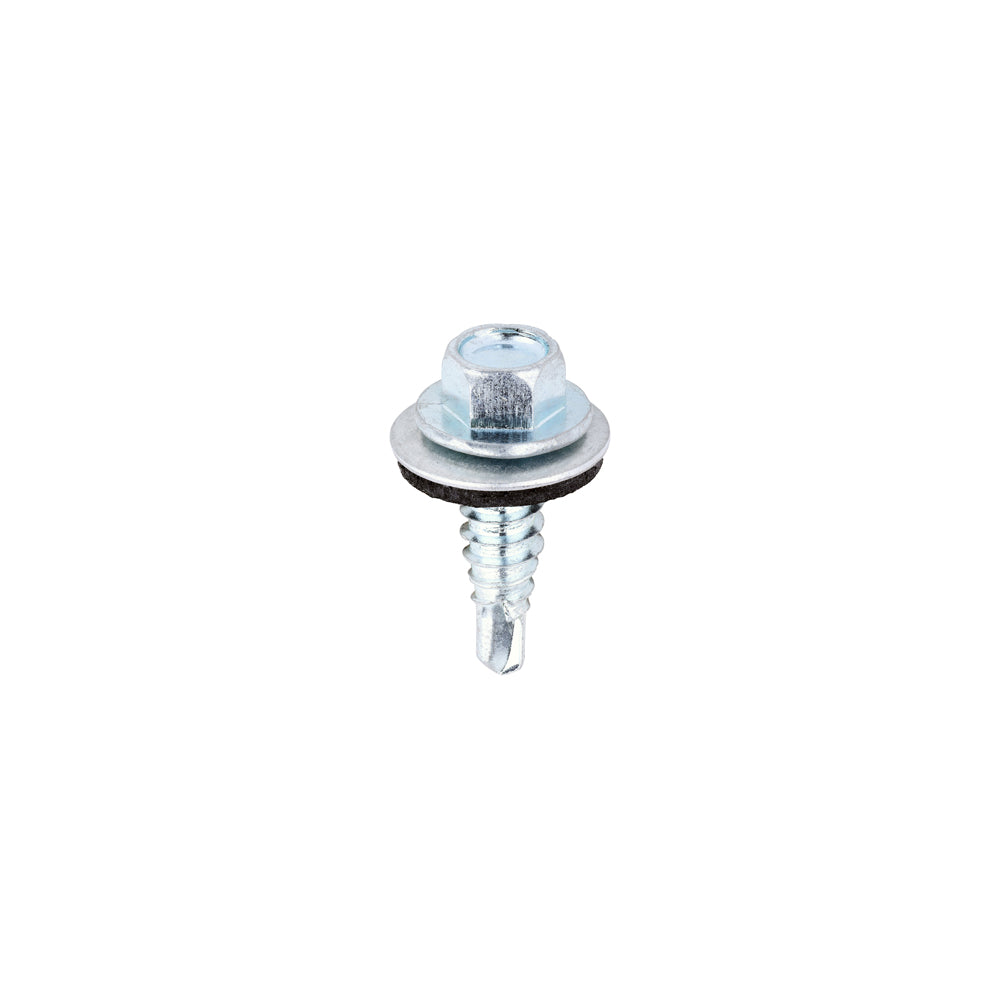

TIMCO Sheet Steel Stitching Screws Zinc with EPDM Washer - 6.3 x 22

TIMCO Sheet Steel Stitching Screws Zinc with EPDM Washer - 6.3 x 22

Product Code: ZS22W16

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 30
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head.
• Diameter mm: 6.3
• Drill Tip Length mm: 4.40
• Effective Thread Length mm: 9
• EPDM Washer mm: 16
• Finish: Zinc
• Fixed Washer Dia. mm: 11.00
• Head Height mm: 5.62
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 22
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 1.6
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 157 x 137 x 34
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Bag
• Pack Weight kg: 0.664
• Pallet Qty Packs: 1,080
• Point Type: Self-Drilling No.2 Reduced
• Product Code: ZS22W16
• Rec RPM: 1,000 - 1,800
• Size mm: 6.3 x 22
• SKU Barcode: 5055893325766
• Socket Size mm: 8
• Substrates: Thin Sheet Metal
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.3
• Thread Type: 60° Tapered Self-Tapping
• Type: For Sheet Steel
