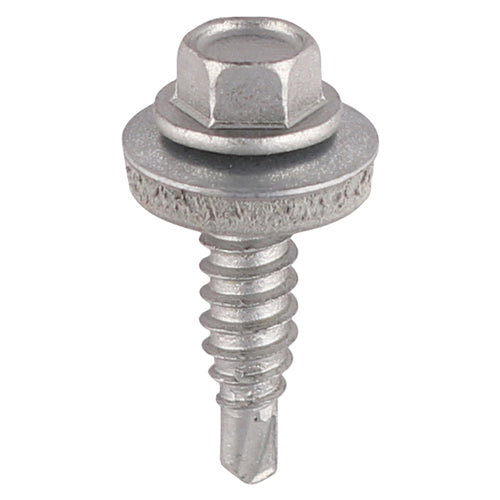

TIMCO Sheet Steel Stitching Screws Exterior Silver with EPDM Washer - 6.3 x 25

TIMCO Sheet Steel Stitching Screws Exterior Silver with EPDM Washer - 6.3 x 25

Product Code: S25W16BB

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 5
• Colour: Silver
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head.
• Diameter mm: 6.3
• Drill Tip Length mm: 5.50
• Effective Thread Length mm: 12
• EPDM Washer mm: 16
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.60
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 25
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 1.6
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 265 x 152 x 50

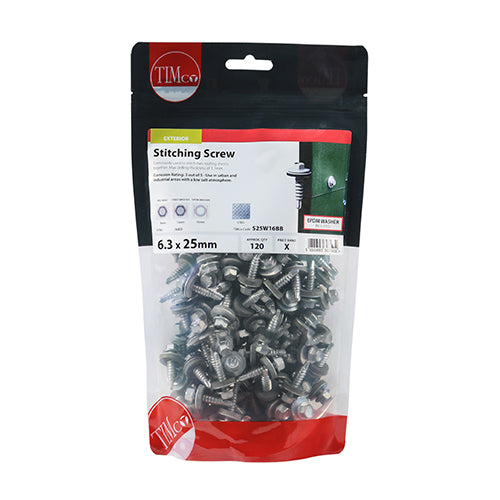

• Pack Quantity: 120
• Pack Quantity Unit: Pieces
• Pack Type: TIMbag
• Pack Weight kg: 0.800
• Pallet Qty Packs: 600
• Point Type: Self-Drilling No.2 Reduced
• Product Code: S25W16BB
• Rec RPM: 1,000 - 1,800
• Size mm: 6.3 x 25
• SKU Barcode: 5055893307502
• Socket Size mm: 8
• Substrates: Thin Sheet Metal
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.3
• Thread Type: 60° Tapered Self-Tapping
• Type: For Sheet Steel
