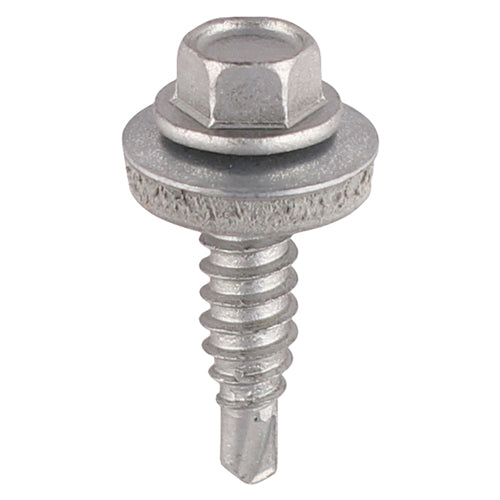

TIMCO Sheet Steel Stitching Screws Exterior Silver with EPDM Washer - 6.3 x 22

TIMCO Sheet Steel Stitching Screws Exterior Silver with EPDM Washer - 6.3 x 22

Product Code: S22W16B

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 35
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head.
• Diameter mm: 6.3
• Drill Tip Length mm: 5.50
• Effective Thread Length mm: 9
• EPDM Washer mm: 16
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.60
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 22
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 1.6
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 96 x 92 x 66
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.660
• Pallet Qty Packs: 840
• Point Type: Self-Drilling No.2 Reduced
• Product Code: S22W16B
• Rec RPM: 1,000 - 1,800
• Size mm: 6.3 x 22
• SKU Barcode: 5055331820075
• Socket Size mm: 8
• Substrates: Thin Sheet Metal
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.3
• Thread Type: 60° Tapered Self-Tapping
• Type: For Sheet Steel
