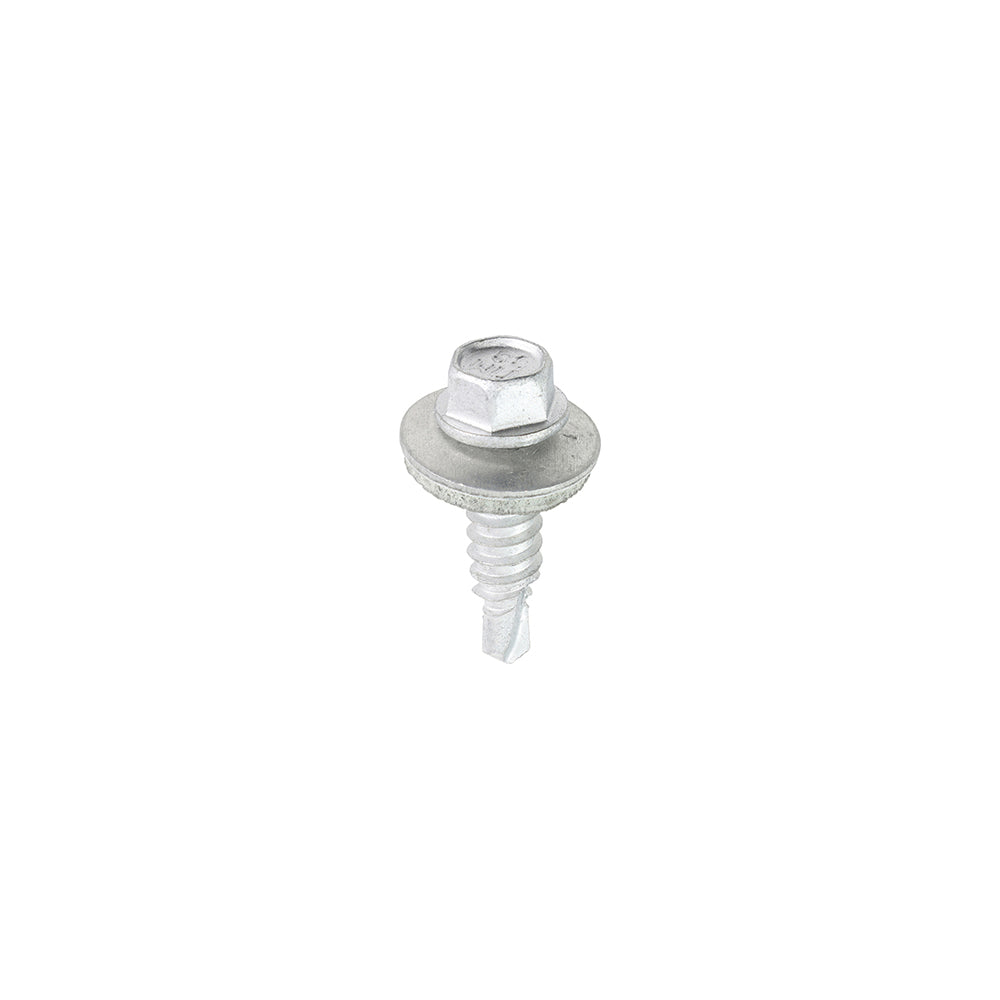

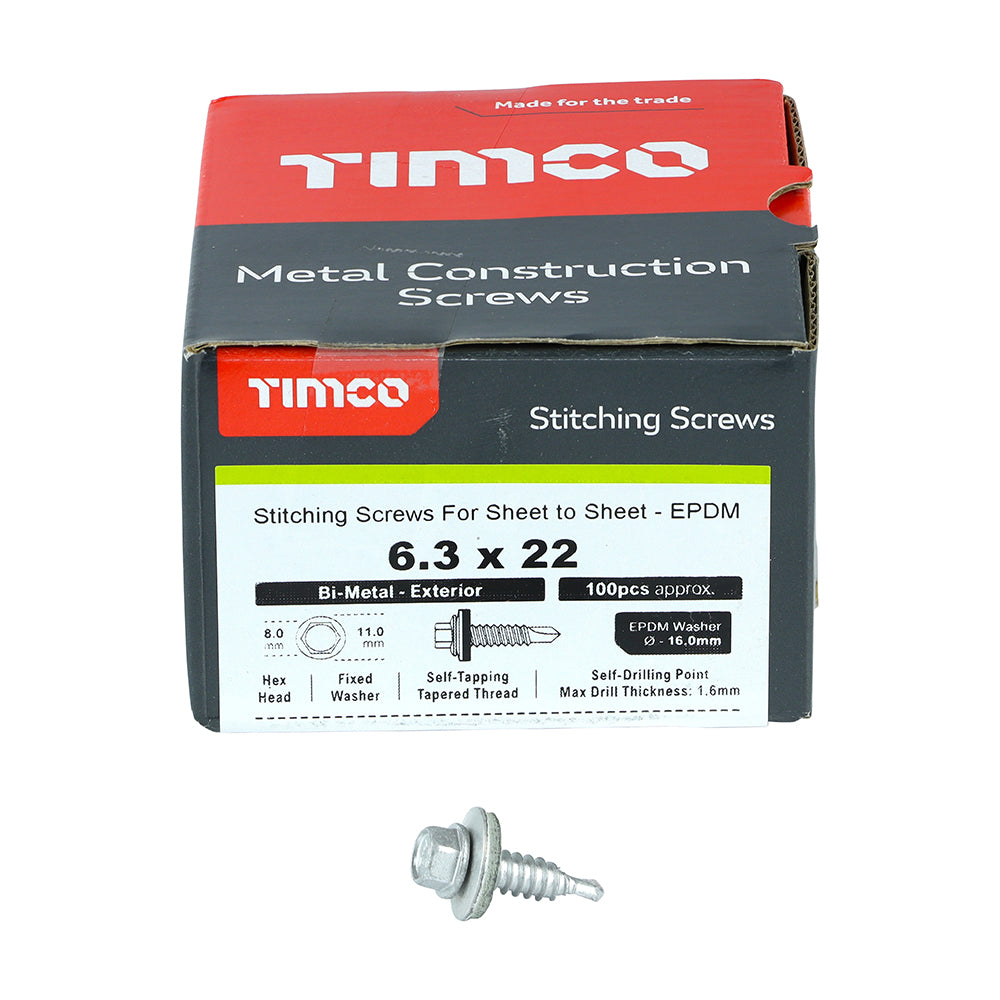

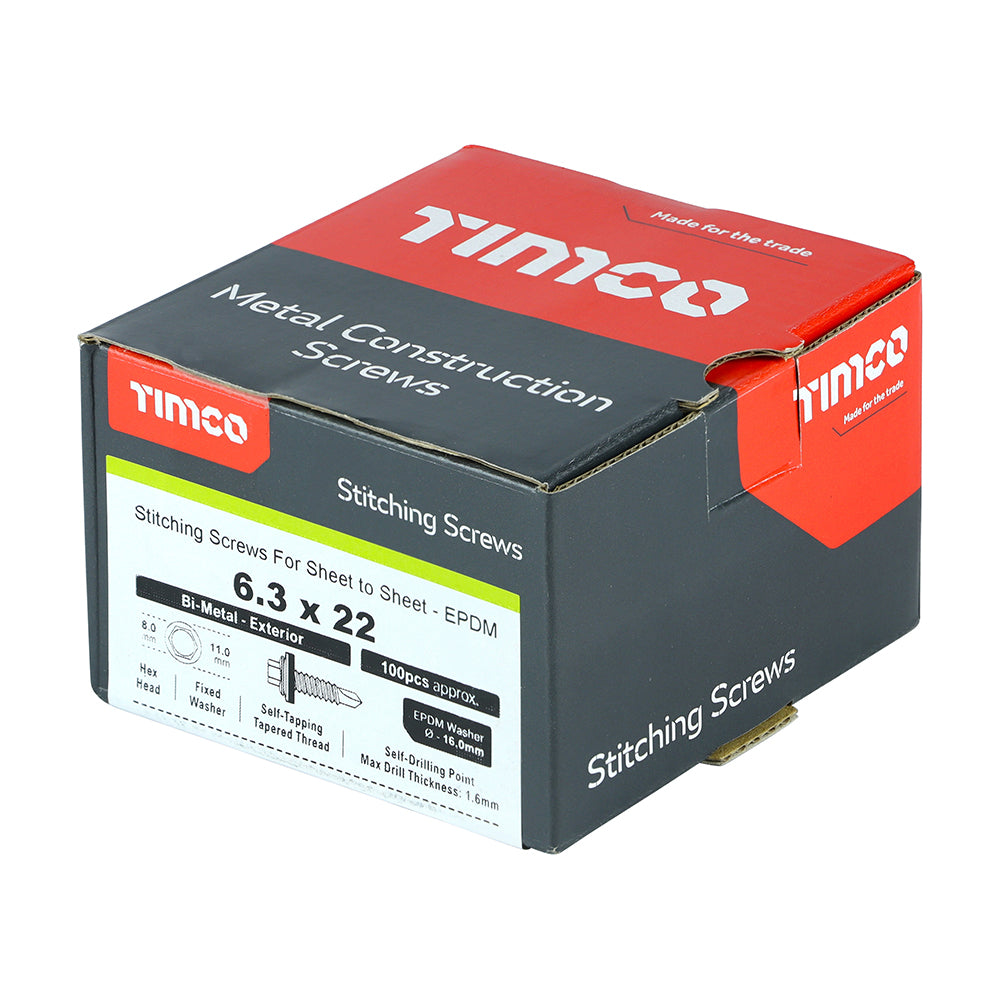

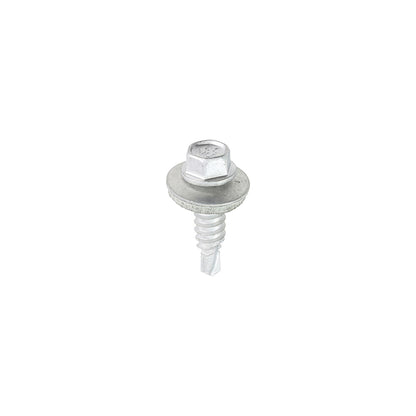

TIMCO Sheet Steel Stitching Screws A2 Stainless Steel Bi-Metal with EPDM Washer - 6.3 x 22

TIMCO Sheet Steel Stitching Screws A2 Stainless Steel Bi-Metal with EPDM Washer - 6.3 x 22

Product Code: BMS22W16

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 35
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head.
• Diameter mm: 6.3
• Drill Tip Length mm: 5.50
• Effective Thread Length mm: 9
• EPDM Washer mm: 16
• Feature 1: Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 11.00
• Head Height mm: 5.30
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 22
• Material: Bi-Metal/A2-304 Stainless Steel/Carbon Steel
• Max Drilling Thickness mm: 1.6
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 95 x 90 x 60
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.64
• Pallet Qty Packs: 840
• Point Type: Self-Drilling No.1 Reduced
• Product Code: BMS22W16
• Rec RPM: 1,000 - 1,800
• Size mm: 6.3 x 22
• SKU Barcode: 5055893352045
• Socket Size mm: 8
• Substrates: Thin Sheet Metal
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.3
• Thread Type: 60° Tapered Self-Tapping
• Type: For Sheet Steel
