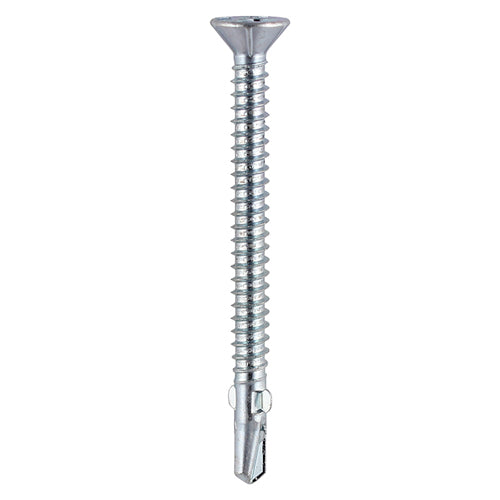

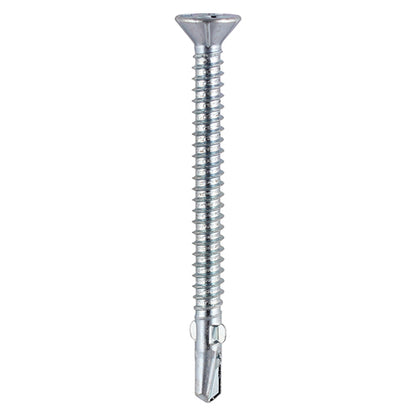

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section Silver Screws - 4.8 x 38

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section Silver Screws - 4.8 x 38

Product Code: LW38BB

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 5
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Specifically designed to attach wood to metal (Max. 4mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.
• Diameter mm: 4.8
• Drill Tip Length mm: 13.00
• Driver Bit Size: PH2
• Effective Thread Length mm: 16
• Finish: Zinc
• Head Dia. mm: 10.50
• Head Height mm: 5.00
• Head Type: Countersunk with Ribs
• Length mm: 38
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 4.0
• Max Fixture Thickness mm: 18
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 265 x 152 x 50
• Pack Quantity: 260
• Pack Quantity Unit: Pieces
• Pack Type: TIMbag
• Pack Weight kg: 1.130
• Pallet Qty Packs: 600
• Point Type: Self-Drilling
• Product Code: LW38BB
• Rec RPM: 1,000 - 1,800
• Recess Type: Phillips
• Size mm: 4.8 x 38
• SKU Barcode: 5055893307519
• Substrates: Steel, Timber
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 4.8
• Thread Type: Coarse Self-Tapping
• To Suit Timber mm: <18
• Type: For Timber to Light Section Steel
