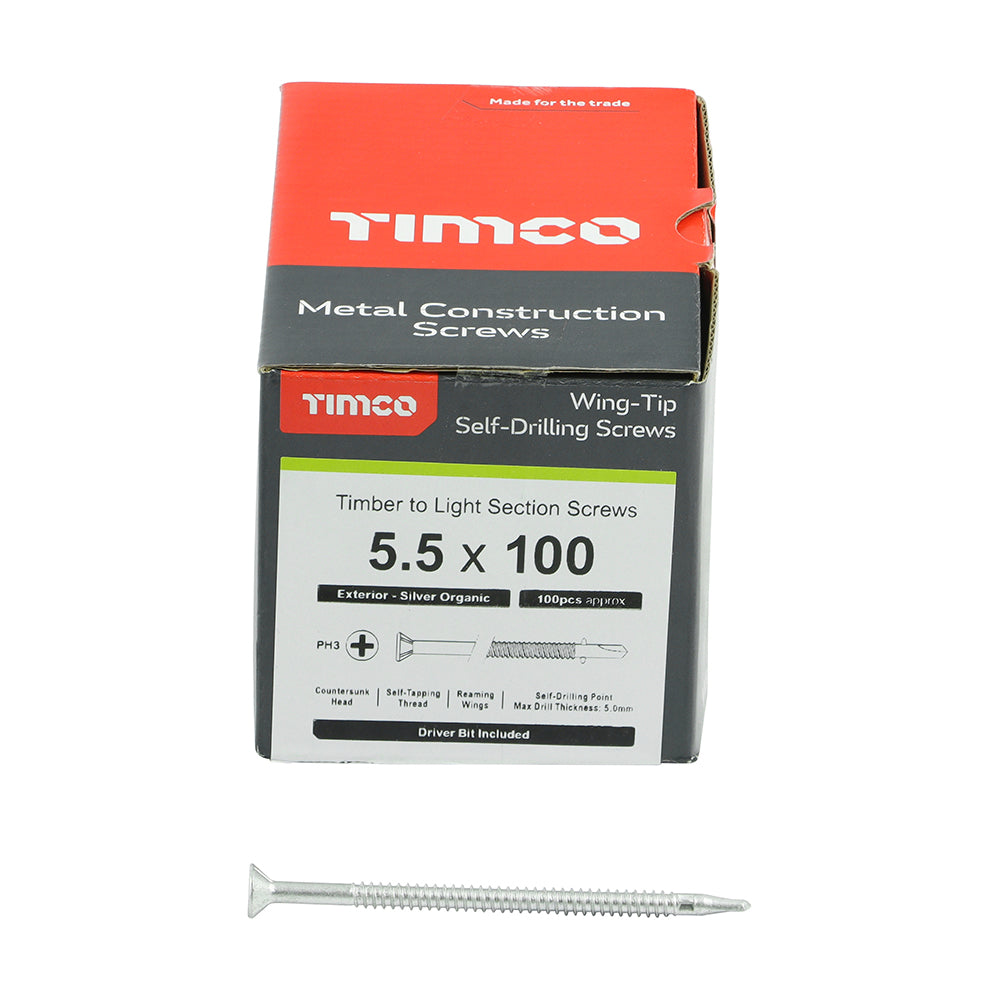

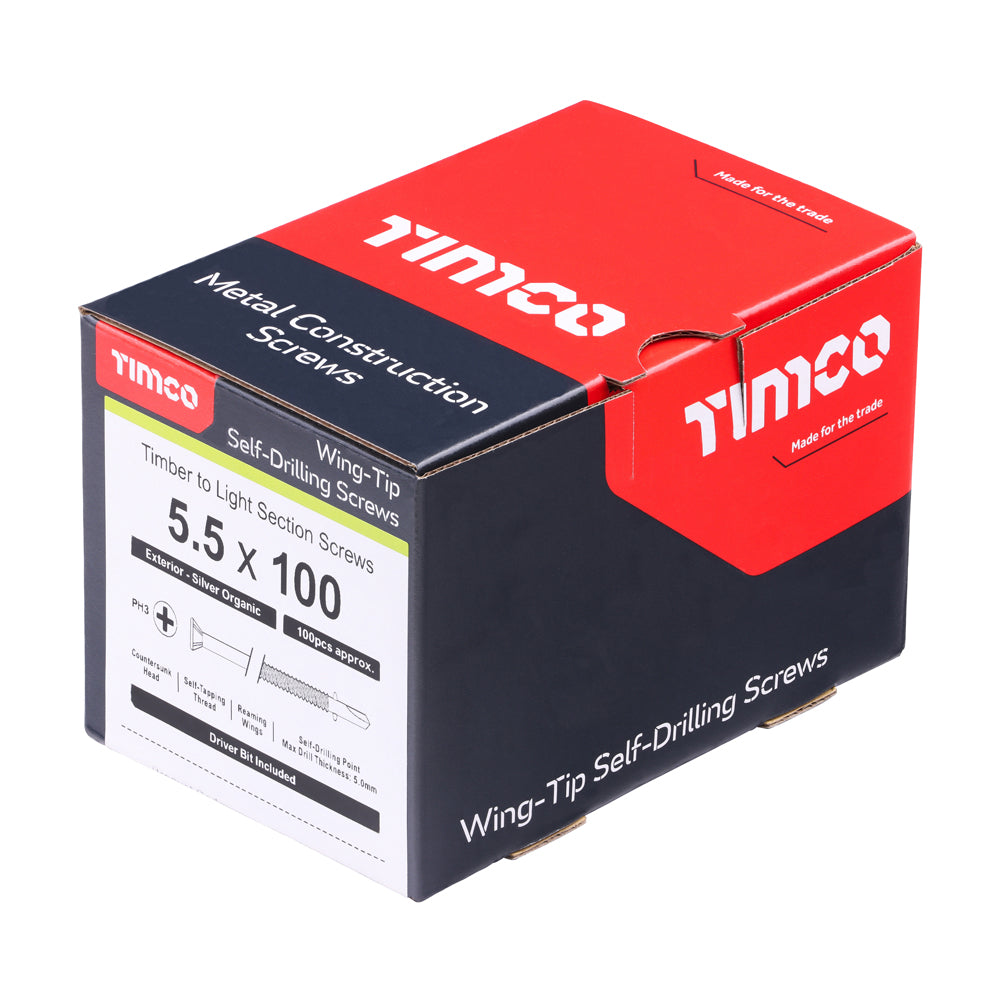

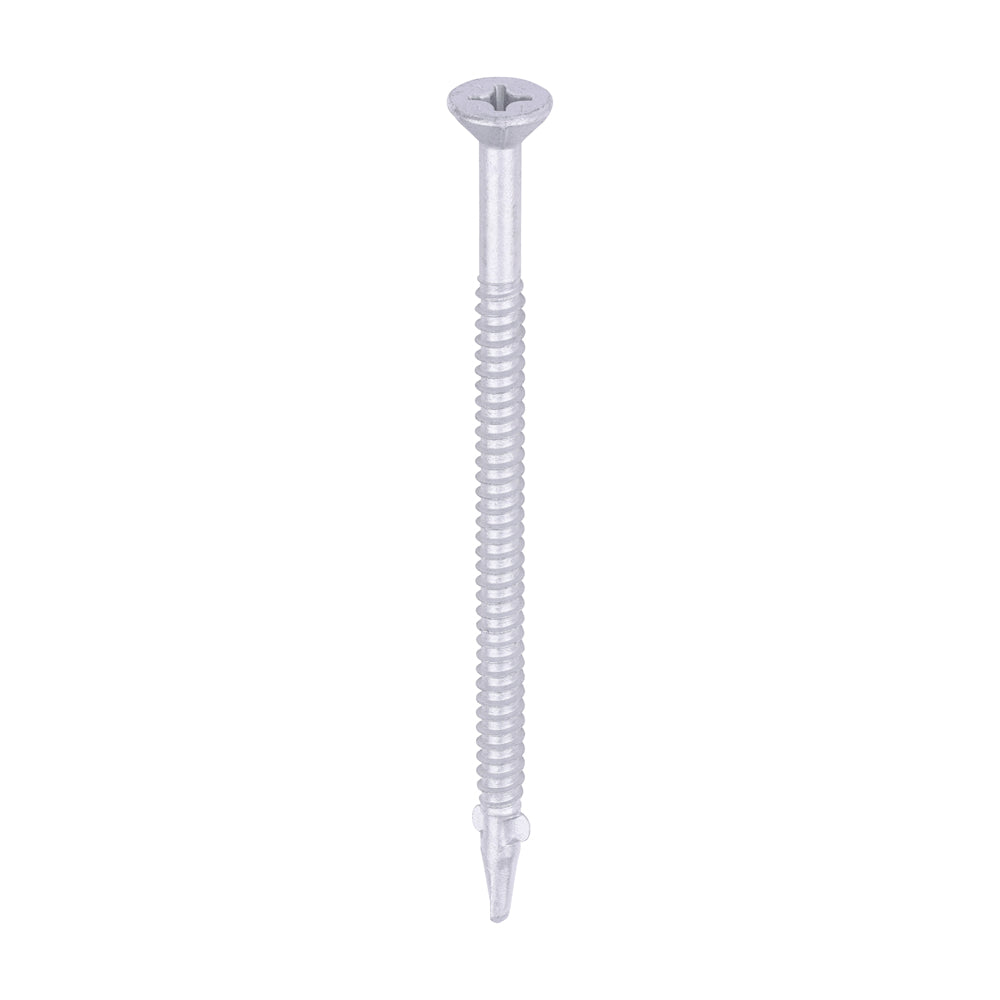

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section Exterior Silver Screws - 5.5 x 100

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section Exterior Silver Screws - 5.5 x 100

Product Code: LW100S

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 16
• Colour: Silver
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Specifically designed to attach wood to metal (Max. 5mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.
• Diameter mm: 5.5
• Drill Tip Length mm: 15.00
• Driver Bit Size: PH3
• Effective Thread Length mm: 61 *P/T
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Finish: Exterior (Silver Organic)
• Head Dia. mm: 11.00
• Head Height mm: 5.00
• Head Type: Countersunk with Ribs
• Included Items: PH3 S2 Bit (Qty 1)
• Length mm: 100
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 5.0
• Max Fixture Thickness mm: 78
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 136 x 94 x 92
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.280
• Pallet Qty Packs: 384
• Point Type: Self-Drilling No.3
• Product Code: LW100S
• Rec RPM: 1,000 - 1,800
• Recess Type: Phillips
• Size mm: 5.5 x 100
• SKU Barcode: 5055893316856
• Substrates: Steel, Timber
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.5
• Thread Type: Coarse Self-Tapping, *P/T = Partially Threaded
• To Suit Timber mm: 64 - 78
• Type: For Timber to Light Section Steel
