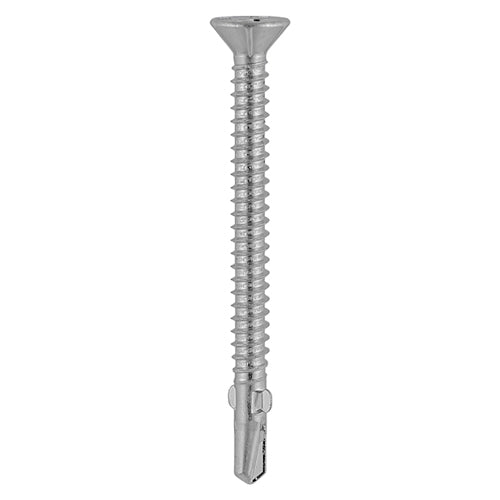

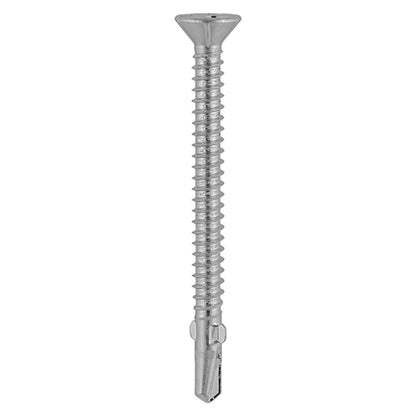

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 65

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 65

Product Code: BMLW65

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 12
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Specifically designed to attach wood to light section steel (Max. 5mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.
• Diameter mm: 5.5
• Drill Tip Length mm: 13.00
• Driver Bit Size: PH3
• Effective Thread Length mm: 41
• Feature 1: Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
• Finish: Exterior (Silver Organic)
• Head Dia. mm: 10.50
• Head Height mm: 3.00
• Head Type: Countersunk with Ribs
• Length mm: 65
• Material: Bi-Metal/A2-304 Stainless Steel/Carbon Steel
• Max Drilling Thickness mm: 5.0
• Max Fixture Thickness mm: 44
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 180 x 90 x 90
• Pack Quantity: 200
• Pack Quantity Unit: Pieces

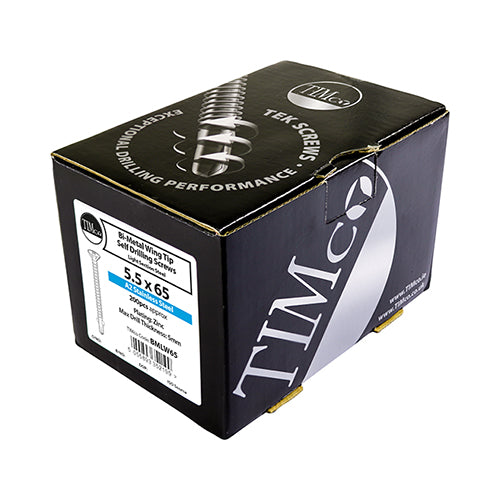

• Pack Type: Box
• Pack Weight kg: 1.720
• Pallet Qty Packs: 288
• Point Type: Self-Drilling No.3
• Product Code: BMLW65
• Rec RPM: 1,000 - 1,800
• Recess Type: Phillips
• Size mm: 5.5 x 65
• SKU Barcode: 5055893352199
• Substrates: Steel, Timber
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: Coarse Self-Tapping
• To Suit Timber mm: 29 - 43
• Type: For Timber to Light Section Steel
