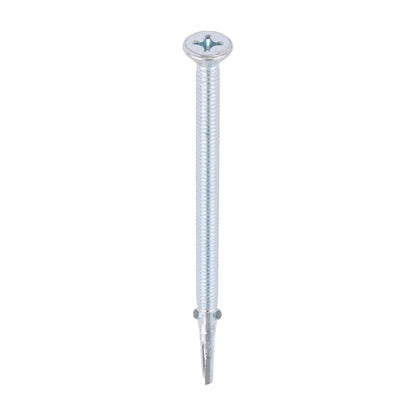

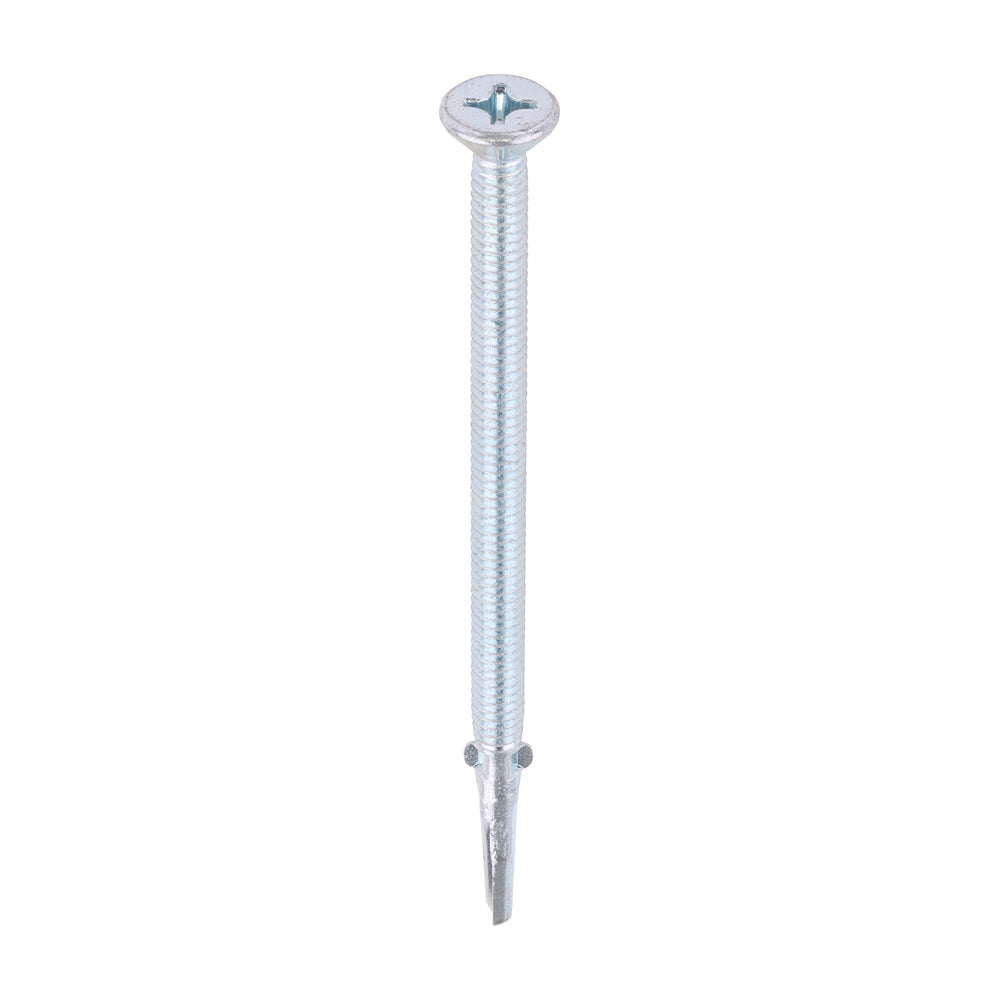

TIMCO Self-Drilling Wing-Tip Steel to Timber Heavy Section Silver Screws - 5.5 x 100

TIMCO Self-Drilling Wing-Tip Steel to Timber Heavy Section Silver Screws - 5.5 x 100

Product Code: HW100B

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 16
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.
• Diameter mm: 5.5
• Drill Tip Length mm: 25.00
• Driver Bit Size: PH3
• Effective Thread Length mm: 63
• Finish: Zinc
• Head Dia. mm: 11.00
• Head Height mm: 5.00
• Head Type: Countersunk with Ribs
• Included Items: PH3 S2 Bit (Qty 1)
• Length mm: 100
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 12.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 138 x 94 x 92
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.440
• Pallet Qty Packs: 384
• Point Type: Self-Drilling No.5
• Product Code: HW100B
• Rec RPM: 1,000 - 1,800
• Recess Type: Phillips
• Size mm: 5.5 x 100
• SKU Barcode: 5056110833866
• Steel and Fixture Thickness mm: 70.0
• Substrates: Steel, Timber
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: Metric
• To Suit Timber mm: 64 - 78
• Type: For Timber to Heavy Section Steel
