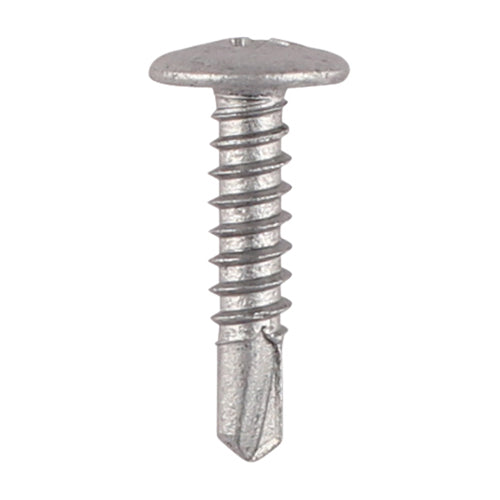

TIMCO Self-Drilling Metal Framing Low Profile Wafer Head Exterior Silver Screws - 4.8 x 22 (200pcs)

TIMCO Self-Drilling Metal Framing Low Profile Wafer Head Exterior Silver Screws - 4.8 x 22

Product Code: 22LPW

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 35
• CE Standard Web: BS EN 14566:2008, BS EN 10666:2008
• Colour: Silver
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: A light duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
• Diameter mm: 4.8
• Drill Tip Length mm: 6.50
• Driver Bit Size: PH2
• Effective Thread Length mm: 13
• Feature 1: Large head diameter for increased clamping.
• Feature 2: Coarse 60° self-tapping thread for extreme grip & excellent pull-out
• Feature 3: Phillips No.2 recess for a positive drive
• Feature 4: Fire Classification - A1
• Finish: Exterior (Silver Organic)
• Gauge: 10
• Head Dia. mm: 11.60
• Head Height mm: 2.50
• Head Type: Low Profile Wafer
• Length inch:
• Length mm: 22
• Material: Carbon Steel
• Max Drilling Thickness mm: 4.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 95 x 90 x 60
• Pack Quantity: 200
• Pack Quantity Unit: Pieces

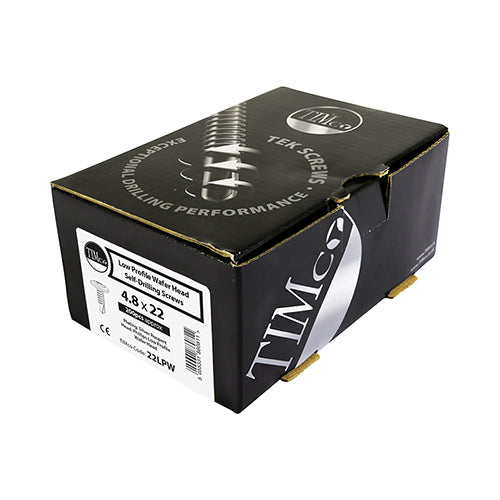

• Pack Type: Box
• Pack Weight kg: 0.563
• Pallet Qty Packs: 840
• Point Type: Self-Drilling
• Product Code: 22LPW
• Rec RPM: 1,800 - 2,500
• Recess Type: Phillips
• Size imp.: 10 x
• Size mm: 4.8 x 22
• SKU Barcode: 5055331860811
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 4.8
• Thread Type: 60° Self-Tapping
