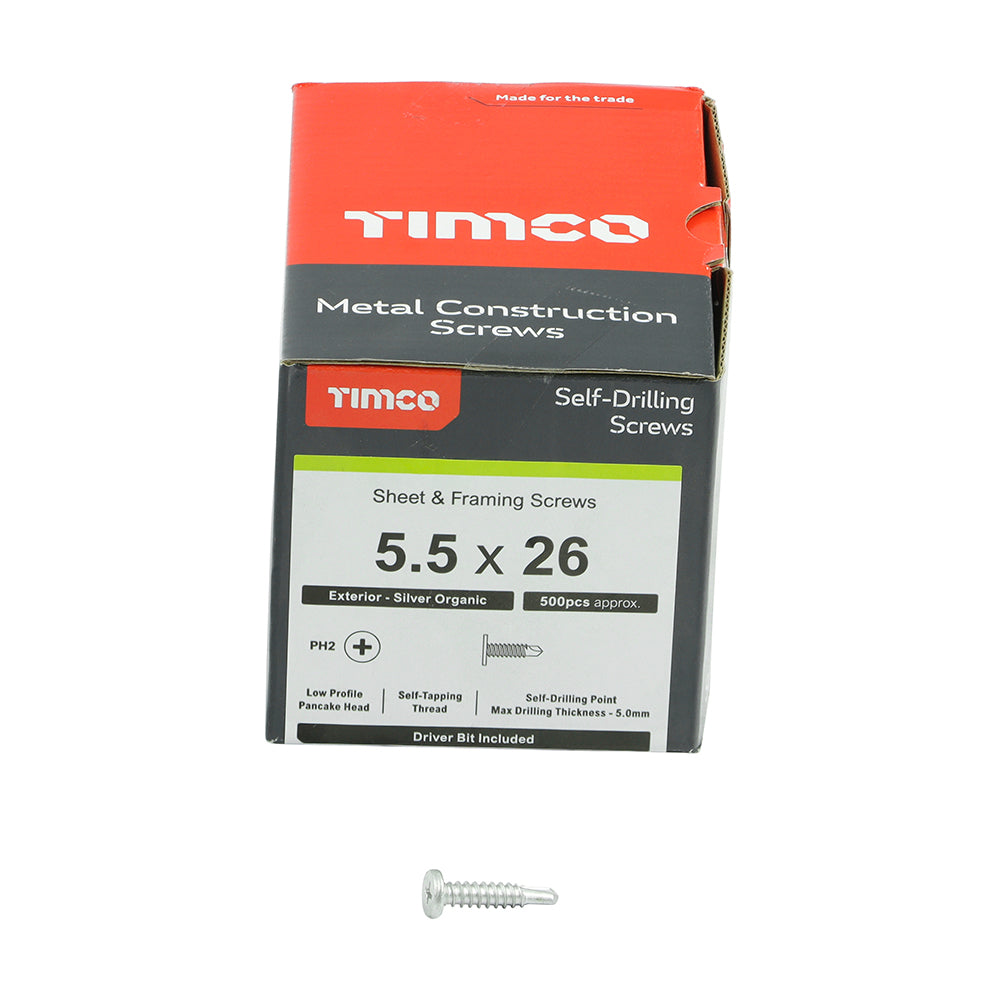

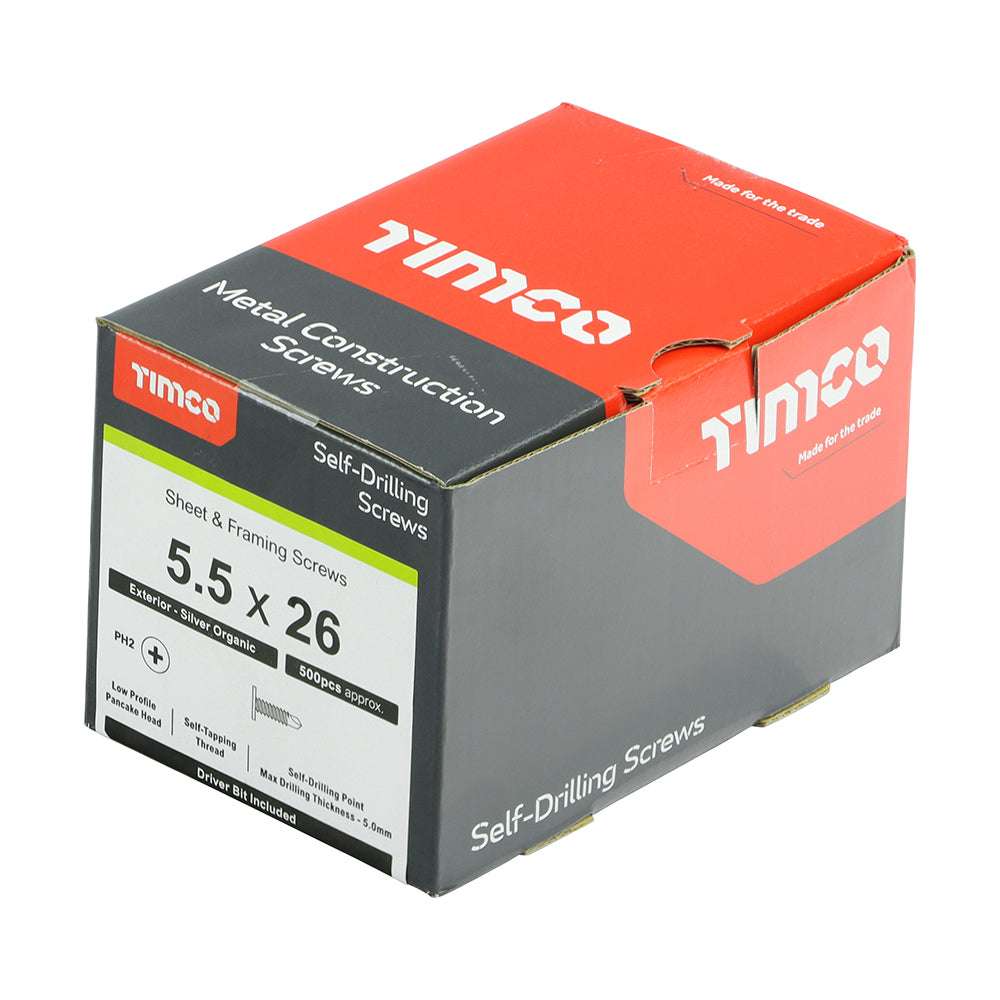

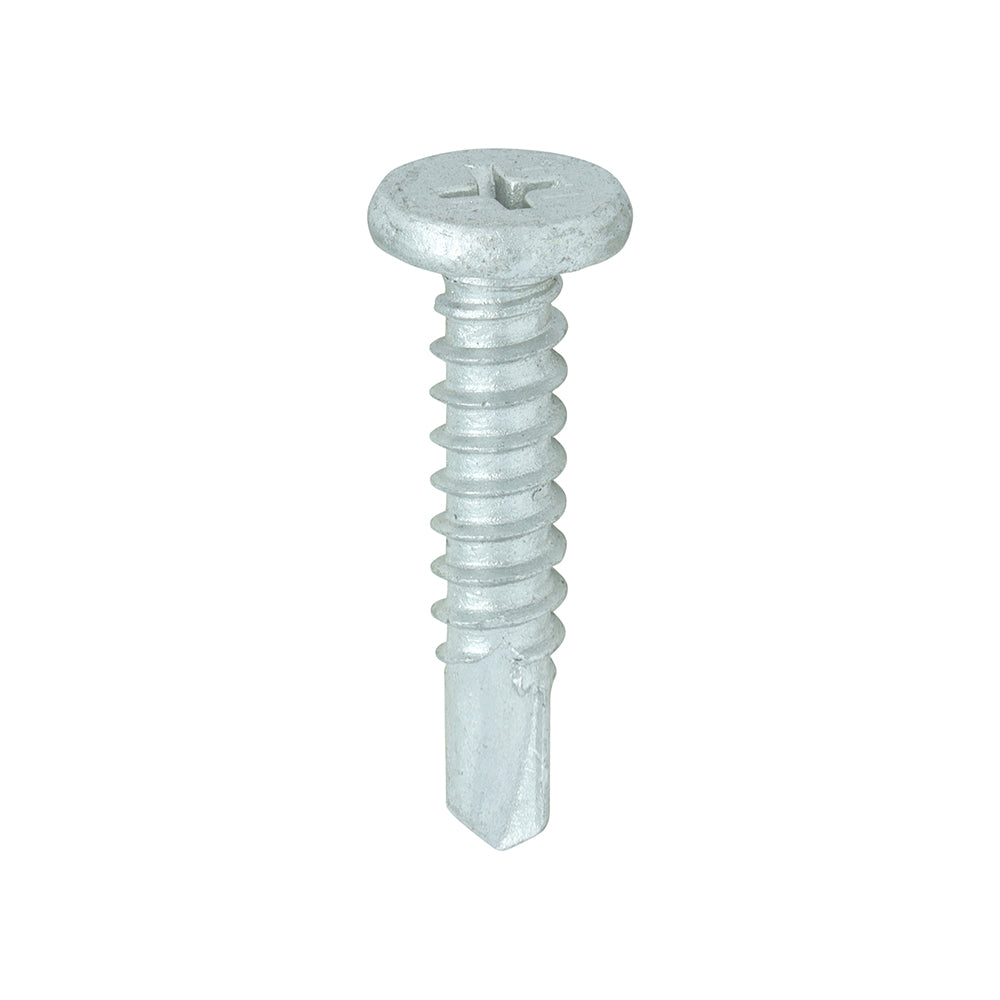

TIMCO Self-Drilling Metal Framing Low Profile Pancake Head Exterior Silver Screws - 5.5 x 26

TIMCO Self-Drilling Metal Framing Low Profile Pancake Head Exterior Silver Screws - 5.5 x 26

Product Code: FP26

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• CE Standard Web: BS EN 14566:2008, BS EN 10666:2008
• Colour: Silver
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
• Diameter mm: 5.5
• Drill Tip Length mm: 6.00
• Driver Bit Size: PH2
• Effective Thread Length mm: 16
• Feature 1: Metsec Tested
• Feature 2: Large head diameter for increased clamping
• Feature 3: Coarse 60° self-tapping thread for extreme grip & excellent pull-out
• Feature 4: Phillips No.2 recess for a positive drive
• Feature 5: Fire Classification - A1
• Finish: Exterior (Silver Organic)
• Gauge: 12
• Head Dia. mm: 10.30
• Head Height mm: 2.00
• Head Type: Low Profile Pancake
• Included Items: PH2 S2 Bit (Qty 1)
• Length inch: 1
• Length mm: 26
• Material: Carbon Steel
• Max Drilling Thickness mm: 5.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 135 x 90 x 90
• Pack Quantity: 500
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.854
• Pallet Qty Packs: 384
• Point Type: Self-Drilling
• Product Code: FP26
• Rec RPM: 1,000 - 1,800
• Recess Type: Phillips
• Size imp.: 12 x 1
• Size mm: 5.5 x 26
• SKU Barcode: 5055017591312
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: 60° Self-Tapping
