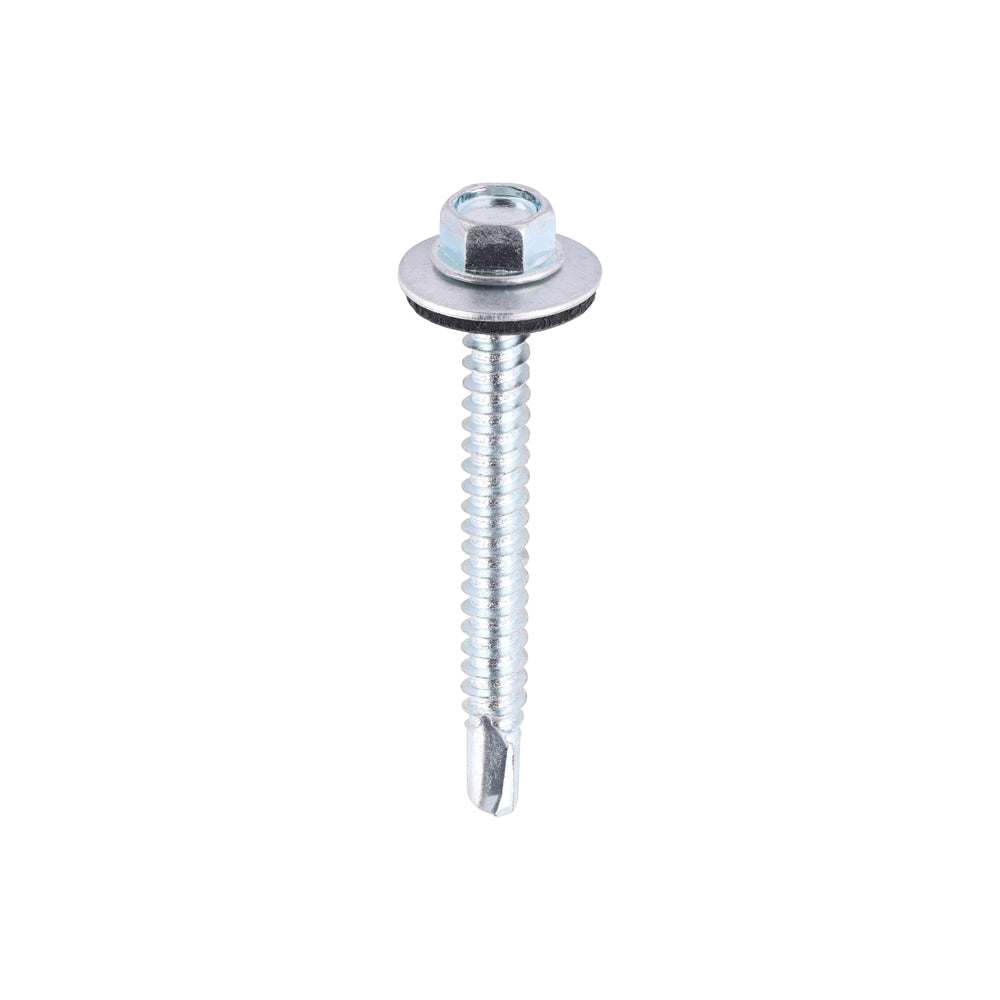

TIMCO Self-Drilling Light Section Silver Screws with EPDM Washer - 5.5 x 50

TIMCO Self-Drilling Light Section Silver Screws with EPDM Washer - 5.5 x 50

Product Code: ZL50W16

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 20
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
• Diameter mm: 5.5
• Drill Tip Length mm: 7.90
• Effective Thread Length mm: 35
• EPDM Washer mm: 16
• Finish: Zinc
• Fixed Washer Dia. mm: 11.00
• Head Height mm: 4.50
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 50
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 5.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 207 x 197 x 32
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Bag
• Pack Weight kg: 0.868
• Pallet Qty Packs: 720
• Point Type: Self-Drilling No.3
• Product Code: ZL50W16
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5 x 50
• SKU Barcode: 5055893325810
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: 60° Self-Tapping
• Type: For Light Section Steel
