TIMCO Self-Drilling Light Section Silver Screws - 10 x 5/8

TIMCO Self-Drilling Light Section Silver Screws - 10 x 5/8

Product Code: 01058HWSD

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 6
• CE Standard Web: BS EN 14566:2008
• Corrosion Rating: 1 - Clean, dry & low humidity environments

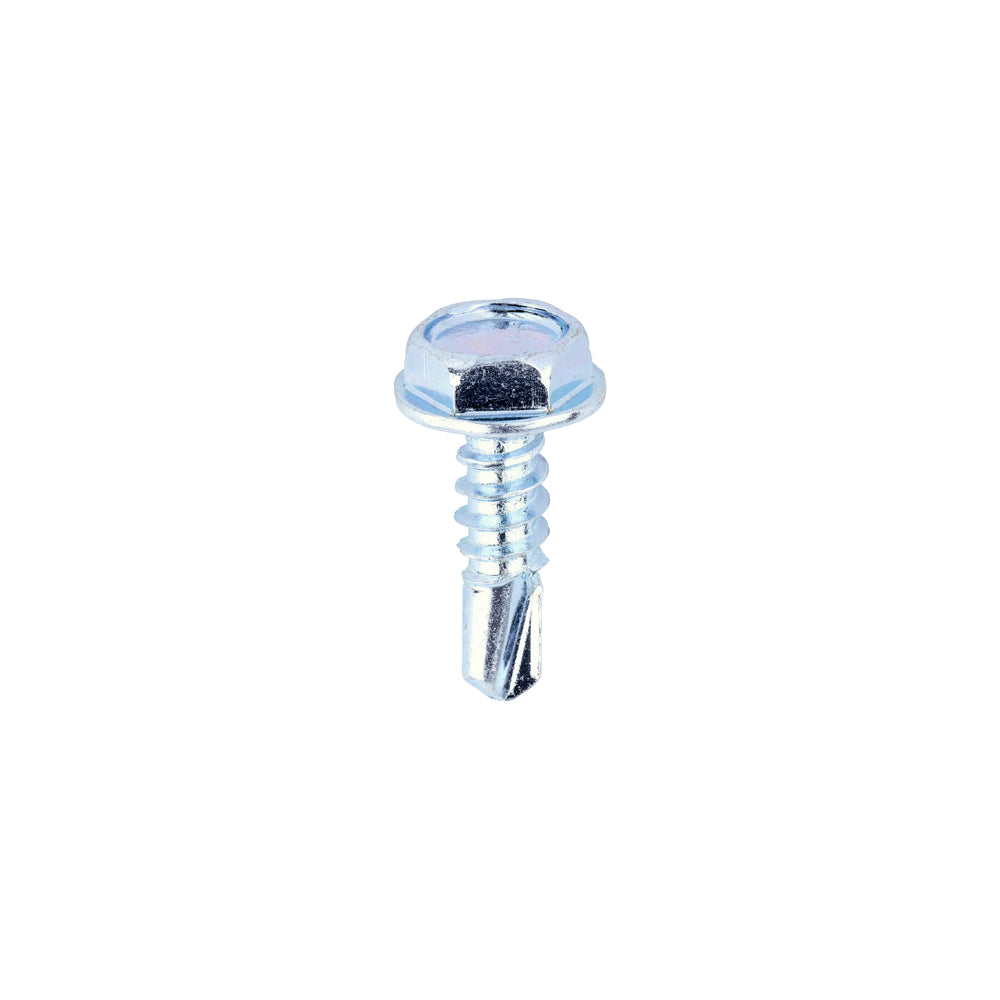

• Description: Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 4.5mm) without the need to pre-drill a hole.
• Diameter mm: 4.8
• Drill Tip Length mm: 5.16
• Effective Thread Length mm: 7
• Feature 1: Fire Classification - A1
• Finish: Zinc
• Fixed Washer Dia. inch:
• Fixed Washer Dia. mm: 10.00
• Head Height mm: 3.00
• Head Type: Hex
• Length inch:
• Length mm: 16
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 4.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 194 x 96 x 90
• Pack Quantity: 1000
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 2.440
• Pallet Qty Packs: 288
• Point Type: Self-Drilling
• Product Code: 01058HWSD
• Rec RPM: 1,800 - 2,500
• Size imp.: 10 x
• Size mm: 4.8 x 16
• SKU Barcode: 5055017521326
• Socket Size inch:
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 4.8
• Thread Type: 60° Self-Tapping
• Type: For Light Section Steel
