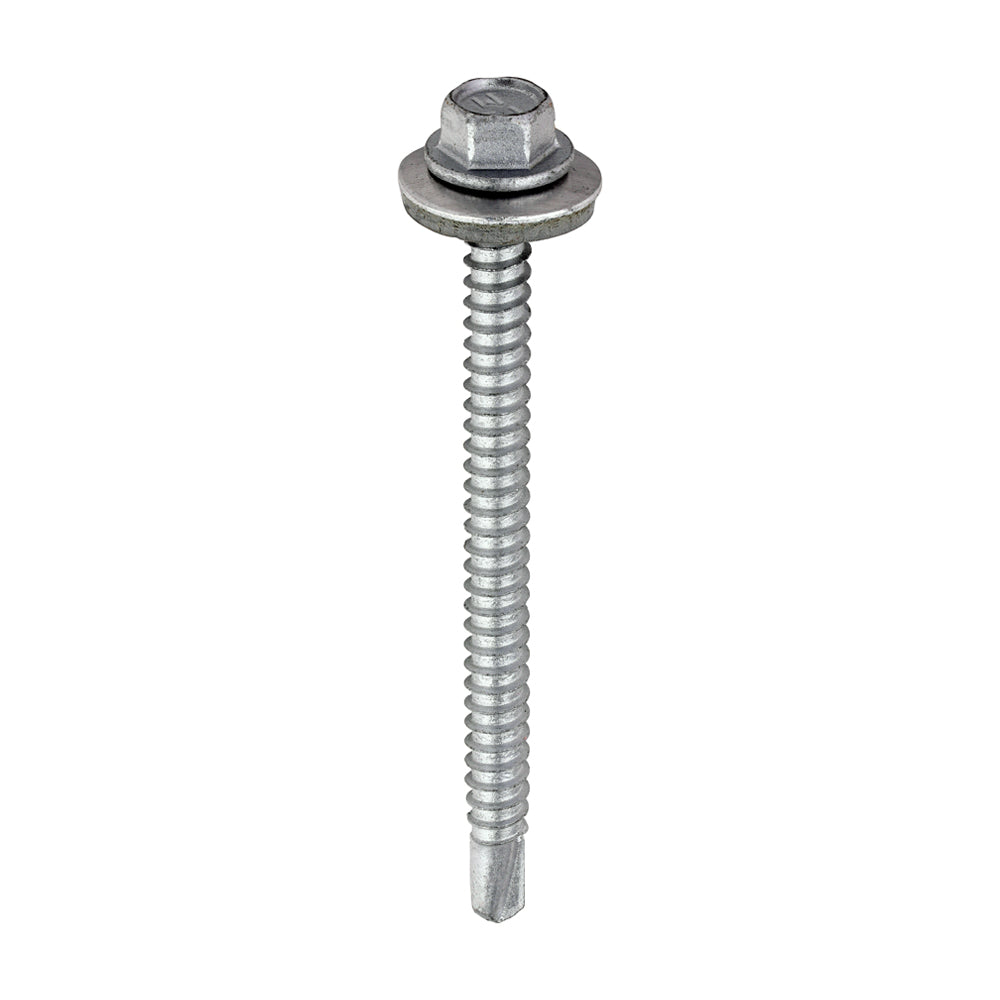

TIMCO Self-Drilling Light Section Screws Exterior Silver with EPDM Washer - 5.5 x 70

TIMCO Self-Drilling Light Section Screws Exterior Silver with EPDM Washer - 5.5 x 70

Product Code: L70W16B

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 16
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
• Diameter mm: 5.5
• Drill Tip Length mm: 8.00
• Effective Thread Length mm: 55
• EPDM Washer mm: 16
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.60
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 70
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 5.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 138 x 94 x 94
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.160
• Pallet Qty Packs: 384
• Point Type: Self-Drilling No.3
• Product Code: L70W16B
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5 x 70
• SKU Barcode: 5055331815002
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: 60° Self-Tapping
• Type: For Light Section Steel
