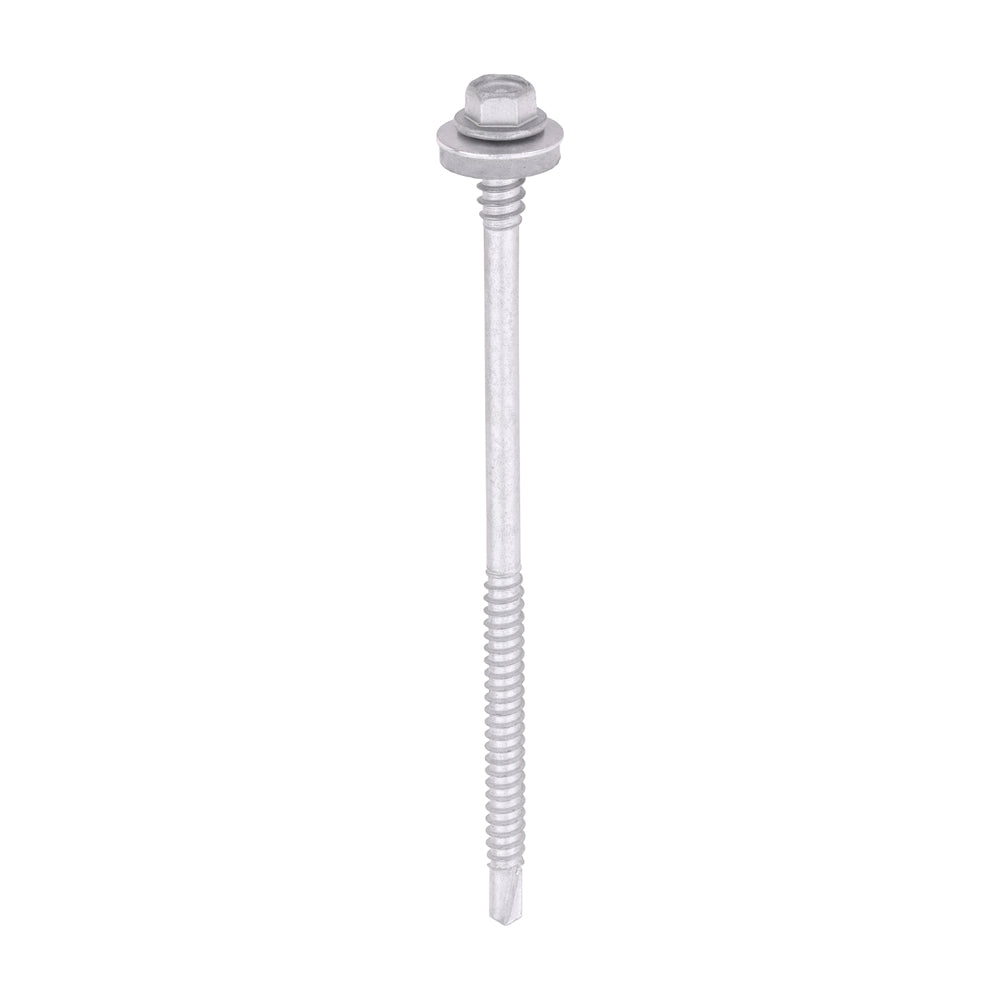

TIMCO Self-Drilling Light Section Composite Panel Screws Exterior Silver with EPDM Washer - 5.5/6.3 x 115

TIMCO Self-Drilling Light Section Composite Panel Screws Exterior Silver with EPDM Washer - 5.5/6.3 x 115

Product Code: LH115W16B

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 8
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
• Diameter mm: 5.5 - 6.3
• Drill Tip Length mm: 8.00
• Effective Thread Length mm: 41
• EPDM Washer mm: 16
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.70
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 115
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 5.0
• Min Max Panel Thickness mm: 65 - 95
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 194 x 134 x 92
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.800
• Pallet Qty Packs: 192
• Point Type: Self-Drilling No.3
• Product Code: LH115W16B
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5/6.3 x 115
• SKU Barcode: 5055331815149
• Socket Size mm: 8
• Substrates: Composite Panel
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.5 - 6.3
• Thread Type: Dual 60° Self-Tapping
• Type: For Light Section Composite Panel
