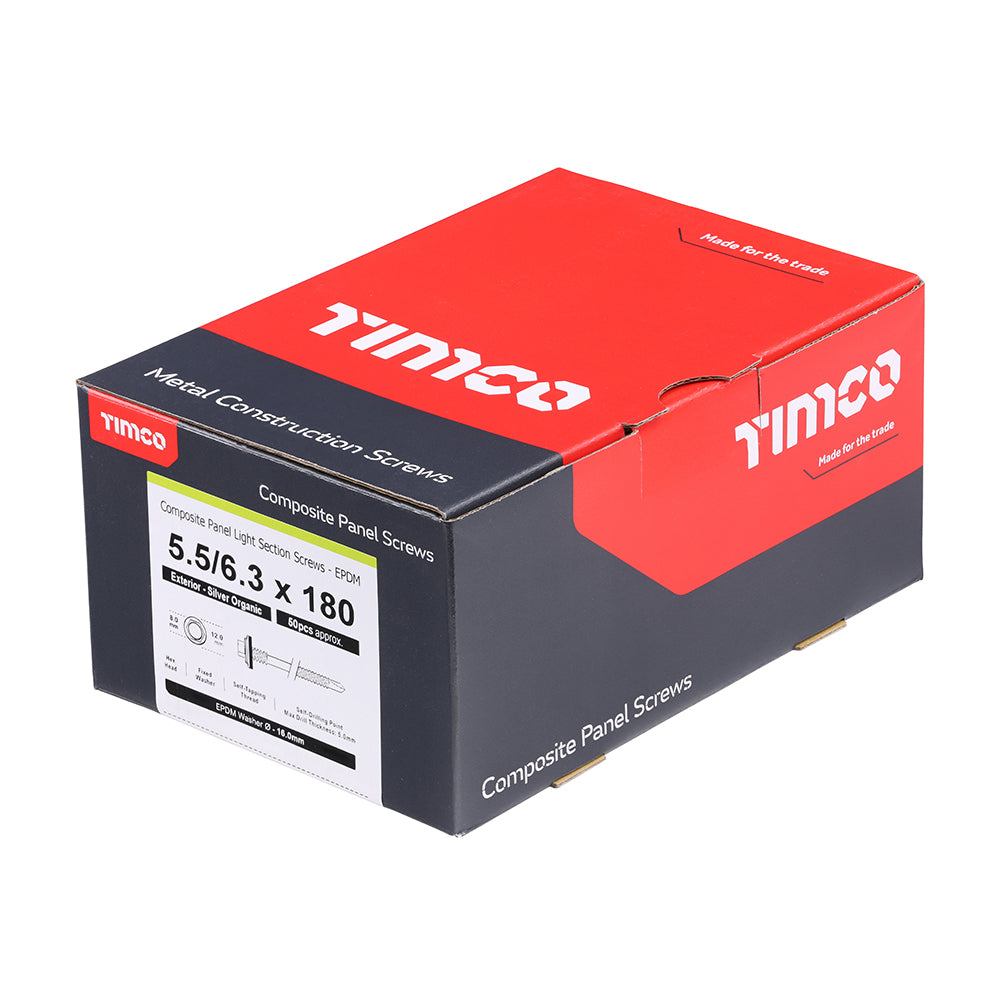

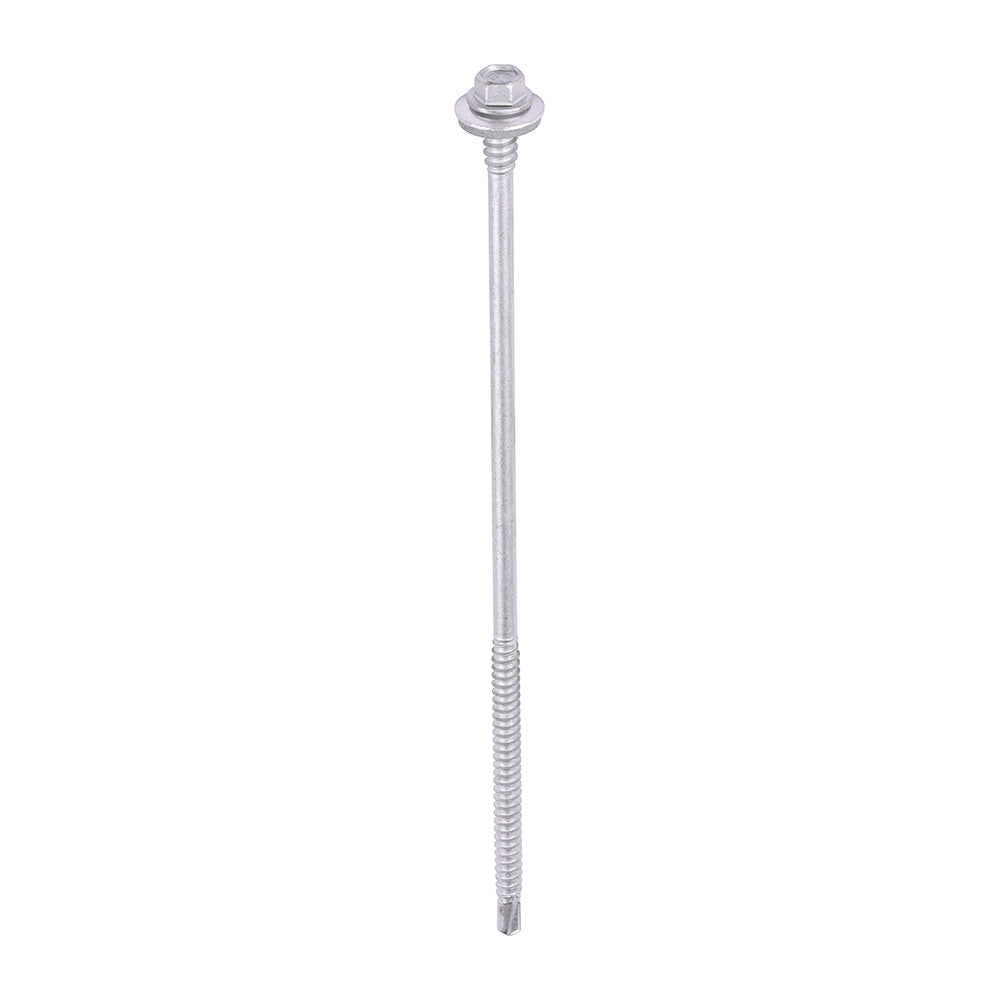

TIMCO Self-Drilling Light Section Composite Panel Exterior Silver Screws with EPDM Washer - 5.5/6.3 x 180 (50pcs)

TIMCO Self-Drilling Light Section Composite Panel Exterior Silver Screws with EPDM Washer - 5.5/6.3 x 180

Product Code: LH180W16B

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
• Diameter mm: 5.5 - 6.3
• Effective Thread Length mm: 56
• EPDM Washer mm: 16
• Feature 1: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12
• Head Height mm: 5.70
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 180
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 5.0
• Min Max Panel Thickness mm: 130 - 160
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 192 x 134 x 90
• Pack Quantity: 50
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.320
• Pallet Qty Packs: 192
• Point Type: Self-Drilling No.3
• Product Code: LH180W16B
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5/6.3 x 180
• SKU Barcode: 5056110873398
• Socket Size mm: 8
• Substrates: Composite Panel
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.5 - 6.3
• Thread Type: Dual 60° Self-Tapping
• Type: For Light Section Composite Panel
