TIMCO Self-Drilling Light Section Composite Panel A2 Stainless Steel Bi-Metal Screws with EPDM Washer - 5.5/6.3 x 70

TIMCO Self-Drilling Light Section Composite Panel A2 Stainless Steel Bi-Metal Screws with EPDM Washer - 5.5/6.3 x 70

Product Code: BMLH70W16

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 16
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere

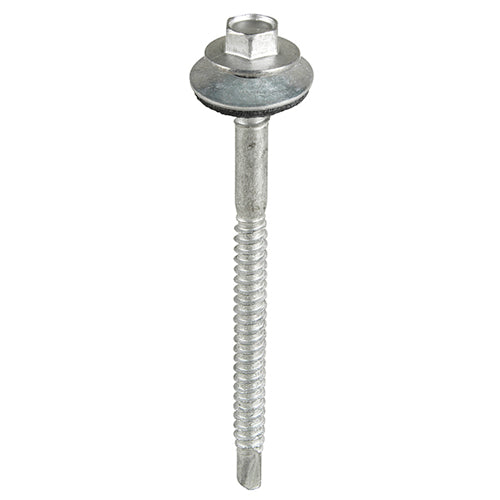

• Description: Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
• Diameter mm: 5.5 - 6.3
• Drill Tip Length mm: 8.50
• Effective Thread Length mm: 27
• EPDM Washer mm: 16
• Feature 1: Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.30
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 70
• Material: Bi-Metal/A2-304 Stainless Steel/Carbon Steel
• Max Drilling Thickness mm: 5.0
• Min Max Panel Thickness mm: 20 - 50
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 135 x 90 x 90
• Pack Quantity: 100
• Pack Quantity Unit: Pieces

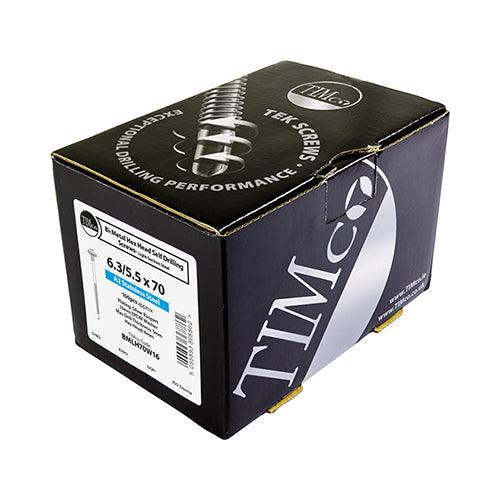

• Pack Type: Box
• Pack Weight kg: 1.234
• Pallet Qty Packs: 384
• Point Type: Self-Drilling No.3
• Product Code: BMLH70W16
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5/6.3 x 70
• SKU Barcode: 5055893368862
• Socket Size mm: 8
• Substrates: Composite Panel
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.5 - 6.3
• Thread Type: Dual 60° Self-Tapping
• Type: For Light Section Composite Panel
