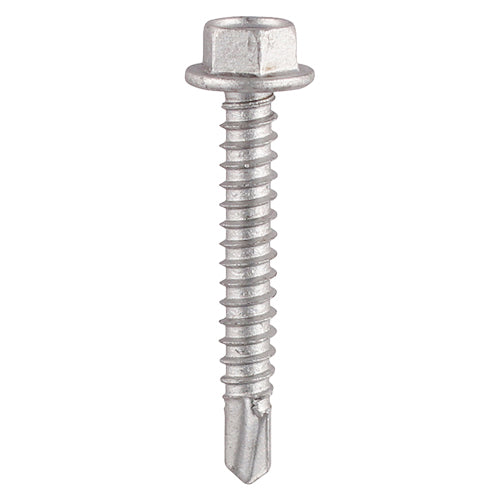

TIMCO Self-Drilling Light Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 100

TIMCO Self-Drilling Light Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 100

Product Code: BML100

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 16
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
• Diameter mm: 5.5
• Drill Tip Length mm: 8.50
• Effective Thread Length mm: 87
• Feature 1: Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 11.00
• Head Height mm: 5.30
• Head Type: Hex
• Length mm: 100
• Material: Bi-Metal/A2-304 Stainless Steel/Carbon Steel
• Max Drilling Thickness mm: 5.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 135 x 90 x 90
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.435
• Pallet Qty Packs: 384
• Point Type: Self-Drilling No.3
• Product Code: BML100
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5 x 100
• SKU Barcode: 5055893352106
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: 60° Self-Tapping
• Type: For Light Section Steel
