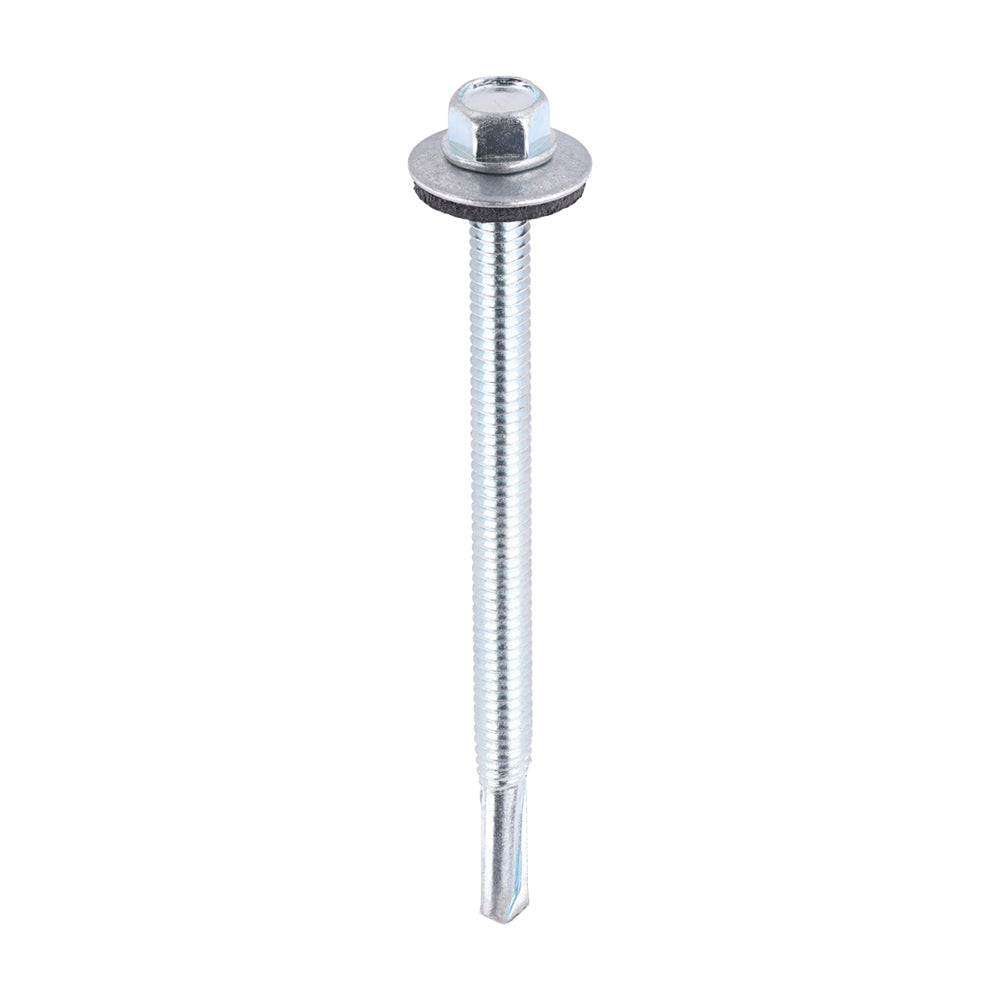

TIMCO Self-Drilling Heavy Section Silver Screws with EPDM Washer - 5.5 x 80

TIMCO Self-Drilling Heavy Section Silver Screws with EPDM Washer - 5.5 x 80

Product Code: ZH80W16

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 12
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. NOTE: Partially threaded.
• Diameter mm: 5.5
• Drill Tip Length mm: 15.50
• Effective Thread Length mm: 53 *P/T
• EPDM Washer mm: 16
• Finish: Zinc
• Fixed Washer Dia. mm: 11.00
• Head Height mm: 5.30
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 80
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 12.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 195 x 179 x 53
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Bag
• Pack Weight kg: 1.352
• Pallet Qty Packs: 432
• Point Type: Self-Drilling No.5
• Product Code: ZH80W16
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5 x 80
• SKU Barcode: 5055893325872
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.5
• Thread Type: Metric, *P/T = Partially Threaded
• Type: For Heavy Section Steel
