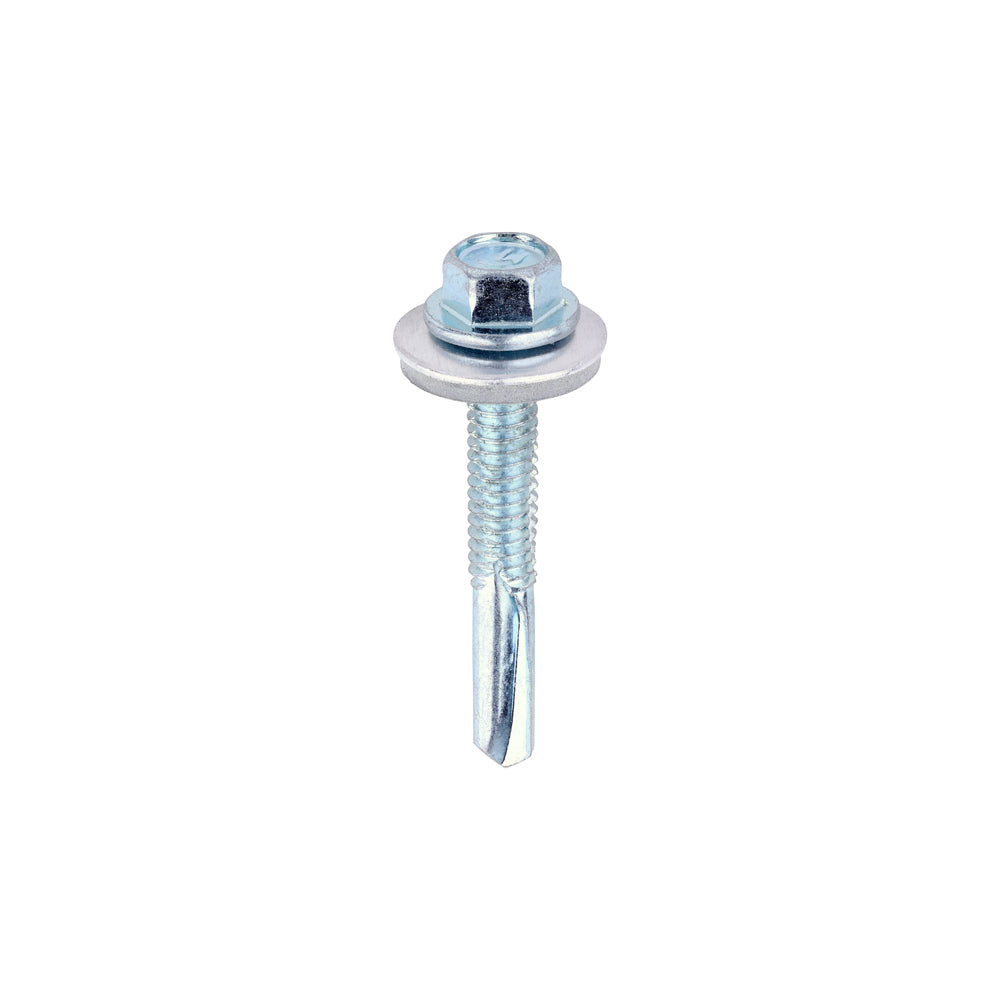

TIMCO Self-Drilling Heavy Section Silver Screws with EPDM Washer - 5.5 x 38

TIMCO Self-Drilling Heavy Section Silver Screws with EPDM Washer - 5.5 x 38

Product Code: ZH38W16B

Brand: TIMCO

Category: Screws

Product Specifications:

• Approval: BS EN 10666 (DIN 7504)
• Brand: TIMCO
• Carton Qty Packs: 15
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
• Diameter mm: 5.5
• Drill Tip Length mm: 15.00
• Effective Thread Length mm: 16
• EPDM Washer mm: 16
• Finish: Zinc
• Fixed Washer Dia. mm: 12.00
• Head Height mm: 5.60
• Head Type: Hex
• Included Items: 16mm EPDM Washers
• Length mm: 38
• Material: Case & Core Hardened Carbon Steel
• Max Drilling Thickness mm: 12.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 136 x 94 x 62
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.780
• Pallet Qty Packs: 540
• Point Type: Self-Drilling No.5
• Product Code: ZH38W16B
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5 x 38
• SKU Barcode: 5056110833729
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 5.5
• Thread Type: Metric with V Flutes & Torque Relieving Slash
• Type: For Heavy Section Steel
