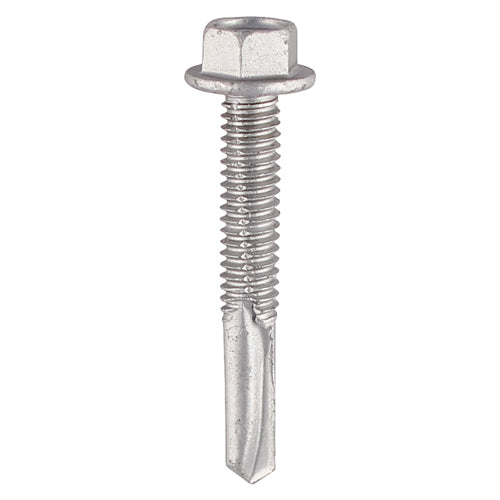

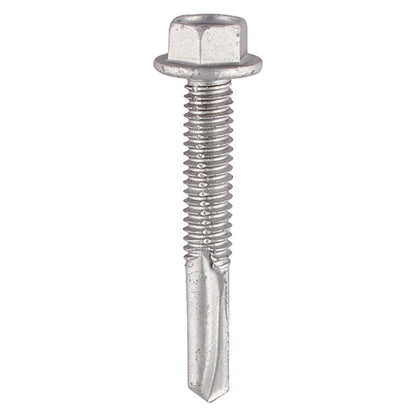

TIMCO Self-Drilling Heavy Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 38

TIMCO Self-Drilling Heavy Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 38

Product Code: BMH38

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 35
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
• Drill Tip Length mm: 17.00
• Effective Thread Length mm: 17
• Feature 1: Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 11.00
• Head Height mm: 5.30
• Head Type: Hex
• Length mm: 38
• Material: Bi-Metal/A2-304 Stainless Steel/Carbon Steel
• Max Drilling Thickness mm: 12.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 95 x 90 x 60

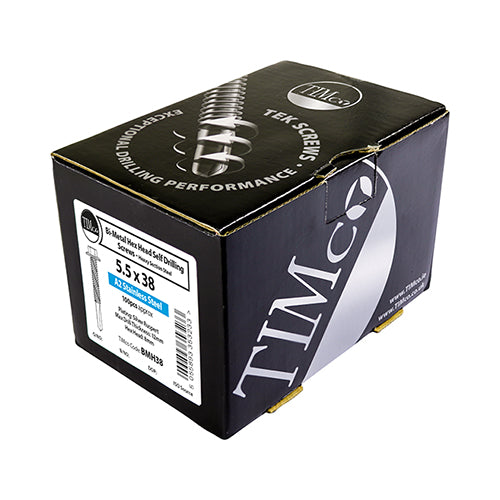

• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.651
• Pallet Qty Packs: 840
• Point Type: Self-Drilling No.5
• Product Code: BMH38
• Rec RPM: 1,000 - 1,800
• Size mm: 5.5 x 38
• SKU Barcode: 5055893353233
• Socket Size mm: 8
• Substrates: Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: M5.5
• Thread Type: Metric with V Flutes
• Type: For Heavy Section Steel
